5.1. Target Board Shorting Blocks: Factory Defaults

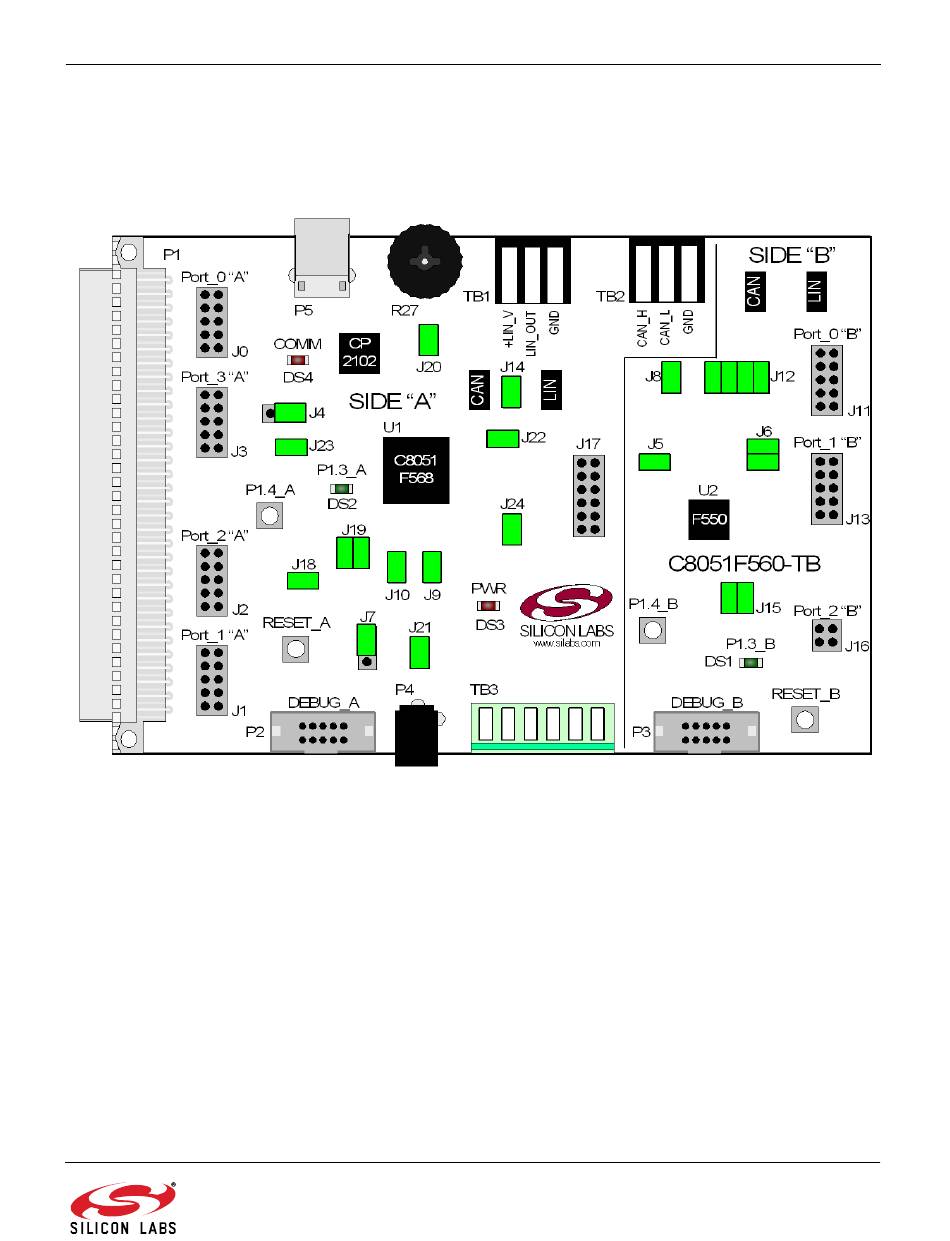

The C8051F560 Target Board comes from the factory with pre-installed shorting blocks on many headers. Figure 5
shows the positions of the factory default shorting blocks.
Figure 5. C8051F560 Target Board Shorting Blocks: Factory Defaults
Rev. 0.2
