T
S
C 8 0 5 1 F 3 3 0 D
O O L
TICK

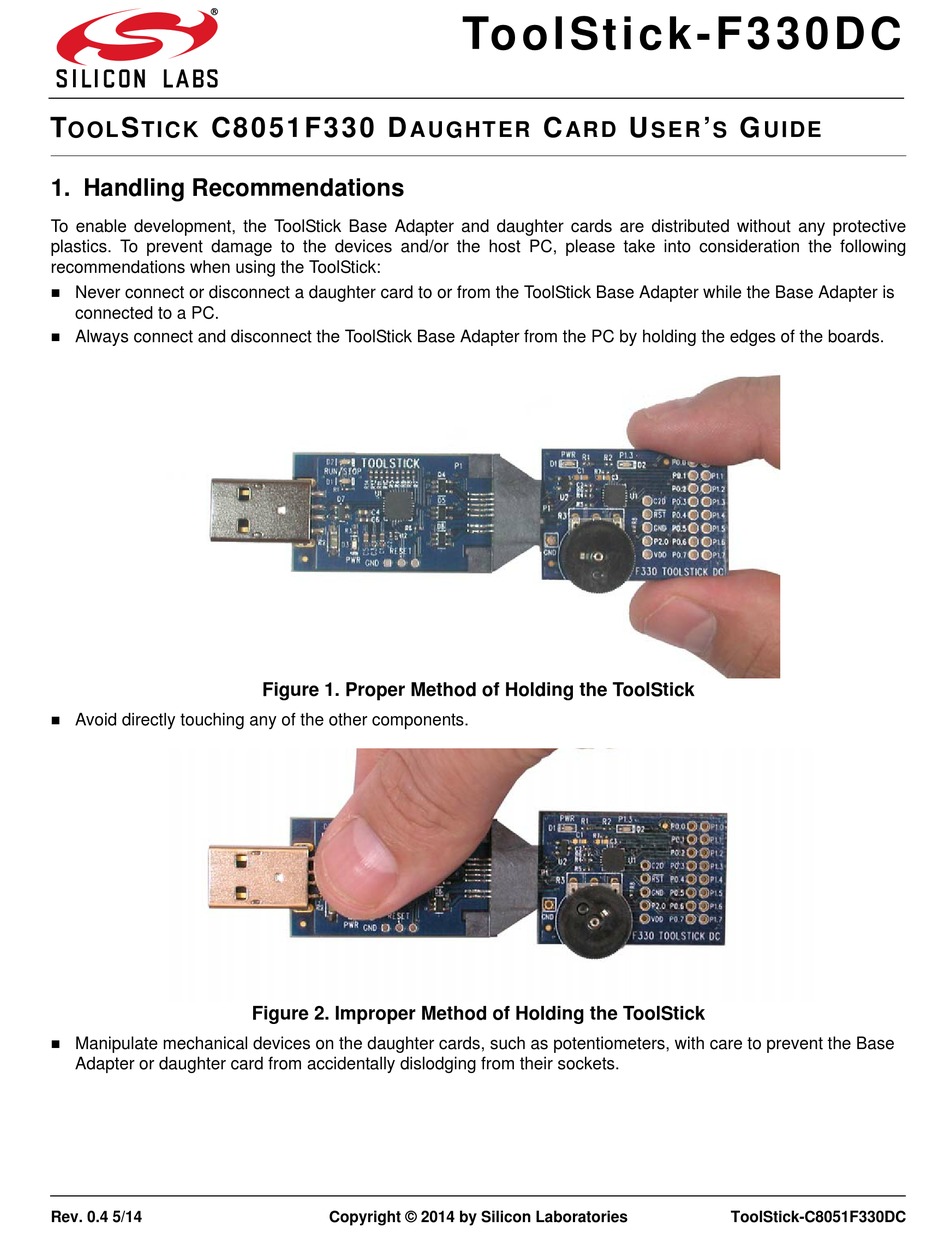

1. Handling Recommendations
To enable development, the ToolStick Base Adapter and daughter cards are distributed without any protective
plastics. To prevent damage to the devices and/or the host PC, please take into consideration the following
recommendations when using the ToolStick:
Never connect or disconnect a daughter card to or from the ToolStick Base Adapter while the Base Adapter is
connected to a PC.
Always connect and disconnect the ToolStick Base Adapter from the PC by holding the edges of the boards.
Avoid directly touching any of the other components.
Manipulate mechanical devices on the daughter cards, such as potentiometers, with care to prevent the Base
Adapter or daughter card from accidentally dislodging from their sockets.
Rev. 0.4 5/14
A U G H T E R
Figure 1. Proper Method of Holding the ToolStick
Figure 2. Improper Method of Holding the ToolStick
Copyright © 2014 by Silicon Laboratories
To o l Sti c k - F 3 3 0 D C
C
U
ARD
'
G
S E R
S
U I D E
ToolStick-C8051F330DC
Advertisement
Table of Contents
Related Manuals for Silicon Laboratories ToolStick-F330DC
Summary of Contents for Silicon Laboratories ToolStick-F330DC
- Page 1 Figure 2. Improper Method of Holding the ToolStick Manipulate mechanical devices on the daughter cards, such as potentiometers, with care to prevent the Base Adapter or daughter card from accidentally dislodging from their sockets. Rev. 0.4 5/14 Copyright © 2014 by Silicon Laboratories ToolStick-C8051F330DC...
-
Page 2: Toolstick Overview
Starter Kit, ToolStick Base Adapters can be purchased separately at www.silabs.com/toolstick. 3. ToolStick Overview The purpose of the ToolStick is to provide a development and demonstration platform for Silicon Laboratories microcontrollers and to demonstrate the Silicon Laboratories software tools, including the Integrated Development Environment (IDE). -
Page 3: Getting Started
ToolStick-F330DC 4. Getting Started The necessary software to download, debug and communicate with the target microcontroller must be downloaded from www.silabs.com/toolstick. The following software is necessary to build a project, download code to, and communicate with the target microcontroller: ... - Page 4 To olSti ck-F 33 0DC The following Simplicity Studio components are required for the C8051F330 ToolStick Starter Kit: 8051 Products Part Support Simplicity Developer Platform Download and install Simplicity Studio from www.silabs.com/simplicity-studio. Once installed, run Simplicity Studio ...
- Page 5 Search. 5.3. Configuration Wizard 2 The Configuration Wizard 2 is a code generation tool for all of the Silicon Laboratories devices. Code is generated through the use of dialog boxes for each of the device's peripherals. Figure 5. Configuration Wizard 2 Utility The Configuration Wizard 2 utility helps accelerate development by automatically generating initialization source code to configure and enable the on-chip resources needed by most design projects.
- Page 6 To olSti ck-F 33 0DC 5.4. ToolStick Terminal The ToolStick Terminal program provides the standard terminal interface to the target microcontroller's UART. However, instead of requiring the usual RS-232 and COM port connection, ToolStick Terminal uses the USB interface of the ToolStick Base Adapter to provide the same functionality. The software is available on the ToolStick webpage (www.silabs.com/toolstick).
-
Page 7: Board Revision Information
ToolStick-F330DC 6. Using the C8051F330 Daughter Card as a Development Platform The prototyping area on the ToolStick C8051F330 daughter card makes it easy to interface to external hardware. All of the digital I/O pins are available so it possible to create a complete system. - Page 8 To olSti ck-F 33 0DC 8. C8051F330 Daughter Card Schematic Rev. 0.4...
-
Page 9: Document Change List
ToolStick-F330DC OCUMENT HANGE Revision 0.1 to Revision 0.2 Added Section "7. Board Revision Information‚" on page 7. Revision 0.2 to Revision 0.3 Added ToolStick Terminal, Configuration Wizard 2, and Keil uVision drivers to Section “5. Software Overview”. ... - Page 10 The products must not be used within any Life Support System without the specific written consent of Silicon Laboratories. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death.
