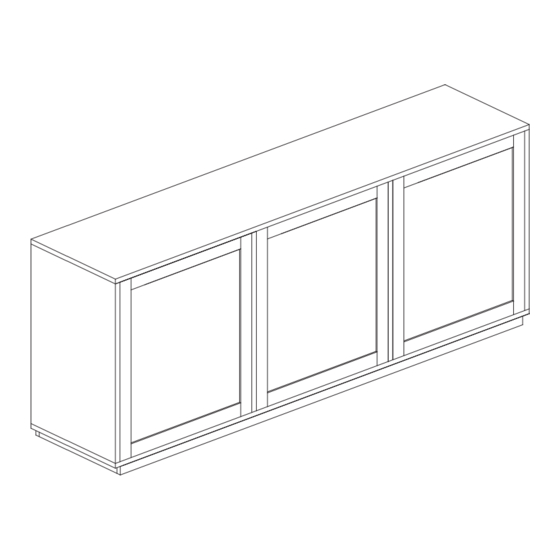

Eros Buffet
Thank you for your purchase.
Please follow the instructions below for correct assembly.
D
A
B
C
14 x
14 x
32 x
8 x
long
bolt
locking
dowel
screw
nut
G
H
I
6 x
11 x
3 x
Hinge
long screw
Push to
open system

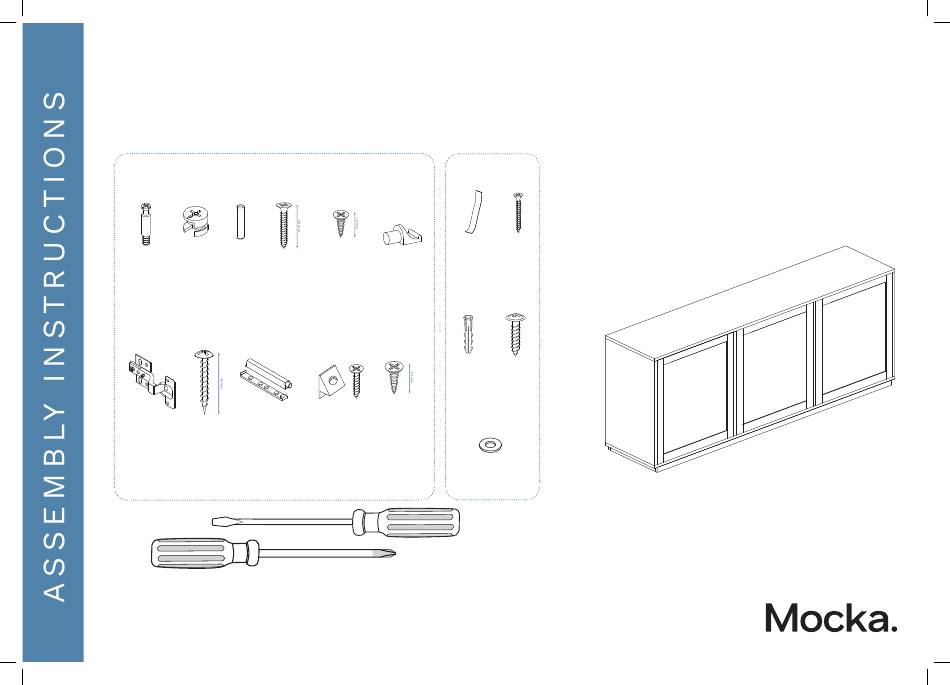

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
F
W
E
1 x
safety
strap
screw
6 x
12 x
small
Shelf
X
screw
plug
J
K
1 x
wall
screw
anchor
Z
8 x
36 x
wedge
small
screw
1 x
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
Y
1 x
Advertisement
Related Manuals for Mocka Eros Buffet
Summary of Contents for Mocka Eros Buffet
- Page 1 Eros Buffet Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
- Page 2 Eros Buffet Attach 3 x push to open systems (I) to panel [1], secure with 6 x small Insert 8 x dowels (C) into panels [3], [4], [5] and [6]. Attach panels [3], [4], [5] and [6] screws (E). Insert 8 x bolts (A) into panel [1]. Attach 1 x wall strap (W) to panel [1] and secure with 8 x locking nuts (B).
- Page 3 Eros Buffet Insert 8 x dowels (C) into panels [3], [4], [5] and [6]. Attach panel [2] to panels Slide panels [7] and [8] between the grooves on panels [3], [4], [5] and [6] to [3], [4], [5] and [6], securing with 8 x long screws (D).
- Page 4 Eros Buffet Panel piece x 2 Insert 12 x dowels (C) to panels [11] and attach panels [10]. Insert 6 x locking nuts (B) into panels [11]. Tighten with a screwdriver. Attach 6 x bolts (A) into panels [10]. Tighten with a screwdriver.
- Page 5 Eros Buffet Panel x 3 Insert 4 x dowels (C) into panels [10] and [11]. Attach panels [10] and [11] to Attach 6 x hinges (G) to panels [9] and secure with 12 x small screws (K). panel [2] and secure with 11 x long screws (H). Tighten with a screwdriver.
- Page 6 Eros Buffet NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the hinge until they are sittng flush. Attach panels [9] to panels as shown. Secure with 24 x screws (K).
- Page 7 Eros Buffet Insert 12 x shelf plugs (F) to panels [3], [4], [5] and [6]. Attached panels Attach 12 x wedges (J) to panels [7] and [8]. Tighten woth a screwdriver. [12] to panels [3], [4], [5] and [6] as shown.
- Page 8 Eros Buffet Strap Washer Wall anchor Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using wall anchor (X), washer (Z) and screw.
