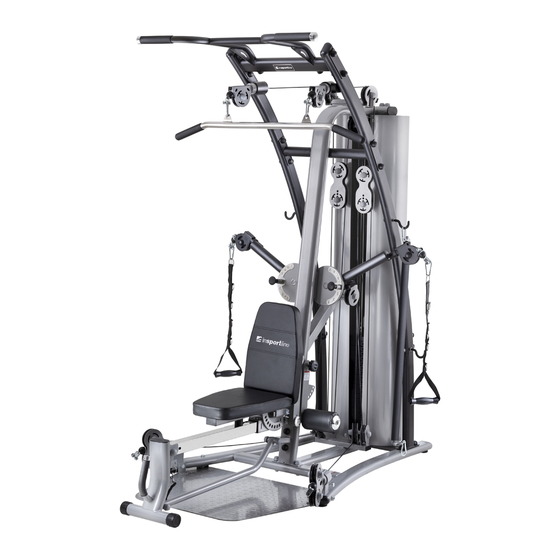

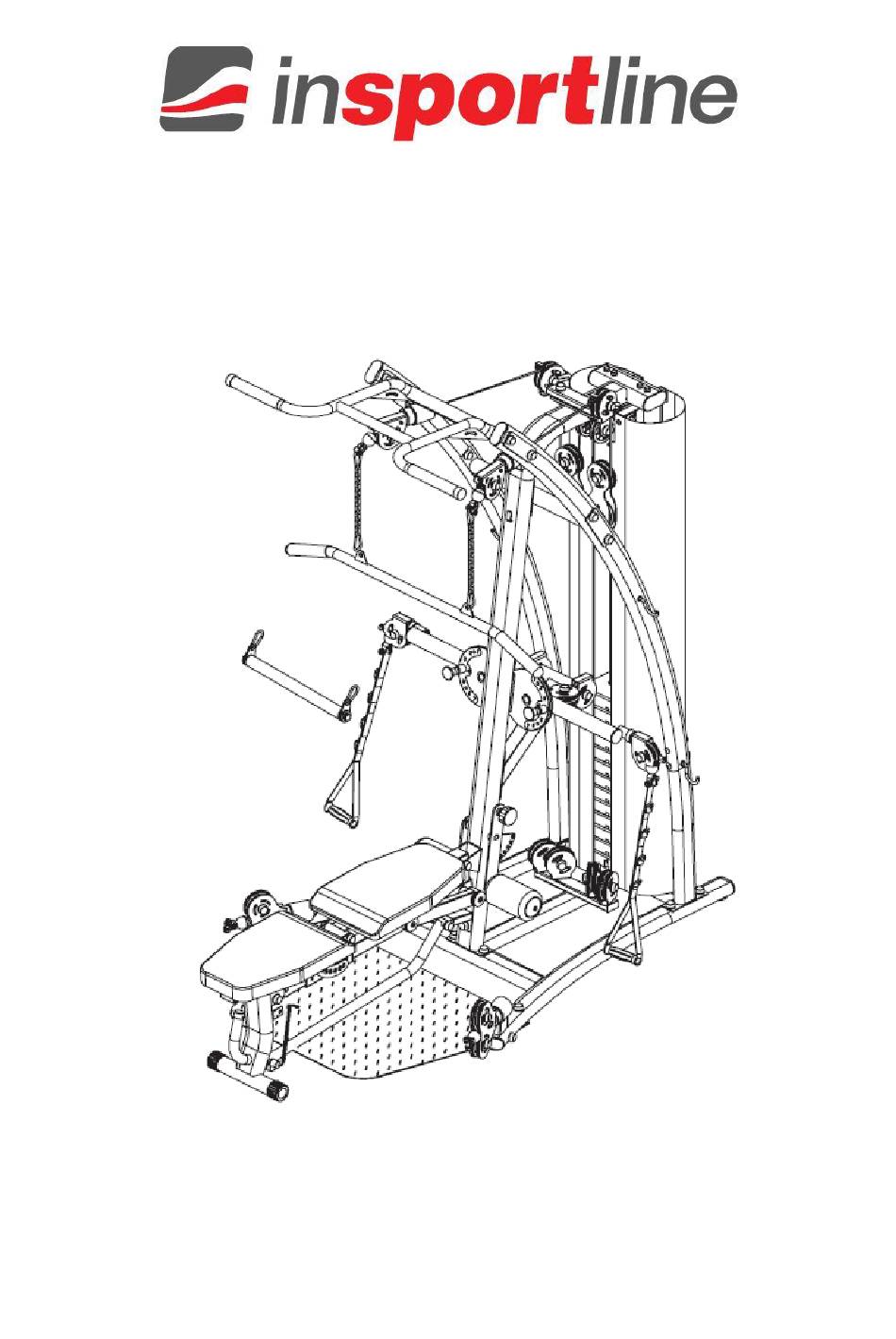

- Page 1 USER MANUAL – EN IN 20787 Multi-Gym inSPORTline Profigym C200...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PASTS LIST ............................4 ASSEMBLY MATERIAL ........................6 ASSEMBLY ............................. 7 STEP 1 ..............................7 STEP 2 ..............................8 STEP 3 ............................... 10 STEP 4 ............................... 12 STEP 5 ............................... 13 STEP 6 ............................... 14 STEP 7 ............................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Thank you for purchasing this product. Please read the manual carefully before starting the assembly and before using the product. Keep this manual for future reference. In case of doubt, contact a specialist service. • Before finishing the assembly, check all parts for completeness and integrity. Use only original spare parts and accessories. -
Page 4: Pasts List
PASTS LIST Name Specifications Qty. Base Footplate Φ12 Washer Hexagon bolt M12x100 End cap Hexagon bolt M12x55 Guiding rod Φ10 Flat washer Hexagon bolt M10x20 Weight Pulley frame Hexagon bolt M8x40 Φ8 Arc washer Φ60xΦ26x42 Rubber cushion Weight stack pin Selector rod Φ10x100 Magnetic pin... - Page 5 Chin up bar Hexagon bolt M12x65 Reinforcing plate t4.0x50x160 Connection frame Hexagon bolt M12x30 Butterfly arm – left Φ10 Big washer Butterfly arm – right Pulley holder Butterfly arm plate Pulley frame Leg press frame Leg press frame Stop collar Screw M8x10 Cable...
-
Page 6: Assembly Material
Ship bar long Triceps rope ASSEMBLY MATERIAL... -
Page 7: Assembly
ASSEMBLY STEP 1 Name Specifications Qty. Base Footplate Φ12 Washer Hexagon bolt M12x100 End cap Hexagon bolt M12x55 Attach the footrest (2) to the base (1) with 2x bolts (7), 2x washers (3), 2x plastic caps (6), and with 2x bolts (5), 4x washers (3), 2x nuts (4) and 4x plastic the caps (6). -
Page 8: Step 11
STEP 2... - Page 9 Name Specifications Qty. Guide rods Φ10 Flat washer Hexagon bolt M10x20 Weight Pulley frame Hexagon bolt M8x40 Φ8 Arc washer Φ60xΦ26x42 Rubber cushion Weight stack pin Selector rod Φ10x100 Magnetic pin...
-
Page 10: Step 12
Attach the guide rods (8) and the rubber cushions (16) to the lower frame with 2x bolts (10) and 2x washers (9). Slide the weights (11) through guides rods (8). Insert the weight selection rods (18) into the weights and insert the pin (17) to the top weight and magnetic pin (19) to required resistance. Attach the pulley frame (12) to the selection rods (18) with 2x bolts (13),4x washers (14) and 2x nuts (15) according to picture. - Page 11 Φ10 Flat washer Upper frame Hexagon bolt M12x45 Φ12 Flat washer Cover holder Hexagon bolt M10x70 Top pulley frame Hexagon bolt M10x60 Φ10 Washer Attach the pulley frame (26) to the upper frame (20) with 2x bolts (27),4x washers (28), 2x nuts (25) and 4x plastic caps (6).
-
Page 12: Step 13
STEP 4 Name Specifications Qty. Φ12 Washer End cap Hexagon bolt M12x45 Φ12 Flat washer Φ10 Washer Bend frame – left Bend frame – right Φ8 Washer Hooks Connection frame Bolt M10x20... -
Page 13: Step 14
Attach the right bent frame (30) to the connection frame (33) with 4x bolts (34), 4x washers (28) and 4x end caps (6). Attach the hooks (32) to the frame (30) with the 2x nuts (15) 2x washers (31) and 2x end caps (6). Attach the frame (30) to the main frame with 2x bolts (21), 2x washer (22 and 3), 2x nuts (4) and 2x end caps (6). - Page 14 End cap Chin up bar Hexagon bolt M12x65 Reinforcing plate t4.0x50x160 Connection frame Hexagon bolt M12x30 Attach the connection frame (39) to the main frame with 2x bolts (40), 2x washer (3) and 2x end caps (6). Connect the connection frame (39) to the bent frame with 4x bolts (37),8x washer (3),2x reinforcement plates (38), 4x nuts (4) and 8x end caps (6).
- Page 15 Name Specifications Qty. Φ12 Washer End cap Bolt M10x20 Hexagon bolt M12x30 Butterfly arm – left Φ10 Big washer Butterfly arm – right Pulley holder Butterfly arm plate Attach the arm support plate (45) to the main frame with 4x bolts (40), 4x washers (3) and 4x end caps (6).
- Page 16 STEP 7 Name Specifications Qty. Bolt M10x20 Φ10 Big washer Pulley frame Leg press frame Leg press frame Stop collar Screw M8x10 Attach the pulley bracket (46) to the main frame with the 2x collars (46) and 4x bolts (50). Attach the leg press frames (47 and 48) to the main frame with screw (50) and washer (42).
- Page 17 STEP 8 Name Specifications Qty. Cable Pulley holder Disassemble the cable end (51) and route the cable from point A through points: B, C, D, E, F, G, H, I, J, K and through the double pulley bracket (52). Then attach the cable end.
- Page 18 STEP 9 Name Specifications Qty. Cable Disassemble the cable end (53) and pull the cable from point O through the points: P, Q, R, S, T, U and then reattach the cable end. Repeat for other side.
- Page 19 STEP 10 Name Specifications Qty. End cap Φ10 Washer Connection plate Right cover Screw M8x16 Φ8 Washer Left cover Screw M10*65...
- Page 20 Attach the connecting plate (35) with 2x bolts (69), 4x washers (28), 2x nut (25) and 4x end caps (6). Attach the covers (54 and 57) with 8x bolts (55) and 8x washer (56). STEP 11 Name Specifications Qty. End cap Φ10 Washer Seat...
- Page 21 STEP 12 Name Specifications Qty. Bolt M10x20 Backrest support End cap Attach the headrest supports (63) using the 4x end caps (64) and 4x bolts (34). Make sure all parts are properly attached and lubricated.
- Page 22 STEP 13 Name Specifications Qty. Φ12 Washer End cap Hexagon bolt M10x70 Φ10 Washer Connection frame Hexagon bolt M12x75 Front beam Attach the front support (68) to the seat frame (60) with the bolt (24), washer (28), nut (25) and 2x plastic end caps (6).
- Page 23 STEP 14 Name Specifications Qty. Φ12 Washer End cap Hexagon bolt M10x20 Φ10 Washer Hexagon bolt M12x75 Φ15.9x76.5 Shaft Attach the saddle frame to the top frame (20) with 2x bolts (10), shaft (67),2x washers (3) and 2x end cap cover (6). Connect connection frame (65) to the bottom part of top frame (20) with bolt (20), 2x washers (3), nut (4) and 2x end caps (6).
-
Page 24: Exercise Instructions
EXERCISE INSTRUCTIONS Exercise is beneficial to your health, improves physical condition, shapes muscles and, in combination with a calorie-balanced diet, leads to weight loss. 1. WARM UP This phase serves to improve the blood circulation of the whole body and to warm up the muscles, to reduce the risk of convulsions and muscle injury. -
Page 25: Maintenance
Stretching your muscles after exercise is extremely important - you need to avoid sudden movements and vibrations. With improved fitness, you can lengthen and increase exercise intensity. Train regularly, at least three times a week. SHAPING MUSCLES For muscle shaping, it is important to set a high load. The muscles will be more stressed, which may cause that you will not be able to exercise as long as usual. - Page 26 otherwise specified in the Purchase Agreement, in the Amendment to this Contract or in another written agreement. Warranty Conditions Warranty Period The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected.
- Page 27 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
