Summary of Contents for Insportline Velocer CSP 120

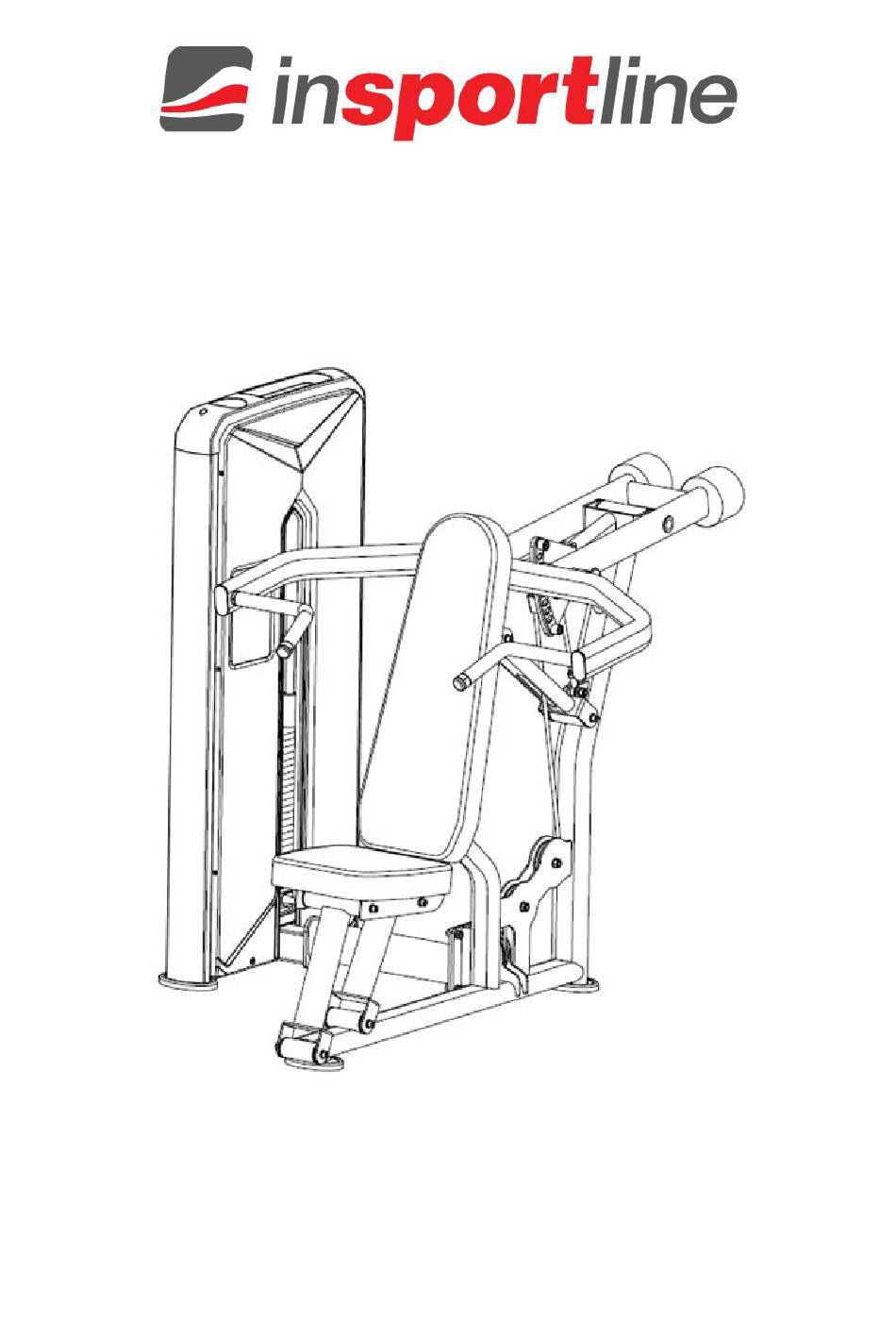

- Page 1 USER MANUAL – EN IN 27710 Chest and shoulder press inSPORTline Velocer CSP 120...
-
Page 2: Safety Instructions
SevenSport s.r.o. reserves the right to make any changes and improvements to its product without prior notice. Visit our website www.insportline.eu where you will find the latest version of the manual. SAFETY INSTRUCTIONS • Before use and assembly, read the manual and keep the manual for future reference. - Page 3 DRAWING...
-
Page 4: Parts List
PARTS LIST Name Qty. Name Qty. Rotary shaft φ20*190 Weight frame Rotary shaft φ20*178 Main frame Seat frame 1 Compression spring Seat frame 2 Fork pin Seat holder Magnetic bolt with cable Backrest frame Bearing 6204-2RS Connecting frame Joint bearing Adjustable frame Weight Handrail frame... - Page 5 Handle cover ASSEMBLY Step 1 Attach the connecting frame (10) to the weight frame (1) with bolts (24), washers (31), and nuts (28). Attach the connecting plate (12) to the connecting frame (10) and weight frame (1) using bolts (13), washers (30) and nuts (27).
- Page 6 Step 2 Pull the cable (64) as shown. Attach pulleys (63) to frame (1) with bolts (17), washers (30), and nuts (27). Attach the bottom pulley (63) to the frame (1) with the bolt (19) and washer (34).
- Page 7 Step 3 Attached in order to the frame (1): stoppers (62), guide bar (47), weights (44) and guide plate (45). Fasten the guide rod (47) to the frame (1) with the clips (52). Fasten the magnetic bolt with cable (41) through the weight (44) into the weight rod (48). Then connect the cable (41) to the steel cable (64).
- Page 8 Step 4 Unscrew the pre-installed bolts (14), washers (33 and 31) from the frame (8). Attach the frame (9) to the main frame (2) using the bolts (14), washers (33 and 31) removed in the previous step. Pull out the pin (40) and then use the pin (40) to secure the frames (8 and 9). Attach the balance weight (11) to the frame (9) using bolts (21).
- Page 9 Step 5 Pull the cable (64) as shown. Attach the pulleys (63) to the corresponding positions on the frame (2) using bolts (17), washers (30), and nuts (27). Attach the pulley (63) to the frame (8) with bolt (18) and nut (27). Attach the cable (64) in the joint bearing (43).
- Page 10 Step 6 Attach the covers (53, 54, 56) to the frame (1) with bolts (25).
-
Page 11: Maintenance
Step 7 Attach the seat (58) to the frame (5) using bolts (20) and washers (32). Attach the backrest (57) to the frame (6) using bolts (20) and washers (32). MAINTENANCE • Regularly lubricate all moving parts. • Check and tighten all connections. •... - Page 12 This phase serves to improve the blood circulation of the whole body and to warm up the muscles, to reduce the risk of convulsions and muscle injury. We recommend performing the stretching exercises below. When dragging, stay in the end position for approximately 30 seconds, do not make sudden movements and do not vibrate.
-
Page 13: Environment Protection
The number of calories burned depends on the length and intensity of the exercise. The essence is the same as in fitness exercise, but the goal is different. ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard. - Page 14 Seller is obliged to provide the Buyer with a financial compensation in the form of a refund. SEVEN SPORT s.r.o. Stores inSPORTline SK, s.r.o. Strakonická 1151/2c, Praha 5, 150 00, ČR Headquaters, warranty & service center: Električná 6471, Registered Office: Dělnická...
