Insportline CF20 User Manual

USER MANUAL – EN

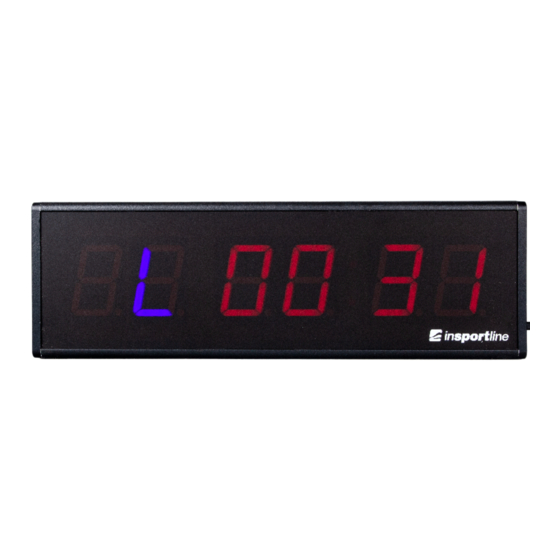

IN 23518 Time board inSPORTline CF20

Product description:

6-digit, 1.8-inch LED display
Matt aluminum cover
Power supply via DC5V / 2A source
The controller is powered by 2x AAA batteries and with sound signals.

Function:

Clock:

Press "Clock" to display the time.
Press "24Hrs" or "12Hrs" to display the time in 24 or 12 format.
24-hour format 12-hour format
Press "EDIT" to set the time: Use the arrows to select the value that will flash and use the numbers to
set the time.
After setting the time, press "EDIT" again to save and exit the setting, or "EXIT" to exit the setting
without saving.

Interval:

Press "INT" to set the interval mode.
Blue numbers are for setting repetitions or laps (max. Value 99), red numbers are for training or rest
time (max. Value 99 min 59 seconds)
Press "EDIT" to set a new interval (2 blue numbers)
Press "EDIT" again to set the training time. Use the arrows to select the value that will flash and use
the numbers to set the time. (4 red numbers)
Press "EDIT" again to set the rest. Use the arrows to select the value that will flash and use the
numbers to set the time. (4 red numbers)
Training time Rest time
