USER MANUAL – EN
IN 20770 Optional accessories for ProfiGym C400 - Leg
Press

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20770 and is the answer not in the manual?

Questions and answers

Related Manuals for Insportline 20770

Summary of Contents for Insportline 20770

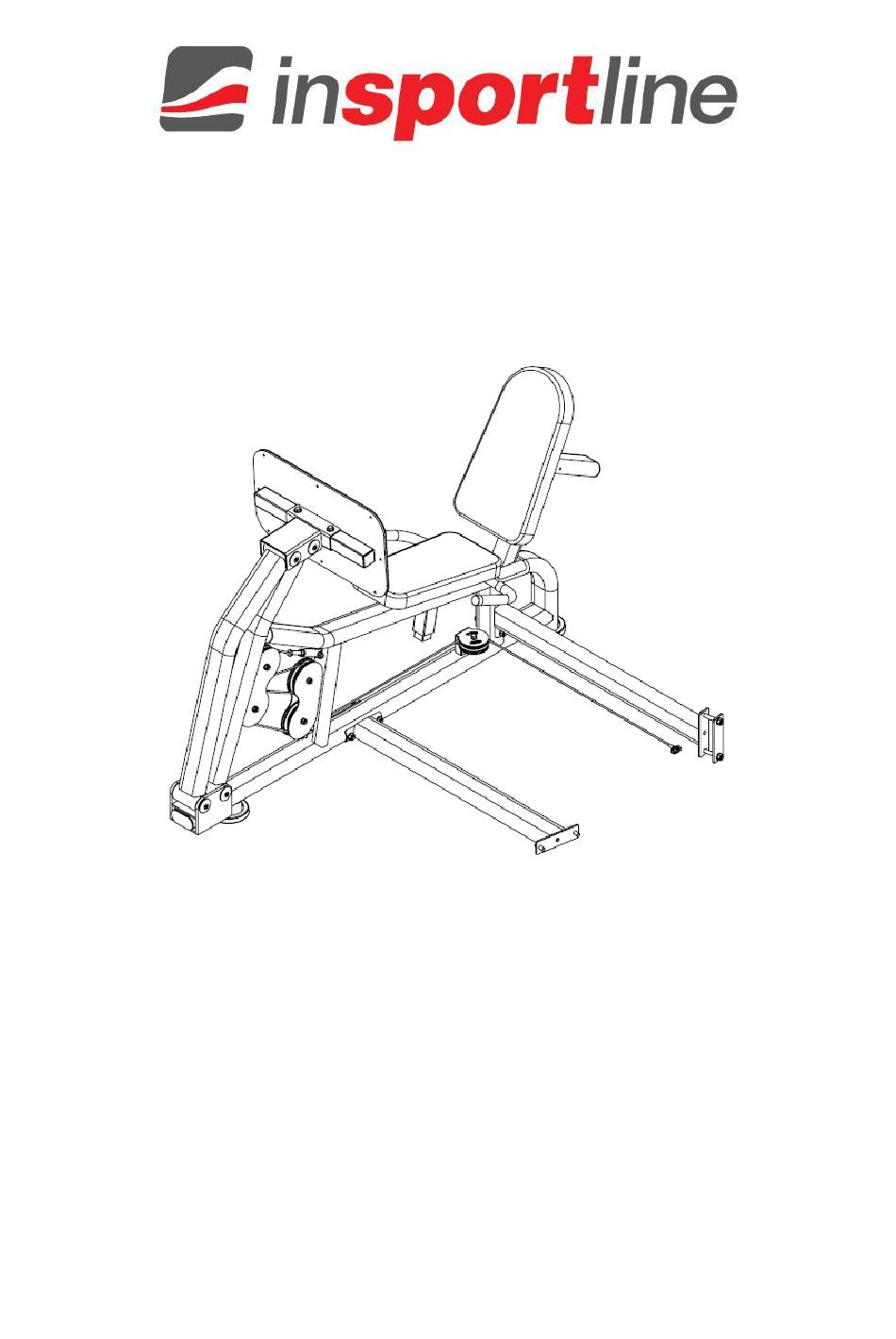

  • Page 1 USER MANUAL – EN IN 20770 Optional accessories for ProfiGym C400 - Leg Press...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ........................3 PARTS LIST ............................4 ASSEMBLY ............................. 7 STEP 1 ..............................7 STEP 2 ..............................8 STEP 3 ..............................9 STEP 4 ............................... 10 STEP 5 ............................... 12 STEP 6 ............................... 13 EXERCISE INSTRUCTIONS ........................ 13 MAINTENANCE ............................

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS • Thank you for purchasing this product. Please read the manual carefully before starting the assembly and before using the product. Keep this manual for future reference. In case of doubt, contact a specialist service. • Before finishing the assembly, check all parts for completeness and integrity. Use only original spare parts and accessories.

  • Page 4: Parts List

    PARTS LIST Name Specification Qty. ø10 Washer ø8 Washer ø10 Spring safety knob ø12 Washer Hexagon bolt M10x25 ø25x10x2.0 Big washer Hexagon bolt M10x45 ø95x26 Pulley Hexagon bolt M10x75 ø8 Spring washer ø120 Feet pad Oval tube plug 50-100 Reduction sleeve 50-40L Hexagon bolt Mx16...
  • Page 5 Hexagon bolt M10x50 ø127x28 Big pulley Cable 3255 mm Hexagon bolt M8x20 Hexagon bolt M8x70 Adjustable seat frame Seat Handles Hexagon bolt M8x25 Adjustable backrest frame Backrest Oval reduction frame 50-100 ø42x ø32x26 Rubber washer Plug 50x50x2.0 Bolt M6x10 Footplate Bearings 6005 ø25...

  • Page 7: Assembly

    ASSEMBLY STEP 1 Name Specification Qty. ø12 Washer Main frame Front connection frame Rear connection frame Connection plate Arc connection plate ø12 Spring washer Hexagon bolt M12x30 Hexagon bolt M12x80 Hexagon bolt M12x125 Attach the front connection frame (126) to the base with 2x bolts (131) and 2x washers (130 and 20). Attach the rear connection frame (127) with 2x bolts (132), 4x washers (20), 2x nuts (21), and connection plate (128).

  • Page 8: Step 2

    STEP 2 Name Specification Qty. Support frame - 1 Support frame - 2 ø25x125 Shaft Plug Hexagon bolt M10x25 Attach the support frame (134) to the main frame with the shaft (136), 2x plugs (137) and 2x bolts (138). Attach the support frame (135) to the main frame with the shaft (136), 2x plugs (137) and 2x bolts (138).

  • Page 9: Step 3

    STEP 3 Name Specification Qty. ø25x10x2.0 Big washer Hexagon bolt M10x75 Plug Hexagon bolt M10x25 ø25x125 Shaft Bracket Footplate tube Attach the bracket (140) to the support frame - 1 using the shaft (139), 2x plugs (137) and 2x bolts (138).

  • Page 10: Step 4

    STEP 4...
  • Page 11 Name Specification Qty. ø10 Washer ø12 Washer Hexagon bolt M10x25 Hexagon bolt M10x45 ø95x26 Pulley Hexagon bolt M10x50 ø127x28 Big pulley Cable 3255 mm Hexagon bolt M10x40 Adjustable cable sleeve Attach the flat end to the cable using bolt (30), 2x washers (5) and nut (23) as shown in Figure 1. Pull the cable (144) from point A through points B, C, D, E, F.

  • Page 12: Step 5

    STEP 5 Name Specification Qty. ø8 Washer ø10 Spring safety knob ø8 Spring washer Hexagon bolt M8x20 Hexagon bolt M8x70 Adjustable seat frame Seat Handles Attach the handle (149) to the frame (147) with 2x bolts (146), 4x washers (15) and 2x nuts (11). Attach the seat (148) to the frame (147) with 4x bolts (145), 4x washer (72) and 4x washers (15).

  • Page 13: Step 6

    STEP 6 Name Specification Qty. ø8 Washer ø10 Spring safety knob ø8 Spring washer Hexagon bolt M8x20 Hexagon bolt M8x25 Adjustable backrest frame Backrest Attach the backrest (152) to the frame (151) with 4x bolts (145), 4x washers (72 and 15). Slide the frame (151) into the main frame using the knob (18).
  • Page 14 This phase serves to improve the blood circulation of the whole body and to warm up the muscles, to reduce the risk of convulsions and muscle injury. We recommend performing the stretching exercises below. When dragging, stay in the end position for approximately 30 seconds, do not make sudden movements and do not vibrate.

  • Page 15: Maintenance

    For muscle shaping, it is important to set a high load. The muscles will be more stressed, which may cause that you will not be able to exercise as long as usual. If you are trying to improve your condition at the same time, you need to adjust your training.
  • Page 16 The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected. By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features.
  • Page 17 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...

This manual is also suitable for:

Profigym c400
