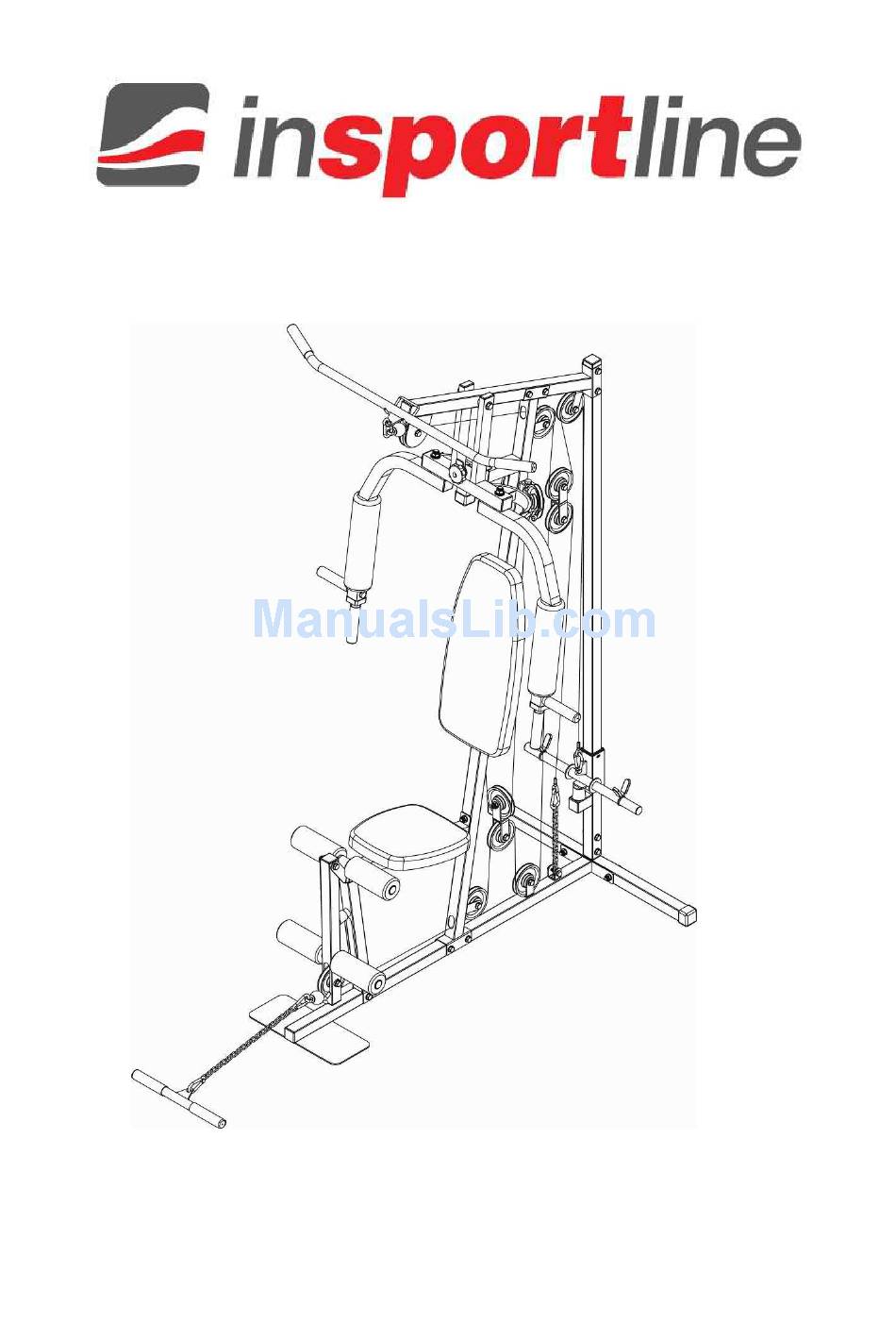

- Page 1 USER MANUAL - EN IN 7185 Home gym inSPORTline Profigym N10...
-
Page 2: Parts List Drawings
PARTS LIST DRAWINGS... - Page 3 PARTS LIST DRAWINGS...
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1： ： ： ： 1. Attach the Front Base Frame (2) to the Rear Base Frame (1), using two M10X60mm Hex Bolts (54), four M10 Washers (62) and two M10 Nylon Nuts (66). 2. Attach the Weight Guide Frame (3) to the Rear Base Frame (1), using two M10X50mm Hex Bolts (55), four M10 Washers (62) and two M10 Nylon Nuts (66).
- Page 5 ASSEMBLY INSTRUCTIONS STEP 2： ： ： ： 1. Attach the Support Frame (8) to the Front Base Frame (2), using two M10X60mm Hex Bolts (54), four M10 Washers (62) and two M10 Nylon Nuts (66). 2. Attach the Upper Cross Beam (9) to the Support Frame (8) and the Weight Guide Frame (3), using four M10X60mm Hex Bolts (54), eight M10 Washers (62) and four M10 Nylon Nuts (66).
- Page 6 ASSEMBLY INSTRUCTIONS STEP 3： ： ： ： 1. Attach the Front Support Frame (4) to the Front Base Frame (2), using one M10X60mm Hex Bolt (54), two M10 Washers (62) and one M10 Nylon Nut (66). 2. Attach the Seat Base Frame (7) to the Support Frame (8) and the Front Support Frame (4), using three M10X60mm Hex Bolts (54), six M10 Washers (62) and three M10 Nylon Nuts (66).
- Page 7 ASSEMBLY INSTRUCTIONS STEP 4： ： ： ： 1. Attach the Back Cushion (22) to the Support Frame (8), using two M8X50mm Hex Bolts (58) and two M8 Washers (63). 2. Attach the Seat Cushion (21) to the Seat Base Frame (7), using four M8X15mm Hex Bolts (60) and four M8 Washers (63).
- Page 8 ASSEMBLY INSTRUCTIONS STEP 5： ： ： ： NOTE: Oil Bushing (small) (31) have been Pre-assembled into the Upper Cross Beam (9). 1. Attach the Press Bar (10) to the Upper Cross Beam (9), using one M12X120mm Hex Bolt (52), two M12 Washers (61) and one M12 Nylon Nut (65). 2.
- Page 9 ASSEMBLY INSTRUCTIONS...
- Page 10 ASSEMBLY INSTRUCTIONS...
- Page 11 ASSEMBLY INSTRUCTIONS STEP6: 1. Start with the Upper Cable (short) (27). a.) With Upper Cable (27) in groove of Pulley (26) through Upper Cross Beam (9). b.) Install Pulley NO.1 (26) to Upper Cross Beam (9), using one M10X45mm Hex Bolt (56), two M10 Washers (62) and one M10 Nylon Nut (66).
-
Page 12: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM...
