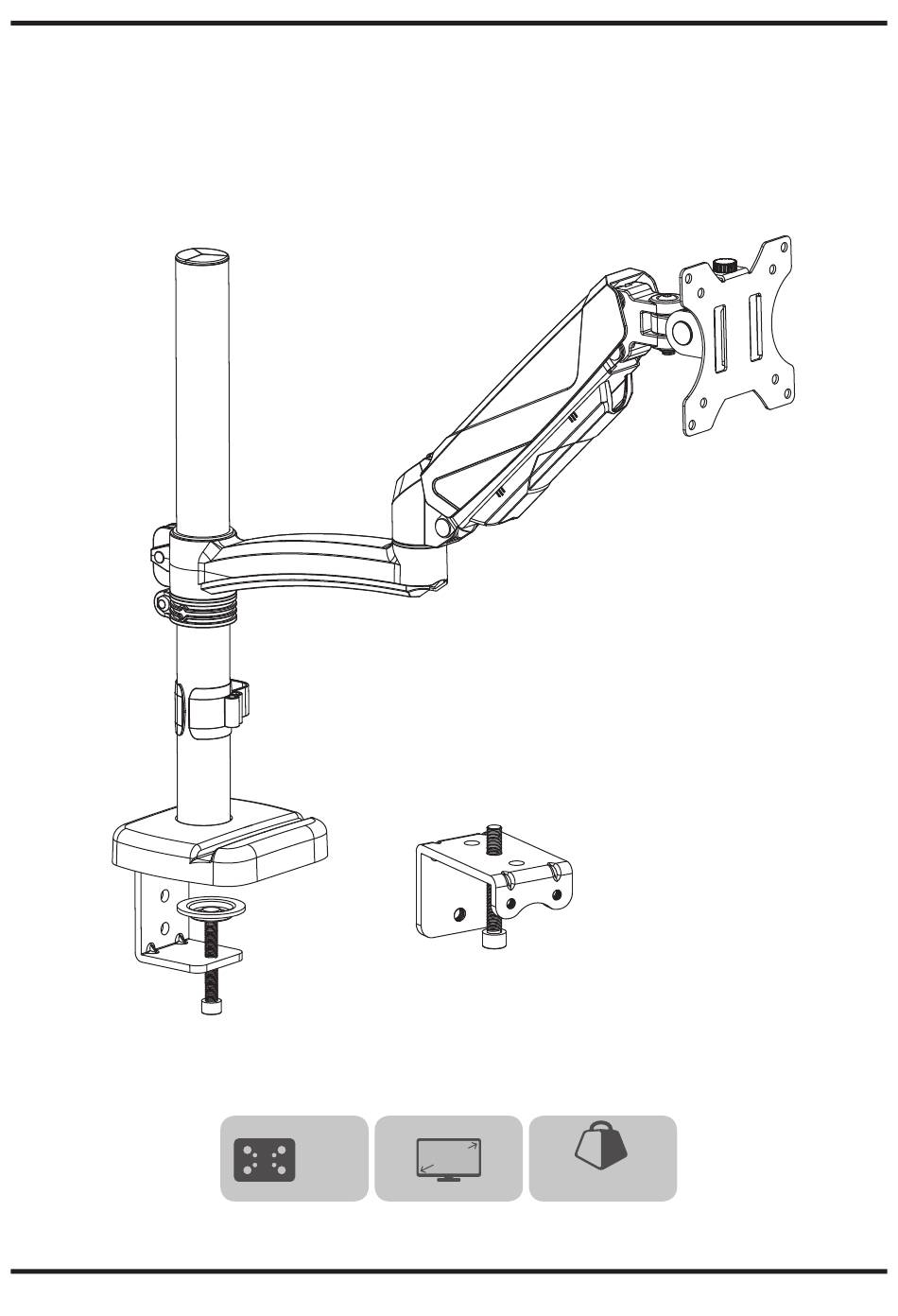

- Page 1 Height Adjustable Single Monitor Desk Mount Instruction Manual 75x75 32" 100x100 (2~9kg) (4.4~19.8lbs) If you have any questions, please feel free to contact our customer service via Amazon. AHP-21-US1.0...
-
Page 2: Package Contents
WARNING! If you have any confusions or are not quite sure about the installation, please do not hesitate to ask for our help. Before assembly, please check and make sure all necessary accessories are included and undamaged. Improper installation, such as use the product for monitors over its load capacity or for any purpose not explicitly specified, may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1: Apply Pads to the Base Bottom OPTIONA Paste the Pad (E1) onto the Base (E) STEP 2: Clamp Installation Or Grommet Base Installation OPTION A: Clamp Installation Loosen Bolts (B4) by using 5mm Allen Key (I),Then align the screw hole on the Base (E), and then lock the Screw (B4) with a 5mm Allen Wrench (I). - Page 4 STEP 2: (Continued) OPTION B: Grommet Base Installation Use 5mm Allen Key(I) to detach Clip Plate(B2)and bolt Y(B3) from Clamp(B). Use Bolt Y (B3) through the screw hole on Bracket (B1) to fix the Base (E) and the table board together.
-
Page 5: Step 3 : Arm Installation
STEP 3 : Arm Installation Install Arm (A),Fixator(H) ,Wire Clip (G) on the base in sequence as shown below. Make sure to tighten the Fixator(H) to desired place with 5mm Allen Key. Adjust the tightness of the bolt of Arm(A) to make the rotation flexible. - Page 6 STEP 4 : Attach Monitor OPTION A: Flat Back Monitor Attach the VESA Plate (D) to back of monitor and secure with Screws(M-A) with Washers(M-C ) using 5 mm Allen Key (I). Avoid excessive tightening screws damage the monitor. OPTION B: Curved Back Monitor Attach the VESA Plate (D) to back of monitor and secure with Screws (M-B) with Washers (M-C)and Spacer(M-D)using 5 mm Allen Key (I).
- Page 7 STEP 5 : Hang Monitor Slide the monitor onto the head of swivel arm.Install the Security Bolt (F). Make sure the security bolt is tightened before you rotate the monitor. Important Notice: Once the monitor is hanged on, hold the monitor with both hands and DO NOT let go suddenly or immediately.
-
Page 8: Step 6 : Adjust Tension
STEP 6 : Adjust Tension For intended functioning of the mount, you may need to adjust the tension of Arm (A) in accordance with your monitor weight by 6 mm Allen Key (J). CAUTION Note1: Be sure to keep the arm in horizontal position during adjustment. Situation 1: Arm falls down Upper Arm with monitor falls down and fails to stay where intended. -
Page 9: Step 7 : Cable Management
STEP 7 : Cable Management Remove bottom plastic covers from gas spring Arm (A) .Run cables from monitor through bottom of gas spring Arm (A). Then cover the Wire Cap (A1) onto the upper arm of the Arm (A). Reattach plastic covers as shown in diagram. Insert Press Tighten... - Page 10 Adjust as Desired Adjust monitor position and rotation. Tilt Swivel Rotation S w i v ± 9 0 ° +90° Tilt ° ± 1 8 0 -90° Swivel i o n R o t a t ±135° Swivel ±180° DESK DESK Please do not move stand outside desk for safety!
-
Page 11: Product Dimensions
Product Dimensions 60mm Swivel ±180° Swivel Swivel ±135° 180° min215~max275mm 60mm 183mm +90° Tilt -90° 35mm " 2 . 9 5 7 5 m ° " ± 1 8 0 3 . 9 4 1 0 0 m 4 . 5 " 1 1 4 m 3 8 7 2 5 m... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
