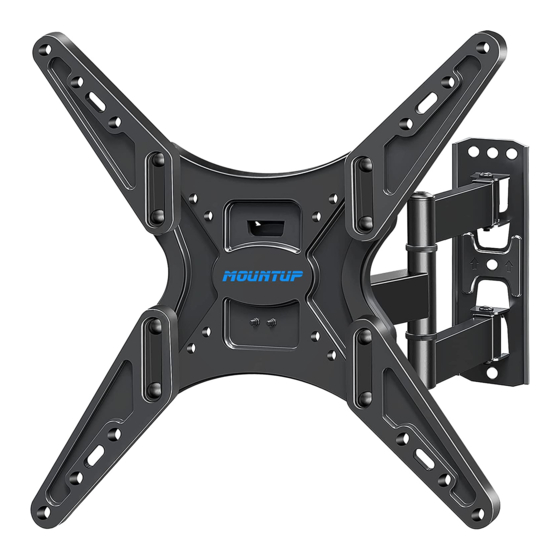

- Page 1 MU0014 INSTALLATION INSTRUCTION Velcro cable ties X5 Bubble level X1 Max:400x400mm/16x16" Max: 26"~55" 88LBS Min:100x100mm/4x4" 40KG (A0) If you have any questions, please contact us via help@jollyholding.com - 1 -...
- Page 2 Safety Caution combined. ● Do not apply this product to any purpose not indicated by MOUNTUP. ● Incorrect installation may result in product damage or body injury. MOUNTUP shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
-
Page 3: Hardware Included
Hardware Included Monitor Plate Extenders Nuts Bolts Arm and Wall Plate Hardware WARNING: （Wall /Product) This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify Washers Open end wrench Lag Bolts Ø8mm all parts are included and undamaged. If 5/16 x 2½... - Page 4 STEP 1 Select Proper TV Screw 1. Select TV screw diameter: Thread screws by hand into the threaded holes on the back of your TV to select which screw diameter fits your TV. 2. Select TV screw length: When attaching brackets to the TV, be careful not to over tighten screws and be sure that screws do not bottom out in the mounting holes.
- Page 5 STEP 3-1 Select monitor plate configuration Select the configuration A , B , C, D, or E to use based on the measurement from STEP 200 mm 130 mm VESA Patter VESA Pattern Configuration Configuration 100 mm (WxH) (WxH) 100mm x 100mm 300mm x 200mm 130mm x 130mm 300mm x 300mm...
-
Page 6: Step 3-3 Attach The Brackets
STEP 3-2 Assemble monitor plate and extenders Socket wrench If your TV hole pattern is greater than 200x200mm, attach extenders [3A] and [3B] to monitor plate [02] using Nut [4A] and Bolt [4B]. STEP 3-3 Attach the Brackets (a) for Flat Back Use the shorter screws Not for M8 screws (b) for Round Back / Extra space... - Page 7 STEP 4A Wall Plate Installation (Wood stud) 4A-1 Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge-to-edge stud finder. Position the wall plate 4A-2 your desired height and line up the holes with your stud center line.
- Page 8 4A-4 Install wall plate using lag bolts and washers B . Tighten the lag bolts until they are pulled firmly against the wall plate STEP 4B Wall Plate Installation (Concrete or Brick) Position the wall plate 4B-1 at your desired height , level the wall plate and mark the polit hole loca- tions.
- Page 9 Concrete wall anchor (NOT INCLUDED) Contact us by email help@jollyholding.com to have these additional pieces shipped directly to you. Concrete Wall Anchor 3pcs Concrete Wall Install wall plate using lag bolts washers and anchors (not included). Tighten the lag bolts until they are Concrete Wall pulled firmly against the wall plate...
-
Page 10: Loosen The Screws
Adjustments Tilting angle adjustment (+5° / -10°) (Tilting) Adjust TV to your desired angle then fasten tilting nuts with open end wrench. +5 /-10° Tilt the TV Loosen the nuts Tighten the nuts Leveling adjustment (-3°/+3°) (Leveling) If needed, TV can be leveled ±3 degrees via adjusting the 2 screws with the open end wrench.
