Mountup MU4001 Instruction Manual

Monitor and laptop mount
Hide thumbs Also See for MU4001:
Table of Contents

Advertisement

Quick Links

Download this manual
Monitor and Laptop Mount
Instruction Manual
If you have any questions, please feel free to contact us via Amazon.
27"
75x75
100x100
8kg/17.6lbs
MA08-12PA-US1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU4001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mountup MU4001

Summary of Contents for Mountup MU4001

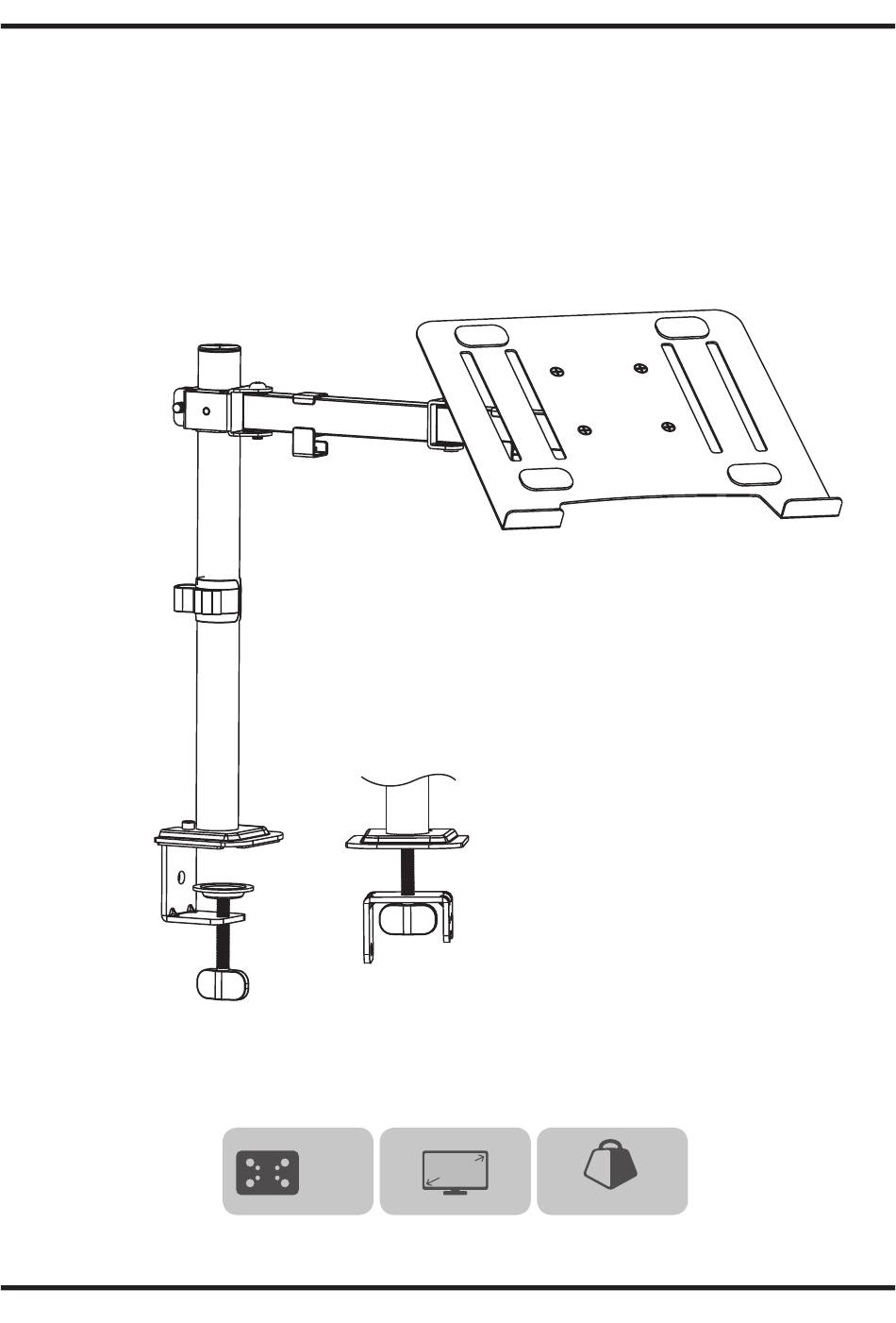

  • Page 1 Monitor and Laptop Mount Instruction Manual 27" 75x75 100x100 8kg/17.6lbs If you have any questions, please feel free to contact us via Amazon. MA08-12PA-US1.0...

  • Page 2: Package Contents

    WARNING! If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,please contact us. Before starting assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS Warm Tips You could also refer to the Video Guide about installation on our product page. STEP 1: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Mount Clamp (C) to the bottom of Pole (D) by tightening bolts (G) with 5mm Allen Key (I). Adjust the Clamp width to t your desk.
  • Page 4 STEP 1: (Continued) OPTION B: Grommet Base Installation If existing grommet hole comes with a plastic protector, remove it to ensure a at surface before installing the desk mount. Detach Bracket (C1) and Bolt Y (C2) from Clamp (C). DESK ø...

  • Page 5: Step 2 : Arm Installation

    STEP 2 : Arm Installation Install wire clip (E) and swivel arms (B) to the pole (D). Fasten the bolt with supplied 6mm Allen key (J). Attached the wire clips (F) to the swivel arm (B).
  • Page 6 STEP 3: Attach the VESA Plate to the Laptop Tray or Monitor OPTION A: Laptop Tray Install the VESA plate (A) to the laptop tray (K) using 4pcs screws (M) and 4pcs nuts (N) , tighten by 6mm NOTE: Attach the pads on the tray Allen key (J) .
  • Page 7 STEP 4 : Hang Monitor or Laptop Tray Slide the laptop tray onto the head of swivel arm (B). Install the security bolt (H). Make sure the security bolt is installed before you rotate the laptop tray.
  • Page 8 STEP 5 : Secure the Laptop on the Laptop tray Blank side Loop&Hook side Untie the strap before you cover the laptop.

  • Page 9: Step 6: Tilt Adjustment

    STEP 6: Tilt Adjustment Tighten the bolt with the supplied 6mm Allen key (J) to x the tilt angle. Guideline to adjust monitor tilting angle. Problem: If monitor face down. Solution: 1. Loosen the tilting bolt. 2. Hold the bottom of monitor with one hand and adjust to determine your desired tilt angle.

  • Page 10: Step 7: Cable Management

    STEP 7: Cable Management Manage cables and store Allen keys (H,I) in wire clip (E) for future use.

  • Page 11: Product Dimensions

    Adjust as Desired Adjust laptop tray position and rotation. Swivel Swivel Swivel ±90° ±90° ±90° +90° Tilt -90° 360° Rotation DESK DESK Do not move stand outside desk for safety! Product Dimensions...
  • Page 12 CAUTION AND MAINTENANCE: • Don't allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors may lead to product damage or personal injury. •...
