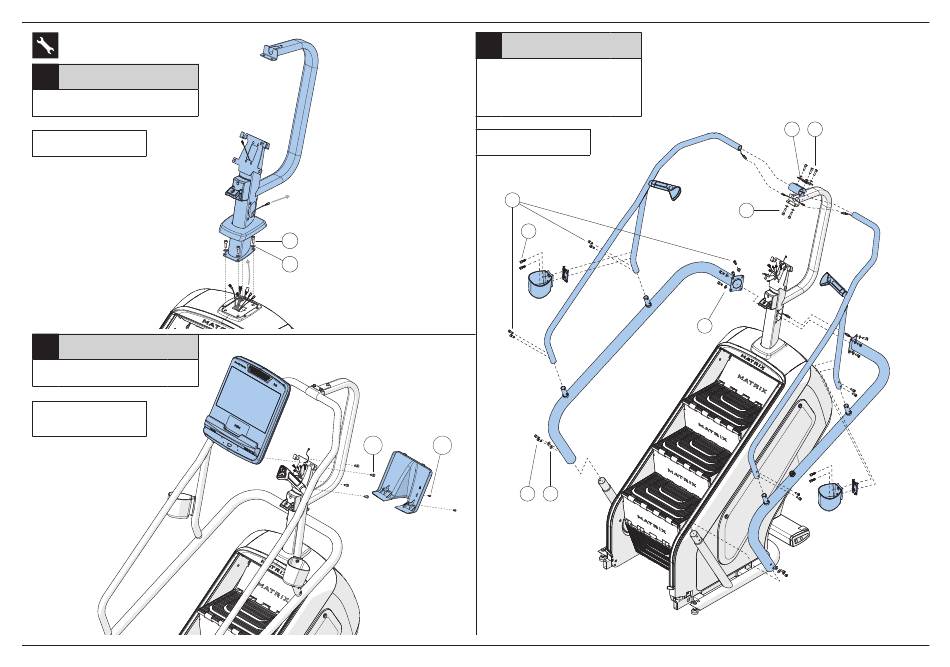

ASSEMBLY
1
Hardware
Qty
A
Bolt
4
B
Washer
4
Torque Value
24 Nm / 17.7 ft-lb
3
Hardware
Qty
H
Bolt (20mm)
4
I
Bolt (10mm)
2
Torque Value
H - 24 Nm / 17.7 ft-lb
I - 9.8 Nm / 7.2 ft-lb
ENGLISH
A
B
H
I
2
Hardware
Qty
C
Bolt (16 mm)
7
D
Curved Washer
4
E
Bolt (20 mm)
20
F
Flat Washer
13
G
Bolt (35 mm)
2
Torque Value
24 Nm / 17.7 ft-lb
E
C
E
D
5
F
C
G
F
