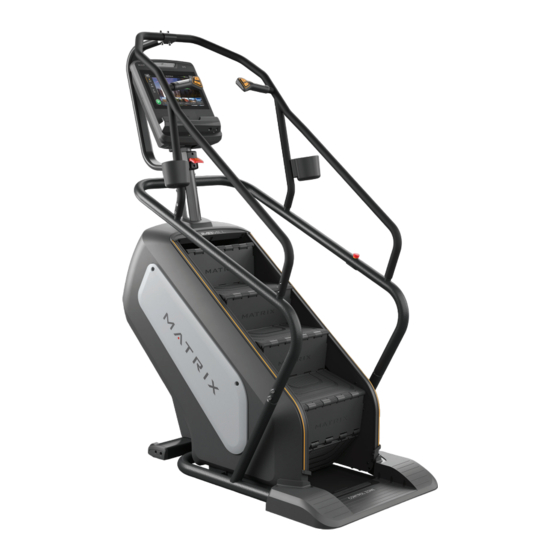

Matrix ENDURANCE Manual

Matrix ENDURANCE Manual

Climbmill
Hide thumbs Also See for ENDURANCE:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENDURANCE and is the answer not in the manual?

Questions and answers

Summary of Contents for Matrix ENDURANCE

  • Page 2: Important Precautions

    ENGLISH IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using a ClimbMill, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of all warnings and precautions. This equipment is for indoor use only.
  • Page 3: Power Requirements

    110 V products require the use of a 100-125 V, 60 Hz and a minimum of a 15A circuit, with a non-looped (isolated) neutral/ground for power. This unit can be daisy-chained together with up to 4 units per 15A circuit. Matrix daisy-chain cord adapters are sold separately. 220 V UNITS 220 V units require the use of a 216-250 V, 50 Hz and a minimum of a 15A circuit, with a non- looped (isolated) neutral/ ground for power.
  • Page 4: Tools Required

    There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make F 2 End Caps (ENDURANCE) sure all parts are firmly tightened. If the assembly instructions are not followed...
  • Page 5 ENGLISH ASSEMBLY Hardware Bolt (16 mm) Hardware Curved Washer Bolt (20 mm) Bolt Flat Washer Washer Bolt (35 mm) Torque Value Torque Value 24 Nm / 17.7 ft-lb 24 Nm / 17.7 ft-lb Hardware Bolt (20mm) Bolt (10mm) Torque Value H - 24 Nm / 17.7 ft-lb I - 9.8 Nm / 7.2 ft-lb...
  • Page 6: Before You Begin

    The ClimbMill adds 30 - 38” (76 - 96.5cm) to a users height. For example, a 6’ (183cm) tall user will be 8’6” - 9’ 2” (259.5 - 279.5cm) off the floor. TRAINING AREA FREE AREA ENDURANCE ONLY 3.05 M 3.05 M (10 ft)
  • Page 7: Proper Usage

    Locate a level, stable surface to position the equipment. The equipment has levelers located below the bottom step. To access the levelers, remove the end caps (ENDURANCE) or CONTROL ZONE (PERFORMANCE). CAUTION: There is an electrical plug located under the CONTROL ZONE and will need to be unplugged before the cover can be completely removed.
  • Page 8: Maintenance

    5. Ensure that any person(s) making adjustments or performing maintenance or heart rate reading is intended only as an exercise aid in determining repair of any kind is qualified to do so. MATRIX dealers will provide service heart rate trends in general. Please consult your physician.
  • Page 9: Product Specifications

    MAINTENANCE SCHEDULE ACTION FREQUENCY Unplug the unit. Clean entire frame and shrouds using water and a mild soap or other Matrix approved solution DAILY (cleaning agents should be alcohol and ammonia free). ENDURANCE: Unplug the ClimbMill and remove the access panel. Clean chain of old grease and re-apply a MONTHLY lithium-based grease to each chain link.
  • Page 10 © 2021 Johnson Health Tech Rev 1.3 A...
