USER MANUAL
IPM Industrial High Power Sensor
IPM-COM – IPM adapter for industrial protocols
Modern automation systems integrate equipment from multiple vendors into a common Ethernet infrastructure. The IPM-
COM is an industrial communication module enabling the integration of the IPM industrial sensor into Profinet or EtherNet/IP
automation systems. For additional protocols please approach your local Ophir sales representative.
• Connects to the IPM sensor to provide industrial communication protocols
• Supports communication and power daisy chaining
• Supports Profinet, EtherNet/IP
• Industrial ruggedized housing and connectors
• Mounting plate and holes for wall mounting
• Two connector options: M12 & Mini 7/8", or AIDA
Model IPM-COM
Use Support industrial communication protocols for IPM sensor
Connectors 2x Industrial Ethernet connectors, 2x 24V power connectors, 1x M12 interconnection with the IPM sensor
Cables Cable to IPM sensor, M12 male to M12 female, 5-pin, 1.5m (P/N 7E01540, supplied)
Weight kg 2
Name
Part
Numbers IPM-COM-Profinet
IPM-COM-EtherNet/IP-M
Name
Related IPM-10KW sensor
Products Combined protective shutter and scatter shield IPM-SHUTTER10
IPM-SHUTTER10 window replacement kit
Name
Power Cable, Mini 7/8" female, 4-pin, to flying leads, 2m (not supplied)
Optional
Power Cable, AIDA female, 4-pin, to flying leads, 5m (not supplied)
Accessories
Profinet Cable, RJ45 AIDA to RJ45, 5m (not supplied)
EtherNet/IP Cable, M12-D to RJ45, 3m (not supplied)
Notes: (a) Other protocols (EtherCAT, CC-link) can be supported, contact Ophir for more information
Notes: (b) Other combinations of protocol and connector types are possible, contact Ophir for more information

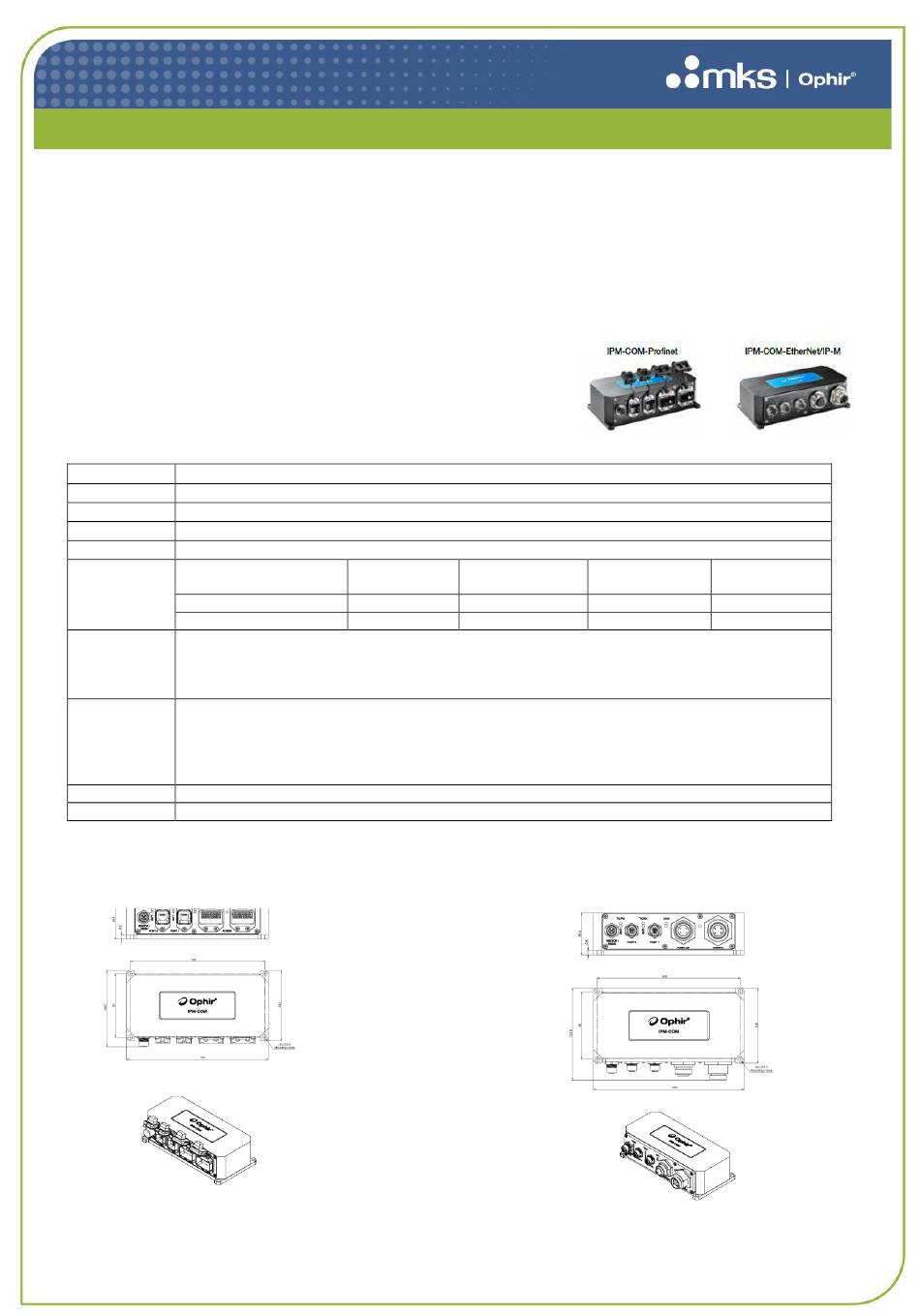

IPM-COM-Profinet (AIDA)
9 | IPM USER MANUAL
(a)
Protocol Data
Connector
Profinet AIDA RJ45
EtherNet/IP M12
7Z07106 - REV 2 - 25/OCT/2022
Power
(b)
Connector
AIDA Power
Mini 7/8"
IPM-COM-EtherNet/IP-M (M12, Mini 7/8")
P/N
7Z08404
7Z08405
P/N
7Z07106
7Z08409
7Z08411
P/N
7E01535
7Z10458A
7E01298
7E11211
