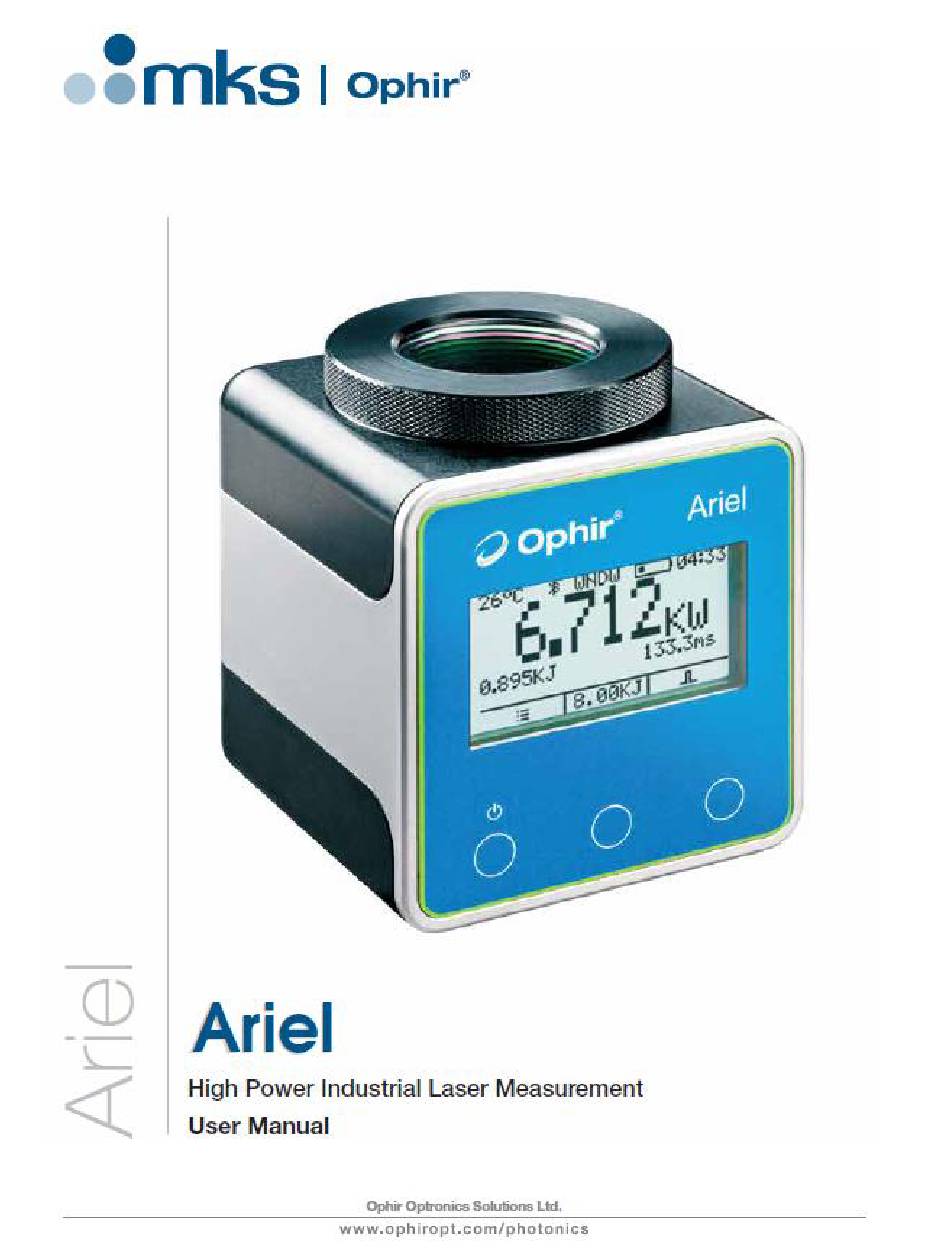

- Page 1 Rev5, 01/04/21 Instruction Manual Ariel User Manual POB 45021 Fax: (972) 2-548-7481 Jerusalem, Israel 9145001 E-mail: ophir@mksinst.com (972) 2- 548-7458 www.ophiropt.com...
- Page 2 All rights reserved. No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system, except as may be expressly permitted in writing by MKS Instruments, Inc. mksinst™ is a trademark of MKS Instruments, Inc.
-
Page 3: Table Of Contents
The Ariel User Manual Rev 5, 01/04/21 Chapter 1: Table of Contents Chapter 2: List of Figures and Tables ......................2 Chapter 3: Safety Information ........................3 Safety Procedures and Precautions ....................3 Symbols Used in This Instruction Manual ..................3 Chapter 1: Overview ............................. -
Page 4: Chapter 2: List Of Figures And Tables
The Ariel User Manual Rev 5, 01/04/21 Chapter 2: List of Figures and Tables Figures Figure 1: The Ariel isometric view ....................... 4 Figure 2: The Ariel drawing ......................... 7 Figure 3: Protective cover ..........................8 Figure 4: Ariel parts ............................8 Figure 5: Window ............................ -
Page 5: Chapter 3: Safety Information
DO NOT SUBSTITUTE PARTS OR MODIFY INSTRUMENT Do not install substitute parts or perform any unauthorized modification to the instrument. Return the instrument to an MKS Calibration and Service Center for service and repair to ensure that all safety features are maintained. -
Page 6: Chapter 1: Overview

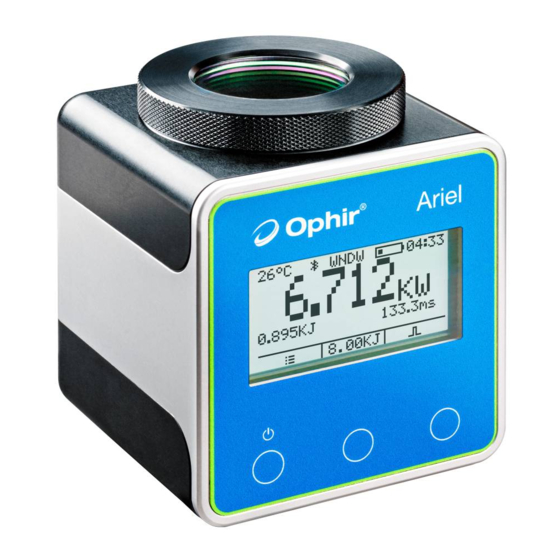

The Ariel User Manual Rev 5, 01/04/21 Chapter 1: Overview Features • Measures up to 8000W • No Water Cooling • Self-Contained, built in Display, Battery, Bluetooth, USB • Very Compact • Dust proof, splash proof • Supported by PC and Android applications Figure 1: The Ariel isometric view The Ariel measures high power industrial lasers of up to 8kW by measuring the energy of a short exposure to this power. -
Page 7: Chapter 2: Specifications
The Ariel User Manual Rev 5, 01/04/21 Chapter 2: Specifications Version: 3 (12/26/2020) Note See our website www.ophiropt.com for latest specifications. Model Ariel High power laser measurement by short exposure Absorber Type LP2, absorption >95% 200mW – 8,000W Power Range Pulsed Mode: 0.05 –... -
Page 8: Table 1: The Ariel Specifications
The Ariel User Manual Rev 5, 01/04/21 Compatible Client StarLab (PC, USB), StarViewer (Android, Bluetooth) Applications Recommended Exposure Laser Power W Recommended Min 1/e² beam dia. Min 1/e² beam dia. Times and 1/e² Gaussian Exposure s with diffuser (max Beam Diameters dia. -
Page 9: Figure 2: The Ariel Drawing
The Ariel User Manual Rev 5, 01/04/21 Figure 2: The Ariel drawing... -
Page 10: Chapter 3: Accessories And Features
The Ariel User Manual Rev 5, 01/04/21 Chapter 3: Accessories and Features The Ariel has several accessories and features: • Window – used for regular measurements. • Diffuser – used for higher power-density beams, refer to specifications for details. • Protective Cover with target –... -
Page 11: Chapter 4: Wavelength Options
The Ariel User Manual Rev 5, 01/04/21 Chapter 4: Wavelength options The Ariel supports four different operation modes: Wavelength Aperture Accessory Illustration 500 – 1100nm Window Ø32mm Window must be mounted Figure 5: Window 500 – 1100nm, Diffuser Ø10mm Diffuser must be mounted high power density Figure 6: Diffuser... -
Page 12: Chapter 5: Pulsed Power
The Ariel User Manual Rev 5, 01/04/21 Chapter 5: Pulsed Power 5.1: Physical Principle The core of the Ariel is a high power copper thermopile disk that can measure short exposures of high power lasers. An internal, un-calibrated silicon photodiode detects the backscattered light to measure the exposure time. ��... -
Page 13: Chapter 6: Using The Ariel
The Ariel User Manual Rev 5, 01/04/21 Chapter 6: Using the Ariel 6.1: Power on In order to power on the Ariel just click the left button (which has a small on/off icon), or attach a powered USB-C cable. The Ophir logo will appear, followed by the date and time, and then the measurement screen. -
Page 14: Ranges
The Ariel User Manual Rev 5, 01/04/21 Note If the Ariel stays long enough on CW measurement screen, the entire log will be overwritten. 6.7: Ranges Use the middle button to toggle between ranges, in order to choose the most compatible measurement range. -
Page 15: 2: Diff/Λ
The Ariel User Manual Rev 5, 01/04/21 List Log In this view the log entry numbers will be displayed on the top line, and the log entries will be listed showing the following details: time of the Figure 15: Log Figure 16: List logs measurement, value, type (pulse/CW) and an detailed view... -
Page 16: Chapter 7: Applications
The Ariel User Manual Rev 5, 01/04/21 Chapter 7: Applications 7.1: StarLab Ophir’s StarLab software may be used to communicate with the Ariel using the USB-C cable connected to a PC. See more details in the StarLab User Manual. 7.2: StarViewer The StarViewer app may be used on an Android device in order to communicate with the Ariel using Bluetooth wireless communication.
