Summary of Contents for TRONXY XY-3 PRO V2

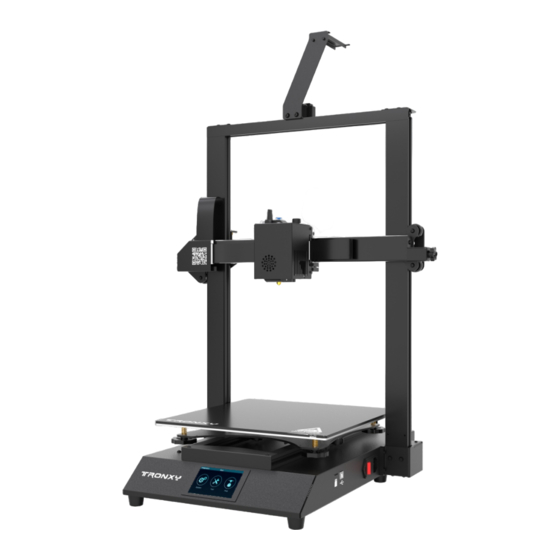

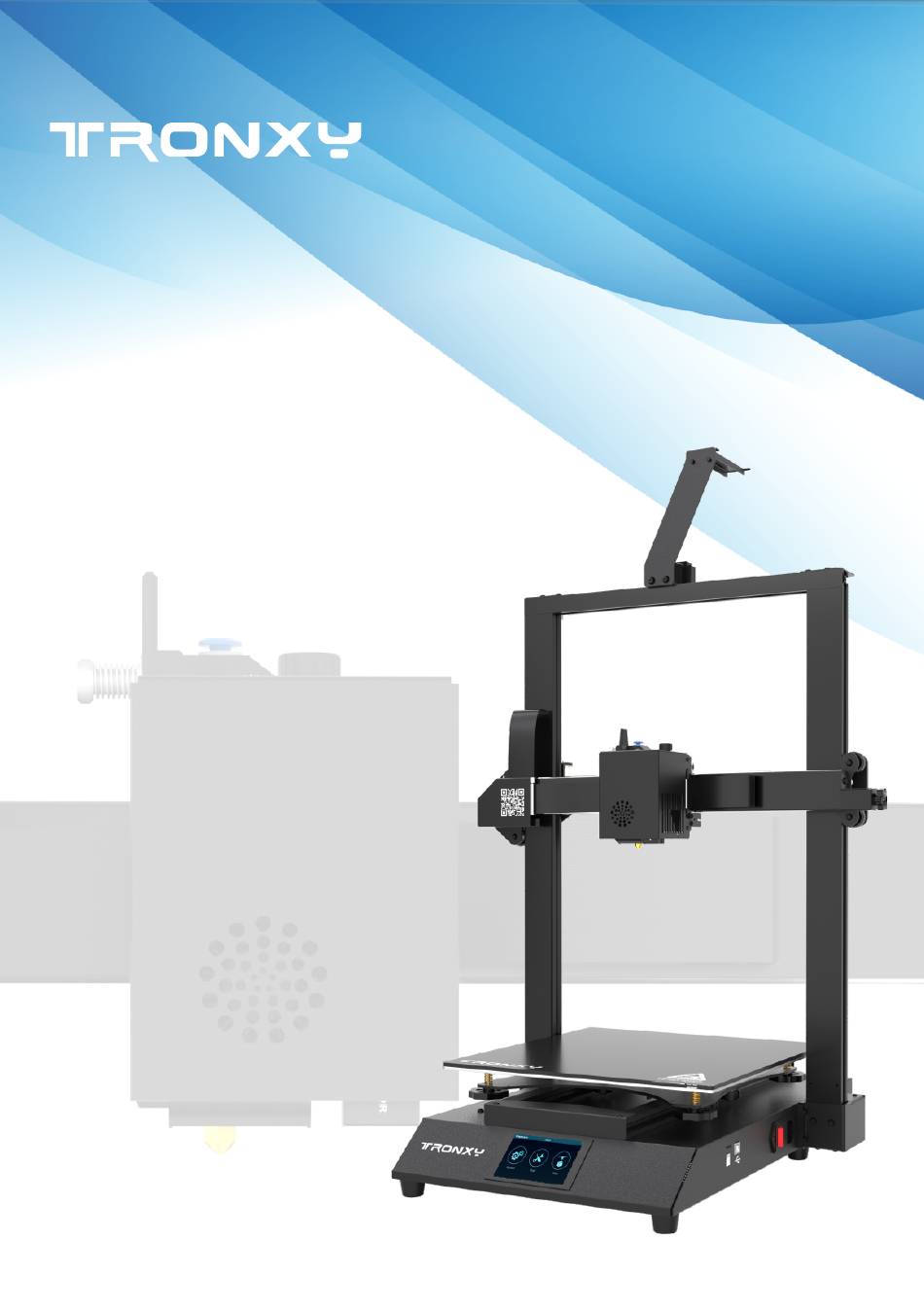

- Page 1 XY-3 PRO V2 Installation Manual...
- Page 2 ATTENTION Note : Please make sure the voltage is consistent with the local voltage before printing. If not,please adjust it(110V-220V). Please check if the all the items are included in the packing list before installing the printer . If you have any questions, please contact customer ser vice.
-
Page 3: Table Of Contents
DIRECTORY 1. MACHINE PARAMETERS 2. MACHINE STRUCTURE 3. PACKING LIST 4. INSTALLATION 1.Installation frame 2.Install the print head, filament holder and lattice glass 5. WIRING DIAGRAM 6. STRUCTURE DEBUG 7. MENU LIST 1.Auto leveling 2.Load and unload filaments 3.Print test 8. -
Page 4: Machine Parameters
MACHINE PARAMETERS Print parameters Print size : 300*300*400mm Print accuracy : 0.1-0.3mm Print principle : FDM(fused deposition molding) Nozzle size : 0.4mm Nozzle quantity : Print speed : 20-150mm/s(advise 60mm/s) Position accuracy : X/Y -0.00625mm, Z - 0.00125mm Filaments support : PLA, ABS, PETG, TPU····... -
Page 5: Machine Structure
MACHINE STRUCTURE X axis belt adjuster Filament holder Upper frame Filament sensor switch Z axis synchronous belt Print head parts X axis motor Hot bed Screw Leveling nut Coupling Touch screen Adapter board wiring port TF card slot and USB socket Power switch and power cord socket Z axis motor Y axis belt adjuster... -
Page 6: Packing List
PACKING LIST Upper bracket Print head Filament holder Base Lattice glass Clip Power line USB cable Filament(Random Color) Reader and TF card Shovel T-shaped hexagon wrench Slotted screwdriver Wrench Allen wrench Before installing the machine, please che ck whe the r the acce ssori e s are c o m p l e t e . -
Page 7: Installation
INSTALLATION 1.Installation frame Upper bracket T-shaped hexagon wrench Base M4*10 10PCS... -
Page 8: Install The Print Head, Filament Holder And Lattice Glass
2.Install the print head, filament holder and lattice glass Lattice glass Clip T-shaped hexagon wrench Print head Filament holder... - Page 9 Use clamps to fix the lattice glass on the hot bed.
-
Page 10: Wiring Diagram
WIRING DIAGRAM Filament detector TF card and USB cable slot and Power switch and power cord slot Right Z motor line Left Z motor line Note: Please make sure the voltage is consistent with the local voltage before printing. If not, please adjust it (110V-220V） Adapter board wiring port and power 110v-220v switch... - Page 11 Steps to insert FPC cord Toggle the black buckle Insert PFC Cord Precautions for FPC cord If you tr y to unplug the FPC cord at , please pay attention to the pulling direction, as shown in the figure below:...
-
Page 12: Structure Debug
STRUCTURE DEBUG If the machine structure is loose during transportation, it can be solved by adjusting the eccentric nut.As shown in the figure below (eccentric nut in red circle), turn the nut with a wrench to adjust the tightness of the pulley (the pulley should not be adjusted too tight to avoid smooth operation). -
Page 13: Menu List
MENU LIST... -
Page 14: Auto Leveling
1.Auto leveling Select tool options Click on leveling, select auto If the absolute value of the difference is greater than 0.8, adjust the screw and do it again. Return to the menu page, select "Z offset” According to the actual situation, use "10mm", "1mm", "0.1mm" to adjust the distance between the nozzle and the platform, and adjust it to the thickness of A4 paper. -
Page 15: Load And Unload Filaments
2.Load and unload filaments 1）Load filaments In order to successfully complete 45° the loading, the filament needs to p e r f o r m s o m e n e c e s s a r y operations, as shown in the figure below. - Page 16 2）Extruded filament and unload filament Caution The print head must be raised before preheating to avoid scalding the platform. 2.Extruded filament and 1.Preheat nozzle unload filament 23/0 180/210 23/0 Unload filament Extruded filament After waiting for temperature 23/0 u p t o 1 8 0 ℃ , f i l a m e n t g o t h r o u g h f r o m t h e f i l a m e n t detection, extruder and feed 23/199...
-
Page 17: Print Test
3.Print test Insert the SD card with the reverse side up Click to print Select test file Start printing (20mm calibration cube.gcode) Possible situations when extruding the filament Nozzle Nozzle Filament Nozzle Filament Filament Proper nozzle height The distance between the hot bed The distance between the hot bed Good extrusion and adhesion and the nozzle is too close, you need... -
Page 18: Cura Installation Steps
CURA INSTALLATION STEPS Install "Ultimaker_Cura-4.8.0-amd64", double-click to install thesoftware, follow the prompts to complete the installation steps. Set the model according to the fiure below Settings Printer Add printer... - Page 19 Add a non-networked printer Select Tronxy XY-3 Enter Tronxy XY-3 PRO v2 Click "Add” Change the maximum print size of the machine Click “Next”...
- Page 20 Modify the parameters according to the diagram, and adjust the specific parameters according to the model characteristics.
-
Page 21: Failure Cause Analysis
5. The model is not easy to take off 1) Tr y to heat the hot bed to 50-70 ℃ take off it by the shovel . 2) It is recommended to buy TRONXY magnetic stickers. 6. Can’t heat it up 1) Check the heating rod and thermistor for poor contact or damage. - Page 22 7. Motor out of step 1) Check the tightness of the belt, whether the pulley is not locked. 2) Check the current voltage. 3) Check X/Y/Z axis motion is smooth. 4) Print speed too fast. 5) Environment temp too high. 6) Need flash the firmware.
- Page 23 ﺑﻌد اﻟﺑﯾﻊ 판매후서비스 Serviciopostventa Serviçopós-venda After-saleservice support@tronxy.com アフターサービス ServicenachdemVerkauf Послепродажноеобслуживание...
- Page 24 lntelligent print for you...
