X5SA-500
Installation instructions
SHENZHEN TRONXY TECHNOLOG CO.,LTD

Advertisement

loading
Need help?

Need help?

Do you have a question about the X5SA-500 and is the answer not in the manual?

Questions and answers

Related Manuals for TRONXY X5SA-500

Summary of Contents for TRONXY X5SA-500

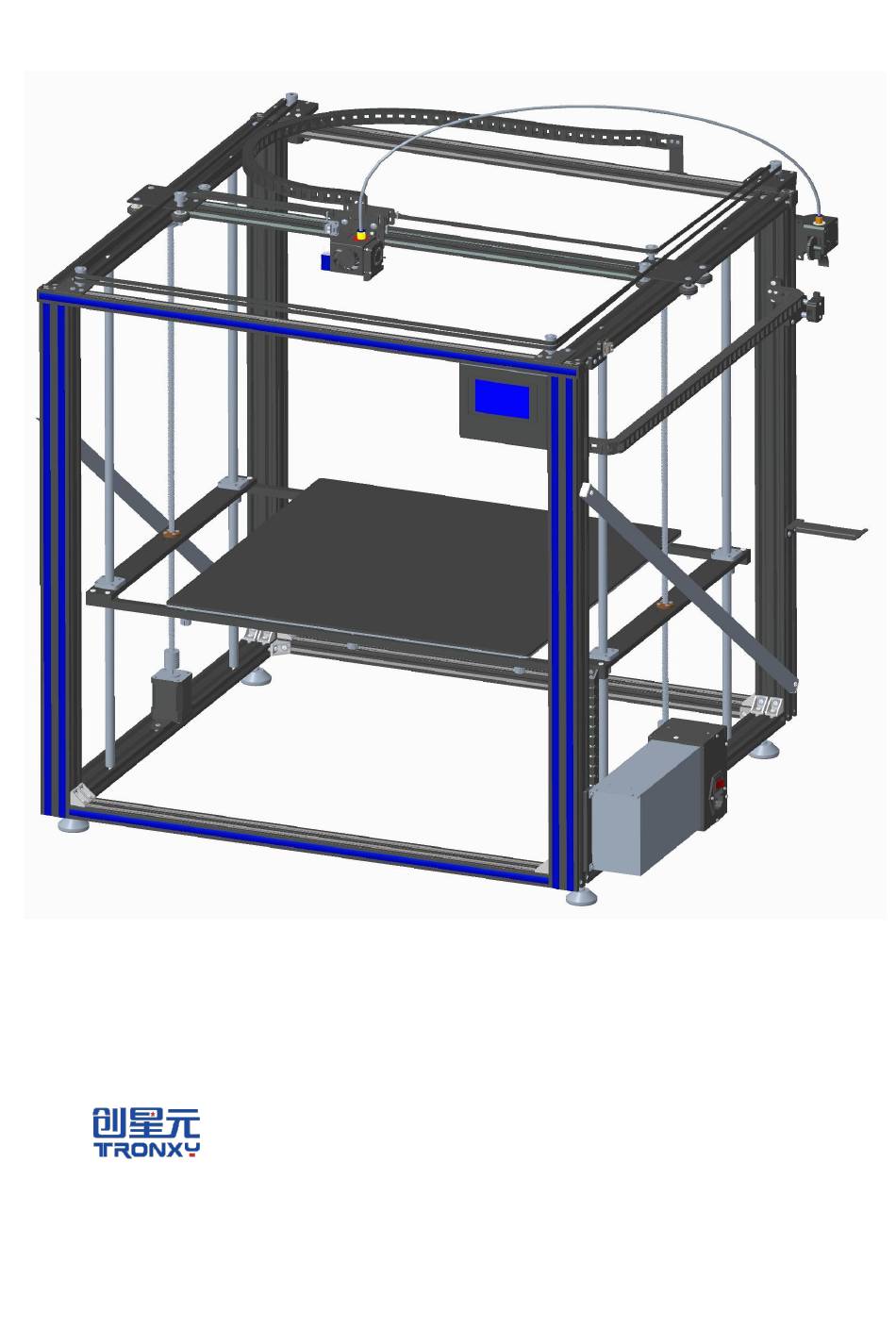

  • Page 1 X5SA-500 Installation instructions SHENZHEN TRONXY TECHNOLOG CO.,LTD...

  • Page 2: Product Assembly

    1 Product assembly Step 1: frame assembly Assemble material specification and quantity： Aluminium profiles 1 Aluminium profiles 2 Aluminium profiles 3 screws screws Angle code spacer 20*20*740 2pcs 40*40*780 4pcs 20*40*660 2pcs PM5*45 8件 PM6*25 8件 20pcs 40pcs boat nuts M4 40个 L type angle code 12pcs Meter screws M5*5 24pcs screws PM4*8 40pcs...
  • Page 3 Step 2: frame assembly Assemble material specification and quantity： Framework components Aluminum4 20*40*630 angle code component 2pcs 2pcs 20pcs 1. Take 1 piece of frame assembly and 2 pieces of aluminum 2. Take another frame component and place it according to the position shown.
  • Page 4 Step 3: install the sliding plate Assemble material specification and quantity： L type angle screws Aluminum5 underframe code left sliding plate component right sliding plate component PM6*25 20*40*670 1pcs 1pcs 1pcs component 2pcs 8pcs 8pcs 1. Take 5,2 aluminum profiles, and insert the left and right 2.

  • Page 5: Step 4: Print Head Installation

    Step 4: print head installation Assemble material specification and quantity： Print head screws Aluminum6 assembly boat nuts nuts M3 drag chain screws screws underframe 1pcs PM4*12 20*20*654 (with drag M4 2pcs 4pcs riser 1pcs PM3*8 4pcs PM4*8 2pcs 1pcs 4pcs chain) 1pcs 1.
  • Page 6 Step 5: installation of XY axis motor and wheel Assemble material specification and quantity： right wheel left wheel screws screws underframe Y motor X motor boat nuts screws component component motor 2pcs PM3*10 PM4*12 1pcs plate 1pcs plate 1pcs M4 10pcs PM4*8 6pcs 1pcs 1pcs...
  • Page 7 Step 6: belt assembly Assemble material specification and quantity： mainframe 1pcs belt 2pcs Tie 4pcs 1. Move the belt through as shown, wrap the motor gear on the 2. Move the belt through as shown, wrap the motor gear on the rack surface, and determine the belt trend.
  • Page 8 Step 7: assemble linear bearing and z-axis motor Assemble material specification and quantity： diaphragm 2pcs LMK 4pcs feed screw nut 2pcs screws PM3*8 8pcs Z axis motor component 2pcs screws PM4*8 24pcs bearing block 2pcs boat nut 8pcs 1. Take 1 piece of horizontal plate, 2 pieces of linear bearing and 1 3.
  • Page 9 Step 8: Z axis assembly Assemble material specification and quantity： diaphragm Bearing Polished rod lead screw screws frame base component Z axis motor bracket 2pcs component assembly Φ12*760 T8*665 PM4*20 1pcs 2pcs 4pcs 2pcs 8pcs 2pcs 1. Take 1 piece of horizontal plate, insert 2 pieces of polished rod There is a gap or too long between the polished rod and the into linear bearing, screw the screw rod nut, and take the motor upper and lower aluminum profile.
  • Page 10 Step 9: feed motor installation Assemble material specification and quantity： mainframe 1pcs boat nuts M4 2pcs screws PM4*6 2pcs feed motor component 1pcs 1. Assemble the feeding motor components as shown in the picture with 2 PM4*6 screws and boat nut M4. 2.
  • Page 11 Step 10: print platform assembly Assemble material specification and quantity： screws Hot bed (with drag boat nuts plastic nuts mainframe 1pcs beam 2pcs PM4*8 spring 6pcs chain)500*500*3 1pcs 2pcs M3 6pcs 2pcs screws screws screws nuts M3 Drag chain screws KM3*35 6pcs PM4*12 PM3*6 PM3*10...
  • Page 12 Step 11: control box assembly (this step can be installed after wiring) Assemble material specification and quantity： mainframe 1pcs control box 1pcs boat nuts M4 4pcs screws PM4*6 4pcs 1. Take 1 piece of the control box, and take 4 screws and boat nut. 2.
  • Page 13 Step 12: power installation Assemble material specification and quantity： mainframe 1pcs power component 1pcs 1. Select the power component and select the voltage of 2. Fix the aluminum profile groove with boat nut and lock the 4 110V/220V according to the power supply voltage in the screws PM4*8, as shown in the figure.
  • Page 14 Step 13: assemble the rack Assemble material specification and quantity： 3d printer 1set material rack 1pcs boat nuts M4 2pcs screws PM4*6 2pcs 1. Pick 1 piece material rack plate, 2 screwsPM4*6, 2 boat nut M4, 3. Fix the material rack assembly into the aluminum profile groove assemble as shown.
  • Page 15 Step 14: decorative strip and feeding tube, lattice glass assembly Assemble material specification and quantity： 3d printer 1set Decorative strip 1 roll feed tubeΦ4 1pcs Print platform sticker 1pcs 1. Pull the feeding tube into the air nozzle hole of the feeding 2.

  • Page 16: Step 15: Limit Switch Assembly

    Step 15: limit switch assembly Assemble material specification and quantity： 3d printer Y Switch screws boat nuts 1pcs 1pcs PM4*8 2pcs M4 2pcs 2. Fix the Y switch assembly in the aluminum profile groove with 1. Put 2pcs screw PM4*8 through Y switch component, then lock boat nut, as shown in the figure.
  • Page 17 Step 16: assemble the filament run out detector Assemble material specification and quantity： screws 3d printer detector boat nuts PM4*12 1set 1pcs M4 2pcs 2pcs 1. Take the boat nut M4, screw PM4*12, as shown in the figure, 2. Fix the switch assembly with boat nut M4 and screw PM4*12 on align with the switch assembly, and screw in the boat nut M4.
  • Page 18 Step 17: strengthen rods and chains assembly Assemble material specification and quantity： screws screws screws 3d printer strengthen boat nuts chains base Drag chain Foot cup End cover PM4*16 PM4*12 PA3*10 1pcs rods 2pcs M4 8pcs 2pcs 1pcs 4pcs 4PCS 4pcs 4pcs 4pcs...
  • Page 19 Step 18: wiring YSTOP FSTOP The host box E-motor Heat bed Z1-motor Printing head BTEMP ZSTOP Printing head HOTBED Power X-Motor Y-Motor Z1-Motor Z2-Motor E-Motor Y-Motor Power Z2-motor X-Motor YSTOP FSTOP...
  • Page 20 F STOP X5SA-500 Physical wiring diagram...
  • Page 21 2 Touch screen operation guide 1. Enter the main screen of the startup, display the system and tools, print three main menus, and click on the three sub-menus, as shown in the figure.Basic functionality for displaying submenus. 2. Click the system menu and enter it into the system submenu, as shown in the figure: click back menu and return to the superior menu. 2.1 click the state and display as shown in the figure: display the machine position state parameters.Click back menu to return to the superior menu.
  • Page 22 2.4 click factory Settings to ask whether the factory Settings are restored.Click to return to restart and restore the factory Settings. 2.5 click the screen correction icon to enter the screen correction and click the cross position for correction.Adjust the screen when the menu is off, save it back.
  • Page 23 3.2 click the icon of preheating, as shown in the figure, set the heating temperature of the machine extrusion head and the hot bed, heat the icon hot bed and heat the icon extrusion head, and click the icon in the right and left direction to adjust the setting temperature heating.Use the heating function when replacing consumables.
  • Page 24 3.4.2 click automatic leveling, the machine will move automatically, read the location parameters set and save.If the reading deviates from 0.8 or above, adjust the nut under the platform at that point and then relevel it. 3.4.3 click the manual leveling to enter the menu, please adjust the 4 adjustment nut of heat bed, compress the 4 springs in the shortest possible location, click on the icon circle X icon, stop machine extrusion head moves to set position, please loosen the adjusting nut, release the spring rebound, let between nozzle and hot bed in the thickness of a piece of A4 paper, A4 paper between the nozzle and the platform moving a sense of resistance, but will not cut paper.Please adjust the four points circled in A4 paper thickness.
  • Page 25 3.7 click the Z offset icon to enter the Z axis position adjustment.The function of automatic leveling is effective.Select the fine tuning 0.1mm icon, click the icon Z axis to move up, and click the Z axis to move down.Adjust the nozzle and platform to A4 paper thickness. Click the icon set Z to zero and save the setting.This function is automatically leveling Z axis compensation, with leveling function used, leveling simple.
  • Page 26 4.2.2 click the icon to stop printing, and the machine asks whether it is saved. Select "save", and the next printing will start from the current state.Select no, machine state reset.Click cancel to continue printing.This function continues for breakpoint.After the model print stops, the stop save state is shut down, and you can continue printing after the next start.Boot prompt last print interrupt, select continue last print.
  • Page 27 6. Filament run out detector: when the machine is printing, the machine will automatically save the current status parameters. When the machine is restarted, the screen will show that the last time it was hit was interrupted.The option is to print from the breakpoint.Select no or cancel, and the parameters are cleared.
