Summary of Contents for Eaton xChargeln DC 22

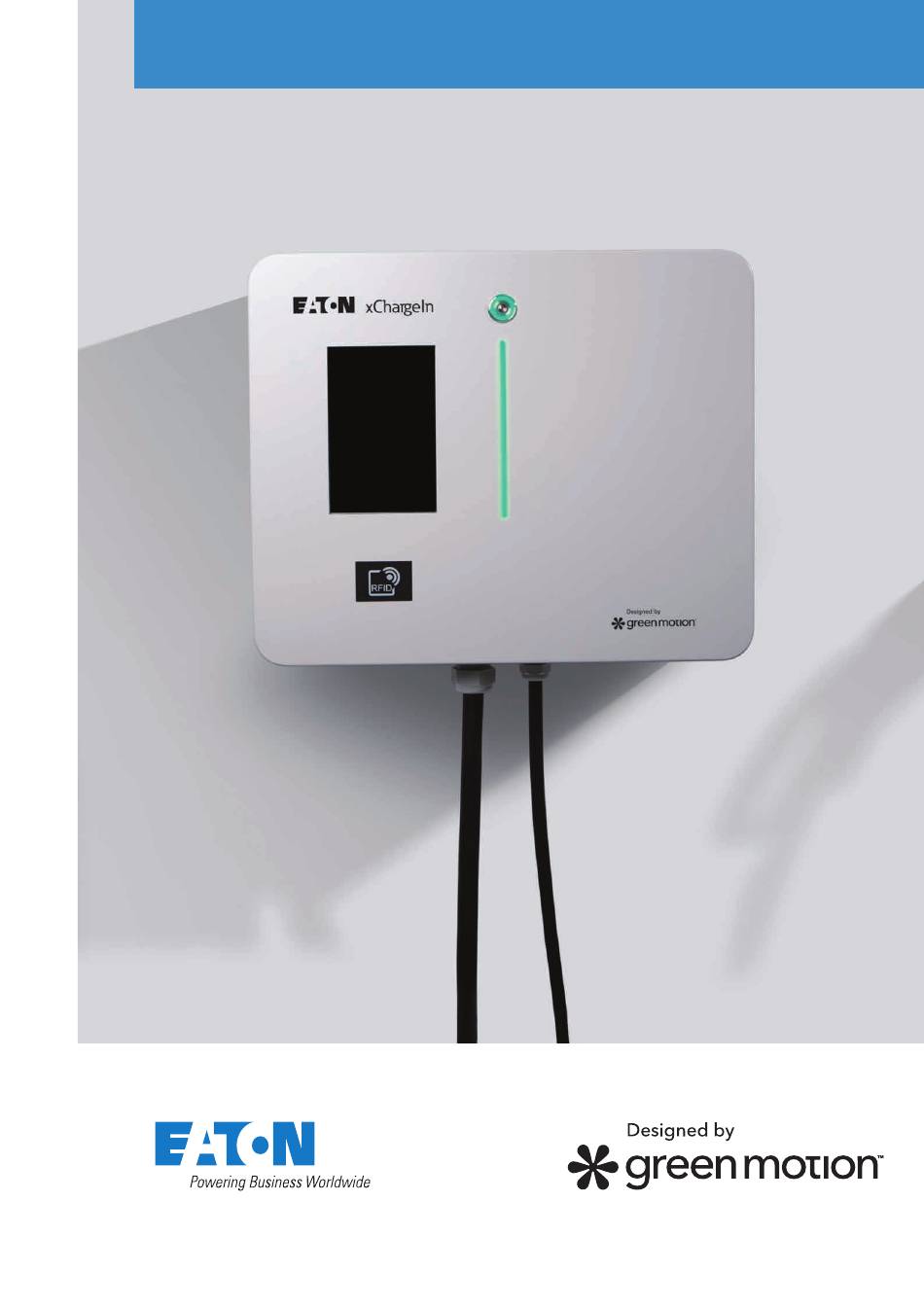

- Page 1 xChargeIn DC 22 xChargeIn DC 22 User Manual...
- Page 2 Corporation’s (“Eaton”) experience and judgment and may not cover all contingencies. If further information is required, an Eaton sales office should be consulted. Sale of the product shown in this literature is subject to the terms and conditions outlined in appropriate Eaton selling policies or other contractual agreement between Eaton and the purchaser.
-
Page 3: Table Of Contents
7 .3 Cleaning or replacing filters ..........................13 7 .4 Disposal ................................13 FREQUENTLY ASKED QUESTIONS ..................... 14 TECHNICAL DATA ..........................14 9.1 Rating plate ..............................14 9.2 Technical datasheet ............................15 CONTACT SUPPORT INFORMATION ....................15 XCHARGEIN DC 22 USER MANUAL MN192003EN May 2021 www.eaton.com... -
Page 4: Introduction
Eaton Corporation. While every care has been taken to ensure the accuracy of the information contained in this manual, Eaton assumes no liability for any error or omission. Eaton reserves the right to modify the designs of its products. -
Page 5: Scope Of The Document
Avoid touching internal or external parts normally live while the system is powered on. The notes preceded by this symbol relate to technical issues and ease of operation. The EU Directive on Waste Electrical and Electronic Equipment (WEEE). XCHARGEIN DC 22 USER MANUAL MN192003EN May 2021 www.eaton.com... -
Page 6: Cautions
The unit must be used and stored in locations with relative humidity below 95 %. The unit must be transported in conditions with relative humidity below 95 %. The unit must be used at a maximum altitude of 2000 m above sea level. XCHARGEIN DC 22 USER MANUAL MN192003EN May 2021 www.eaton.com... -
Page 7: Discover Your Xchargein Dc 22
DC 22 EV charger has been designed for a seamless use. Figure 1. Front and back views of xChargeIn DC 22 Number Description Button indicator Color touchscreen display RFID reader LED indicator Cable glands Mounting holes XCHARGEIN DC 22 USER MANUAL MN192003EN May 2021 www.eaton.com... -
Page 8: Bottom View
The maximum power that this EV charger can deliver is 22 kW. The instantaneous charging power can vary upon other variables such as grid power available, installation and car model. For those reasons, Eaton declines any responsibility on the total power delivered. -
Page 9: How To Start And Stop Charging
See next section Indicators and User interfaces. 4. To stop charging, unplug the connector from your vehicle. Usually, the connector must be released from inside your vehicle first. See the instruction manual of your vehicle. XCHARGEIN DC 22 USER MANUAL MN192003EN May 2021 www.eaton.com... -
Page 10: Indicators And User Interfaces
Waiting for user interaction Flashing blue light Charge start-up stage Breathing blue light Vehicle in charge Blue light on Vehicle charged Red light on Error in charging No light Stopped or not powered XCHARGEIN DC 22 USER MANUAL MN192003EN May 2021 www.eaton.com... -
Page 11: Color Touchscreen Display
If the bar graph is RED, there is no connection to the server. Choose your language by touching the flag. Present the RFID badge on the RFID reader to initiate authentication. Select the plug type. The state of charge of the vehicle. XCHARGEIN DC 22 USER MANUAL MN192003EN May 2021 www.eaton.com... -
Page 12: Emergency Button
DC 22 works in combination with an advanced software called Charging network manager. This is an all-in-one software management system designed to control the charging stations network. Refer to the Eaton Charging network manager user manual, available on www.eaton.com, for further details. -
Page 13: Maintenance
Check the filters on a yearly basis to ensure that they are not obstructed, and they work properly. In case of obstruction, filters need to be replaced as soon as possible and Eaton recommends not to use the unit and wait for the replacement of the filters. -
Page 14: Frequently Asked Questions
How long is the warranty period? The warranty period is 2 years. • If the problem persists, contact your local installer or your Eaton technical support representative. 9. Technical data 9.1 Rating plate To locate the rating plate on the equipment, refer to the following Figure 7. -
Page 15: Technical Datasheet
Eaton service representative. 10. Contact support information Should any technical problems arise during the operation of the charging station, contact your Eaton technical support representative for assistance. The following information should be provided when contacting the Eaton technical... - Page 16 Eaton EMEA Headquarters Route de la Longeraie 7 1110 Morges, Switzerland Eaton.com/xchargeindc22 © 2021 Eaton Eaton is a registered trademark. All Rights Reserved Publication No. MN192003EN All trademarks are property May 2021 of their respective owners.
