Summary of Contents for Eaton Green Motion DC 66

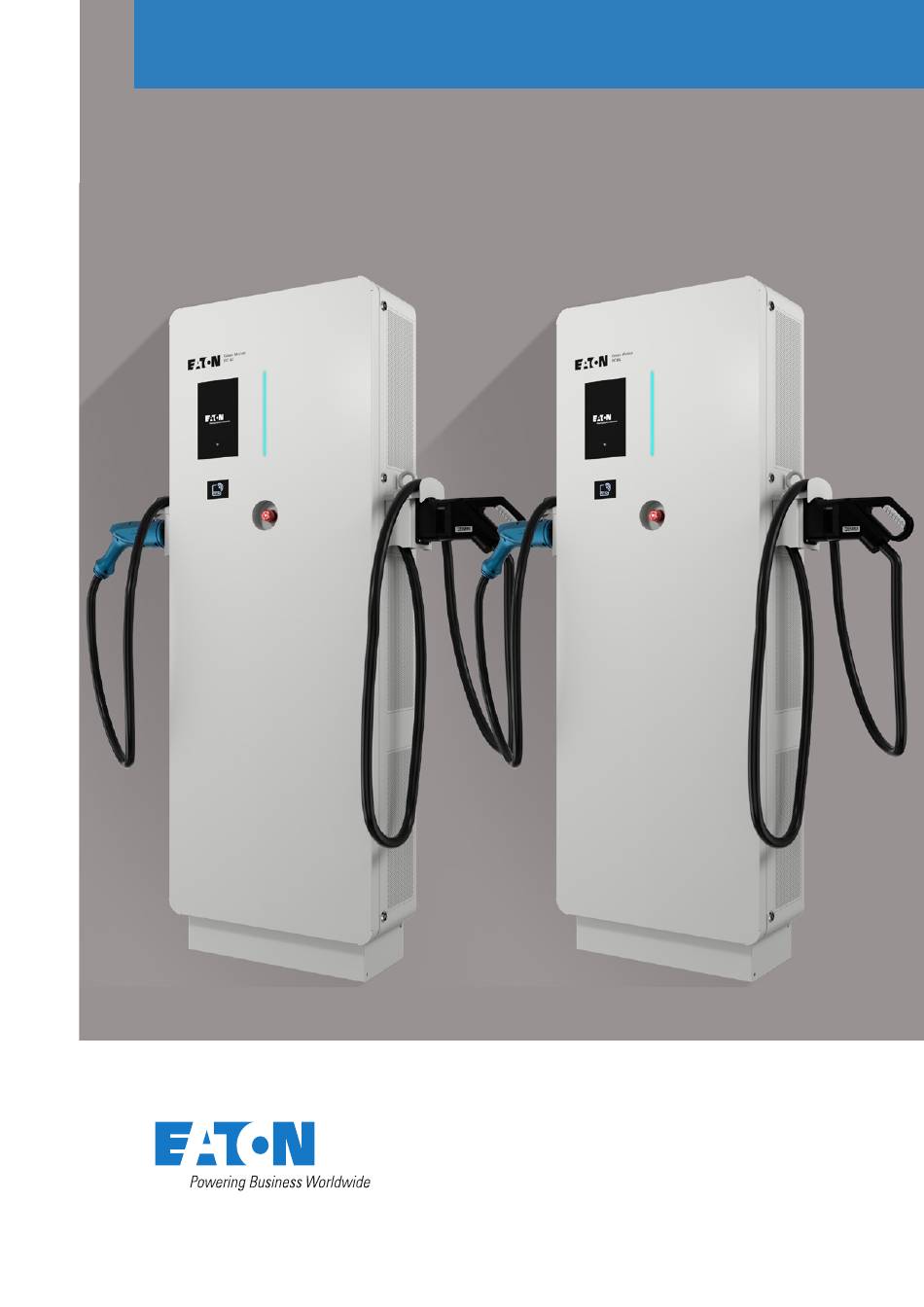

- Page 1 Green Motion DC 44/66 EV charger Green Motion DC 44/66 User manual...
- Page 2 Corporation’s (“Eaton”) experience and judgment and may not cover all contingencies. If further information is required, an Eaton sales office should be consulted. Sale of the product shown in this literature is subject to the terms and conditions outlined in appropriate Eaton selling policies or other contractual agreement between Eaton and the purchaser.
-
Page 3: Table Of Contents
7 .3 Cleaning or replacing filters ..........................14 7 .4 Disposal ................................14 FREQUENTLY ASKED QUESTIONS .....................15 TECHNICAL DATA ..........................15 9.1 Rating plate ..............................15 9.2 Technical datasheet ............................16 CONTACT SUPPORT INFORMATION ....................17 GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN March 2023 www.eaton.com... -
Page 4: Introduction
Eaton Corporation. While every care has been taken to ensure the accuracy of the information contained in this manual, Eaton assumes no liability for any error or omission. Eaton reserves the right to modify the designs of its products. -
Page 5: Scope Of The Document
1.1 Scope of the document This manual is intended for end-users of Green Motion DC 44 and Green Motion DC 66 EV chargers. It describes the operating environment, the product and its operating behavior. The document does not cover installation and deinstallation, commissioning guidance and troubleshooting. -
Page 6: Cautions
The unit must be transported in conditions with relative humidity below 95 %. The unit must be used at an altitude not exceeding 2000 m above sea level. GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN March 2023 www.eaton.com... -
Page 7: Discover Your Green Motion Dc 44/66
Figure 1. Front and back views of Green Motion DC 44/66 EV charger Description Front view Back view Color touchscreen display RFID reader LED indicator Emergency stop button GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN March 2023 www.eaton.com... -
Page 8: Types Of Cables
The maximum power that the EV charger can deliver is 44 kW or 66 kW, depending on the charger model. Varying external conditions including, but not limited to, available grid power, installation, state of battery, environmental temperature and car model, can cause output de-rating. Hence, Eaton cannot accept liability for the instantaneous charging power value. -
Page 9: How To Start And Stop Charging
Step 4. To stop charging, unplug the connector from your vehicle. Usually, the connector must be released from inside your vehicle first. See the instruction manual of your vehicle. GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN March 2023 www.eaton.com... -
Page 10: Indicators And User Interfaces
Orange pulse An update is in progress Network Error. EV charger cannot White + red dot flashing connect to the internet/backend Yellow light on Charger is set to unavailable GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN March 2023 www.eaton.com... -
Page 11: Color Touchscreen Display
Choose your language by touching the flag. Present the RFID badge on the RFID reader to initiate authentication. See Figure 3. Select appropriate plug. State of charge of the vehicle. GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN March 2023 www.eaton.com... - Page 12 After checking that there is no more risk, release the emergency stop button located on the front door. Open door detected. Door needs to be closed before starting a new charging session GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN March 2023 www.eaton.com...
-
Page 13: Emergency Stop Button
Green Motion DC 44/66 EV charger works in combination with an advanced software called Charging network manager. This is an all-in-one software management system designed to control the charging stations network. Refer to the Eaton Charging network manager user manual, available on www.eaton.com, for further details. -
Page 14: How To Put The Unit As Out Of Order
Check the filters on a yearly basis to ensure that they are not obstructed, and they work properly. In case of obstruction, filters need to be replaced as soon as possible and Eaton recommends not to use the unit and wait for the replacement of the filters. -
Page 15: Frequently Asked Questions
• How long is the warranty period? The warranty period is 2 years. • If the problem persists, contact your local installer or your Eaton technical support representative using the email address BGTechSupport@eaton.com. 9. Technical data 9.1 Rating plate To locate the rating plate on the equipment, refer to Figure 6. -
Page 16: Technical Datasheet
Figure 6. Location of the rating plate Description Rating plate 9.2 Technical datasheet The latest version of the technical datasheet is available for download from www.eaton.com/greenmotiondc44_66. CE certification is also available on www.eaton.com/greenmotiondc44_66 or contact your local Eaton service representative via: BGTechSupport@eaton.com. -
Page 17: Contact Support Information
10. Contact support information Should any technical problems arise during the operation of the charging station, contact your Eaton technical support representative for assistance using the email address BGTechSupport@eaton.com. The following information should be provided when contacting the Eaton technical support representative: Product model and serial number, •... - Page 18 Eaton Industries Manufacturing GmbH Place de la Gare 2 1345 Le Lieu, Switzerland Eaton.com/greenmotiondc44_66 Eaton is a registered trademark. © 2022 Eaton All Rights Reserved All trademarks are property Publication No. MN192005EN March 2023 of their respective owners.
