Atdec AWMS-DW Installation Manual page 4

8. Tension gauge
When installing
multiple
monitors of a
similar weight,
use the tension
gauge to make
installation faster.
9. Cable management
9.1 Plug cables into the monitor
and route the cables down the arm
using the cable hooks and clips.
9.2 Wedge cable into the central
gap and slide it down the arm.
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specifications without notice. ©20230503

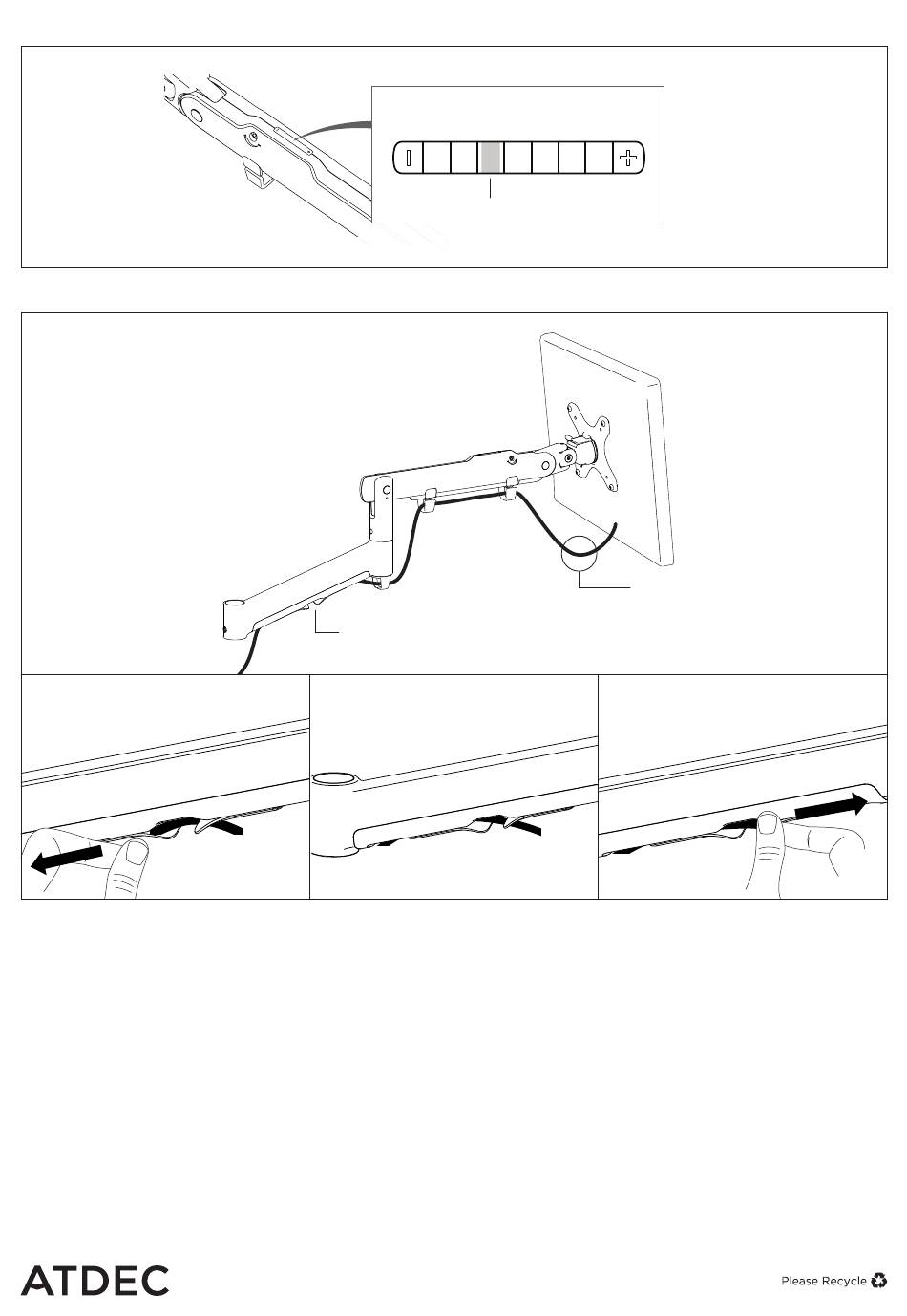

Arm Tension Gauge
Marker
See steps 9.2 to 9.4
9.3 The cable should slip into the arm
cavity
1. Set up one monitor
and record the position
of the marker on
the gauge.
2. When installing
subsequent monitors,
pre-tension the arm to
the recorded amount,
then fine-tune the
tension by following
steps 7.3 to 7.5.
Important!
Ensure enough cable slack is
given in this area to allow for
movement of the monitor.
9.4 Slide the remaining loose
cable from the central gap up
the arm.
AWMS-DW Page 4 of 4
