Atdec AWMS-DW Installation Manual page 2

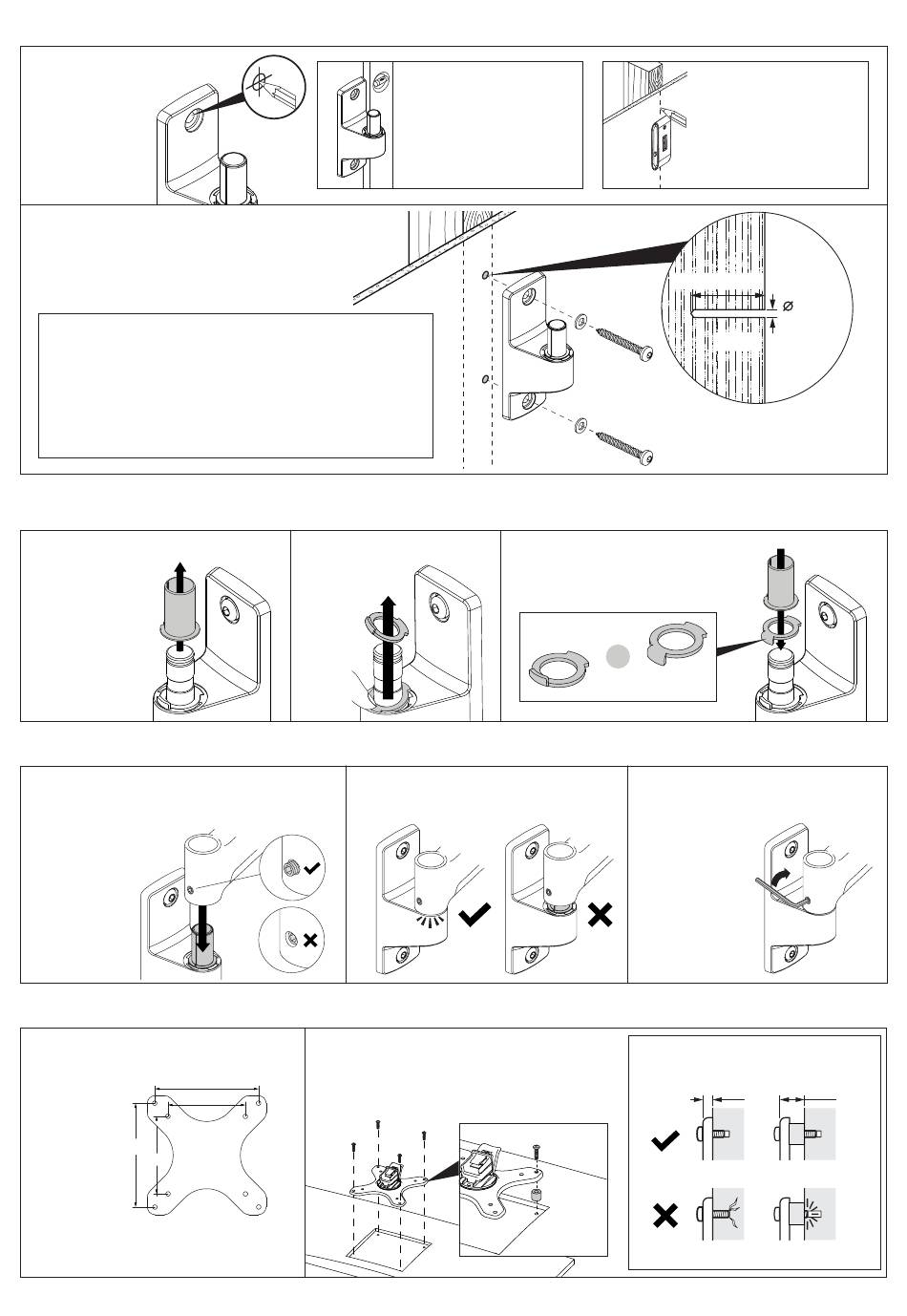

1. Mount the Wall Bracket to the Wall
Using the
Single Wall
Bracket as
a template,
mark the
two fixing
hole positions
for drilling.
Timber Stud
NOTE: Thickness of sheeting and cladding
over the timber stud, including plaster board,
should not exceed 15mm (⅝").
NOTE:
• Alternative wall constructions, such as masonry,
will require different fasteners than what is
supplied with the product.
• Selection and sourcing of alternative wall mounting
fasteners is the responsibility of the installer. See
'Important Information' above for more details.
2. (Optional) Set arm rotation to 360°
Note rotation is set to 180° by default. This will protect the wall by preventing the arm swinging into it.
2.1 Remove plastic
sleeve from wall
bracket
3. Fit arm to Single Wall Bracket
3.1 Push arm onto the wall bracket
shaft. Ensure grub screw is retracted
before doing so.
NOTE:
Ensure
plastic
sleeve is on
shaft before
fitting arm.
4. Attach VESA head to monitor
4.1 Check VESA mounting
compatibility.
100mm
100mm
75mm
NOTE: For other sizes, use a suitable
adaptor plate (sold separately).
x2
2.2 Remove
rotation ring.
2. Lift
1. Press
4.2 Attach VESA head onto monitor with
provided screws.
NOTE: Spacers may be required for curved,
recessed or uneven monitor surfaces.
75mm
NOTE: Wall bracket
must be level. Verify
using a quality spirit
level tool positioned
along the side edge
of the wall bracket.
2.3 Place rotation ring in
desired position and replace
plastic sleeve.
3.2 Ensure arm is fully
pushed onto bracket
NOTE: On a timber
stud wall, use a good
quality stud finder to
position mounting
fasteners in the
centre of studs.
70mm (2
Default
Position
180°
Default
Position
OR
180°
Default
Position
360°
OR
180°
Flipped
Position
360°
OR
Flipped
Position
360°
Flipped
3.3 Tighten the set screw with
Position
4mm Hex Key to secure the arm
in place.
NOTE: Check
the joint
rotation is
smooth after
tightening.
NOTE: Be sure to use a screw
length that suits the monitor.
Flush
Too long
3 /
")
4
4mm
( / ")
5
32
Stud
5mm 12mm
Spacer
Too short
AWMS-DW Page 2 of 4
