Atdec AWMS-DW Installation Manual page 3

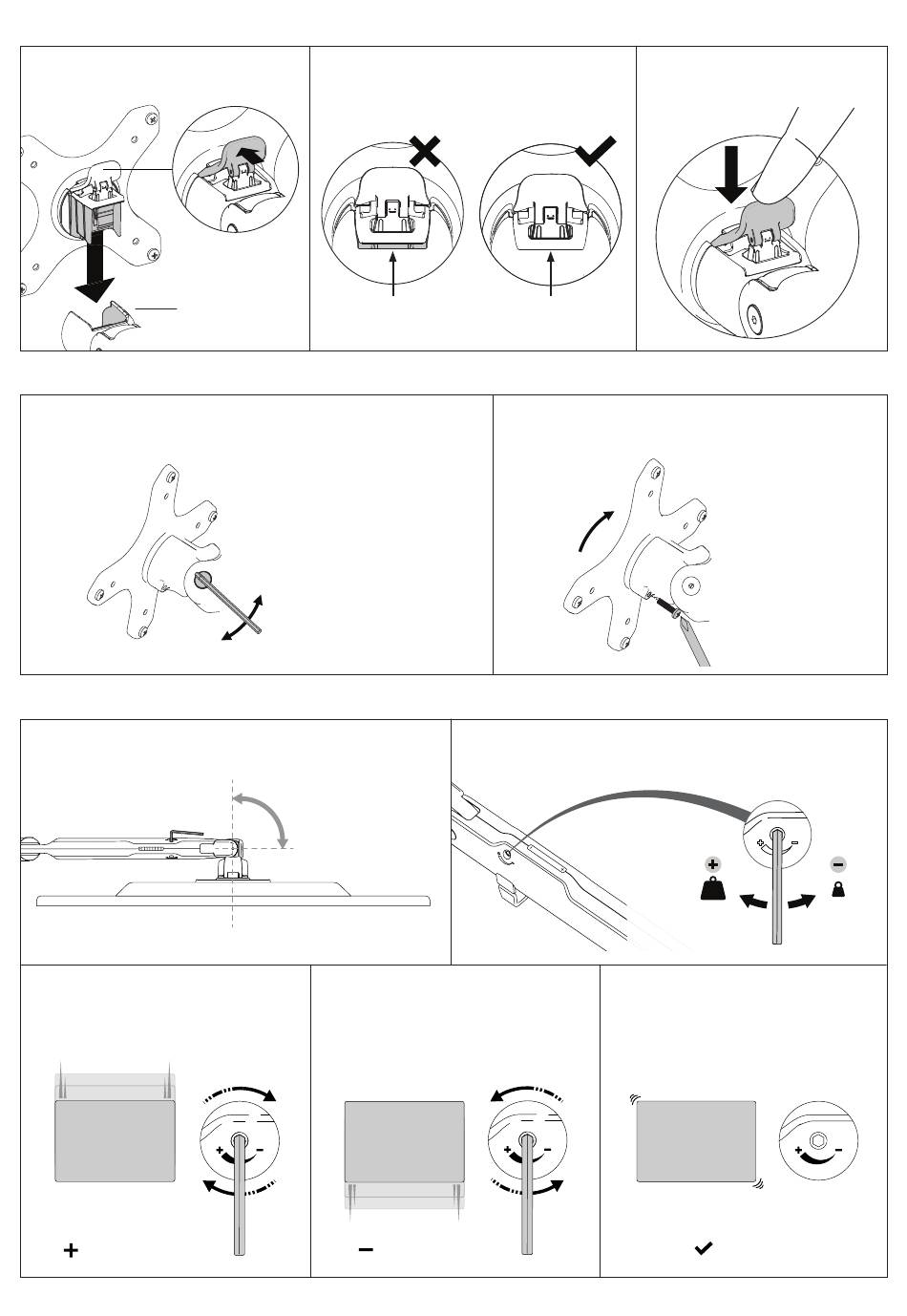

5. Mount monitor
5.1 Insert VESA head into the
monitor arm.
Monitor arm
6. Adjust tilt tension & Install security screw
6.1 Use the provided Hex Key to adjust the tilt tension until
the monitor holds in a vertical position at the end of the arm.
7. Adjust arm tension
7.1 To accurately set the tension of the arm,
position the monitor at 90 degrees
7.3 If the monitor sags or falls down,
increase the arm tension by rotating
the screw clockwise.
Monitor Falls
(from top)
Increase Tension
5.2 Ensure that the VESA head sits
flush within the monitor arm. There
should be no gap.
NOTE: Support
monitor while adjusting
Loosen
Tighten
Tighten
90°
7.4 If the monitor springs upwards
from the bottom position, decrease
the arm tension by rotating the
screw anti-clockwise.
Monitor Springs
(from bottom)
Gap No gap
6.2 (OPTIONAL) To install the optional security
screw tilt the head upwards.
Loosen
7.2 Use the allen key to adjust the arm tension to the weight
of the monitor. Follow steps 7.3 to 7.5 to set the tension.
Reduce Tension
5.3 Push the lever down to
secure it to the arm assembly.
Heavier
Monitor
7.5 If the monitor floats or hovers
in all positions the arm tension
is balanced and does not require
further adjustment.
Monitor 'Floats'
(all positions)
Balanced
AWMS-DW Page 3 of 4
Lighter
Monitor
