BC66F2332-1 Easy DEV User Guide

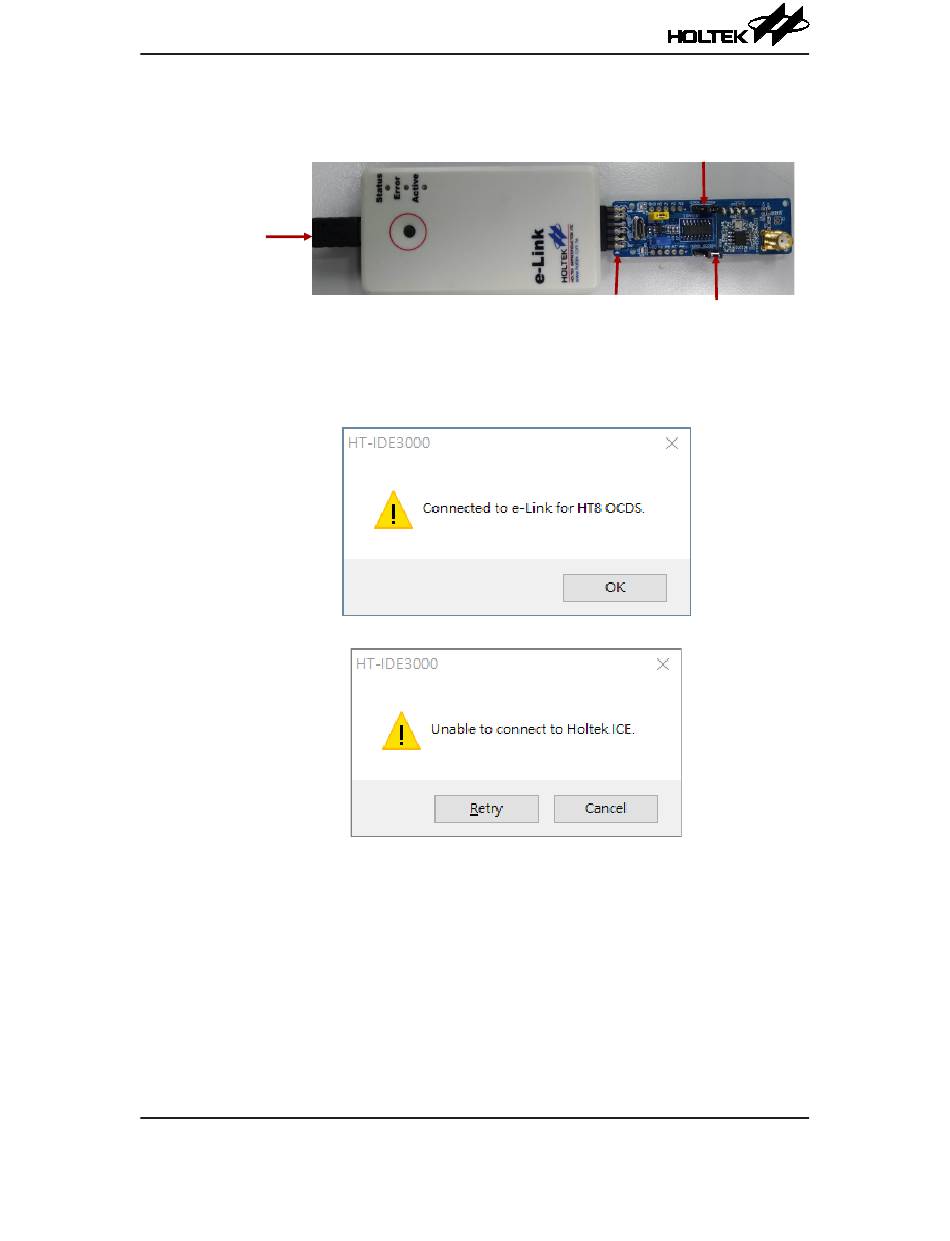

2. Hardware Connection Schematic Diagram
USB
Connects to the USB port for programming using the HT-IDE3000. If problems are encountered,
refer to the HT-IDE3000 User's Guide.
• If the connection is successful, the following message will pop up:
• If the connection fails or there is no connection, the following message will pop up:
Rev. 1.00
The jumper socket
closed to the OCDSDA
OCDS
5
The jumper socket
closed to the OCDSCK
