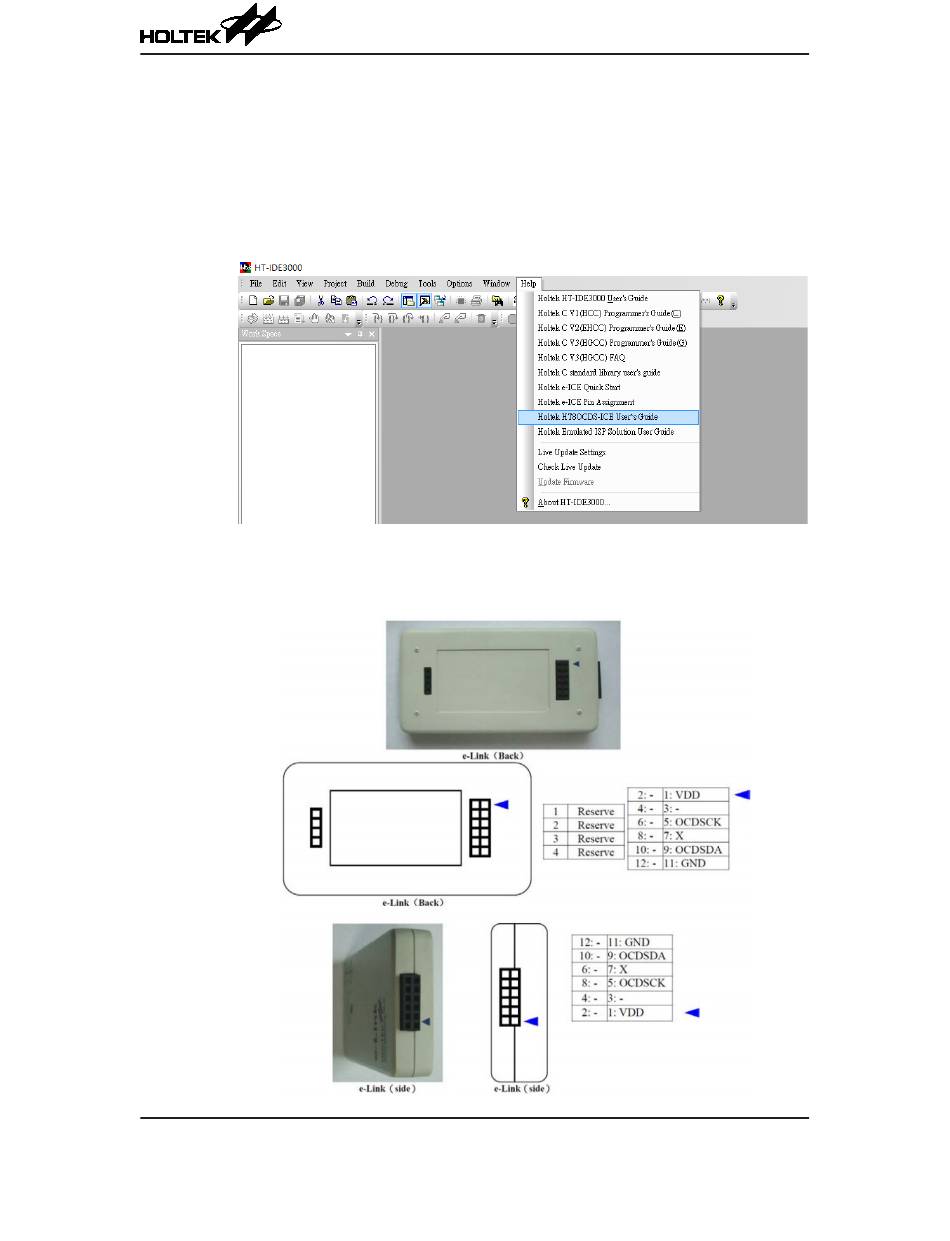

2. e-Link On-Chip Debug Support – OCDS

2.1 Software Introduction

1. Download the software from the Holtek official website to obtain the relevant information.
Download Path: MCU Development Tools – Software – ICE Software – HT-IDE3000
2. After the HT-IDE3000 installation has completed, the Holtek HT8OCDS-ICE User's Guide can
be accessed from its menu.
3. Update the e-Link to e-Link OCDS Mode using the HT-IDE3000 software.

2.2 Hardware Introduction

1. e-Link HT8OCDS Pin Assignment
