Installing the Device
2.3.2 Mounting the Device to a Panel
1. Make sure the rack mount adapters are installed on the correct side of the chas-
sis.
•
•
Note
The chassis features multiple mounting holes, allowing the rack mount adapters
to be installed up to 25 mm (1 in) from the face of the device.

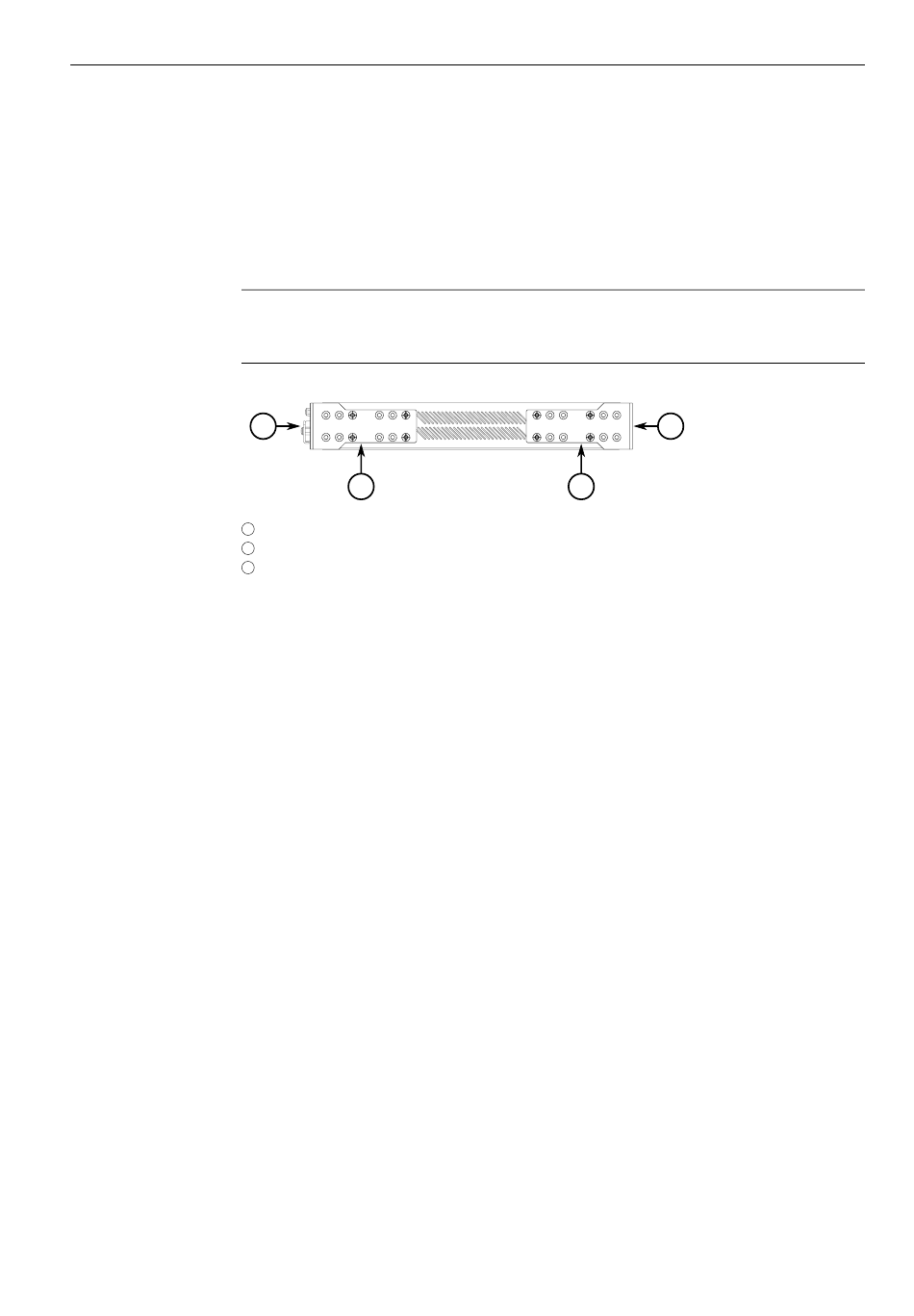

Figure 2.1
2. If required, install adapters on the opposite side of the device to protect from vi-
brations.
3. Insert the device into the rack.
4. Secure the adapters to the rack using the supplied hardware.
2.3.2

Mounting the Device to a Panel

For panel installations, the RUGGEDCOM M2100F can be equipped with panel
adapters pre-installed on each side of the chassis. The adapters allow the device to
be attached to a panel using screws.
10
All manuals and user guides at all-guides.com
To make the modules and ports accessible, install the rack mount adapters
at the rear of the chassis
To make the management ports and LEDs accessible, install the rack mount
adapters at the front of the chassis
1
3
Rear
1
Front
2
Rack Mount Adapter
3
Rack Mount Adapters
2
3
Installation Manual, 01/2020, C79000-G8976-1342-06
RUGGEDCOM M2100F
