Introduction
1.2 Description
Universal Power Supply Options
• Fully integrated, dual-redundant (optional) power supplies
• Universal high-voltage range: 88-300 VDC or 85-264 VAC
• Screw or pluggable terminal blocks for reliable, maintenance-free connections
• CSA/UL 60950-1 safety approved to 85 °C (185 °F)
1.2

Description

The RUGGEDCOM M2100F features various ports, controls and indicator LEDs on the
display panel for connecting, configuring and troubleshooting the device. The dis-
play panel can be located on the rear, front or top of the device, depending on the
mounting configuration.
1
2
3
4
5
6
7

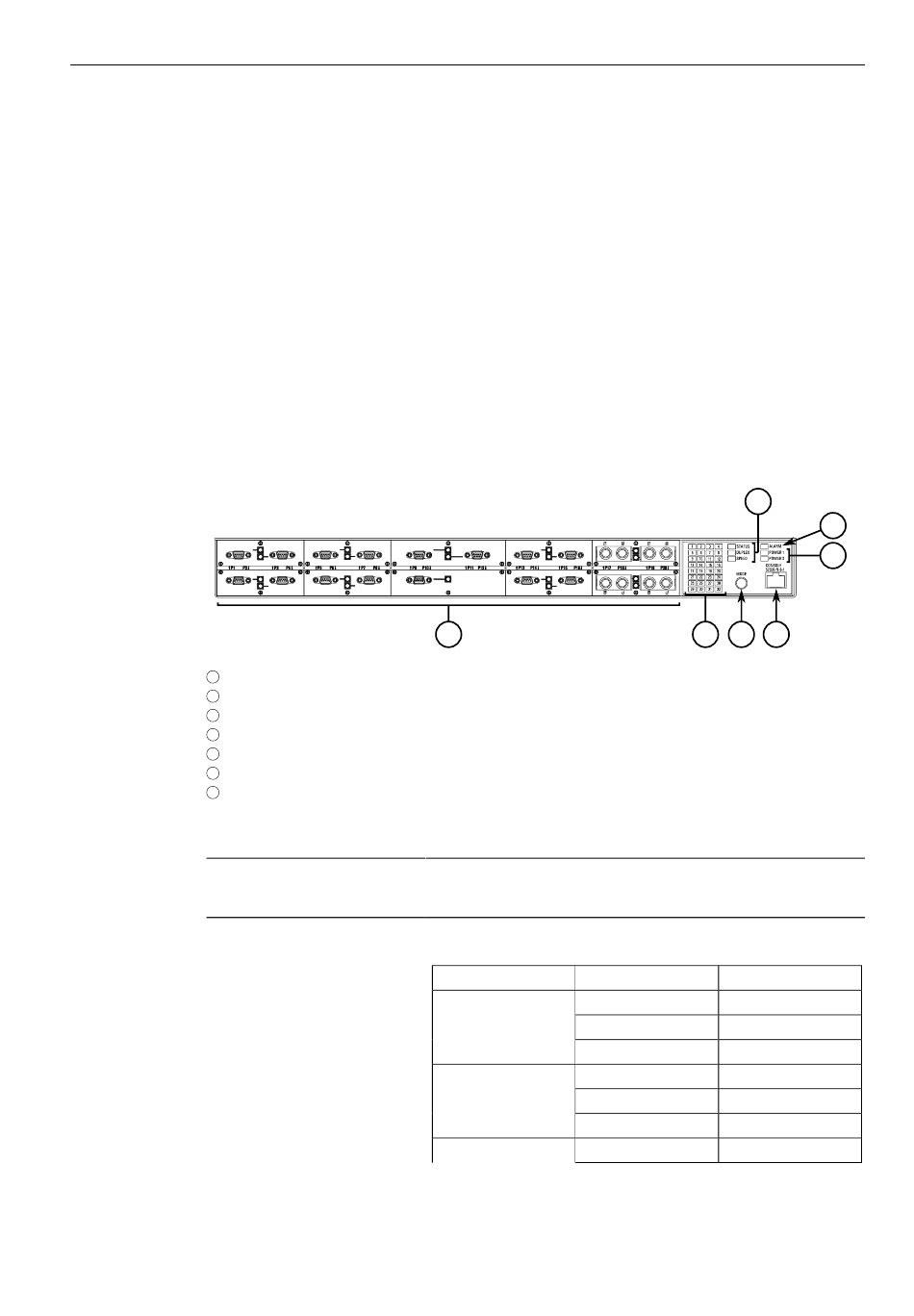

Figure 1.1
Communication Ports
Port Status Indicator LEDs
2
All manuals and user guides at all-guides.com
Fiber or Copper Ethernet Ports
Port Status Indicator LEDs
Mode Button
RS-232 Serial Console Port (RJ45)
Display Mode Indicator LEDs
Alarm Indicator LED
Power Module Indicator LEDs
RUGGEDCOM M2100F
1
Ports for communicating with other devices or accessing the
RUGGEDCOM RUGGEDCOM M2100F operating system are de-
scribed in "Communication Ports (Page
Port status indicator LEDs indicate the operational status of each
port, dependent on the currently selected mode.
Mode
Status Green (Solid)
Green (Blinking)
Off
Duplex Green
Orange
Off
Speed Green (Solid)
5
2 3 4
21)".
Color/State Description
Link detected
Link activity
No link detected
Full duplex mode
Half duplex mode
No link detected
100 Mbps
RUGGEDCOM M2100F
Installation Manual, 01/2020, C79000-G8976-1342-06
