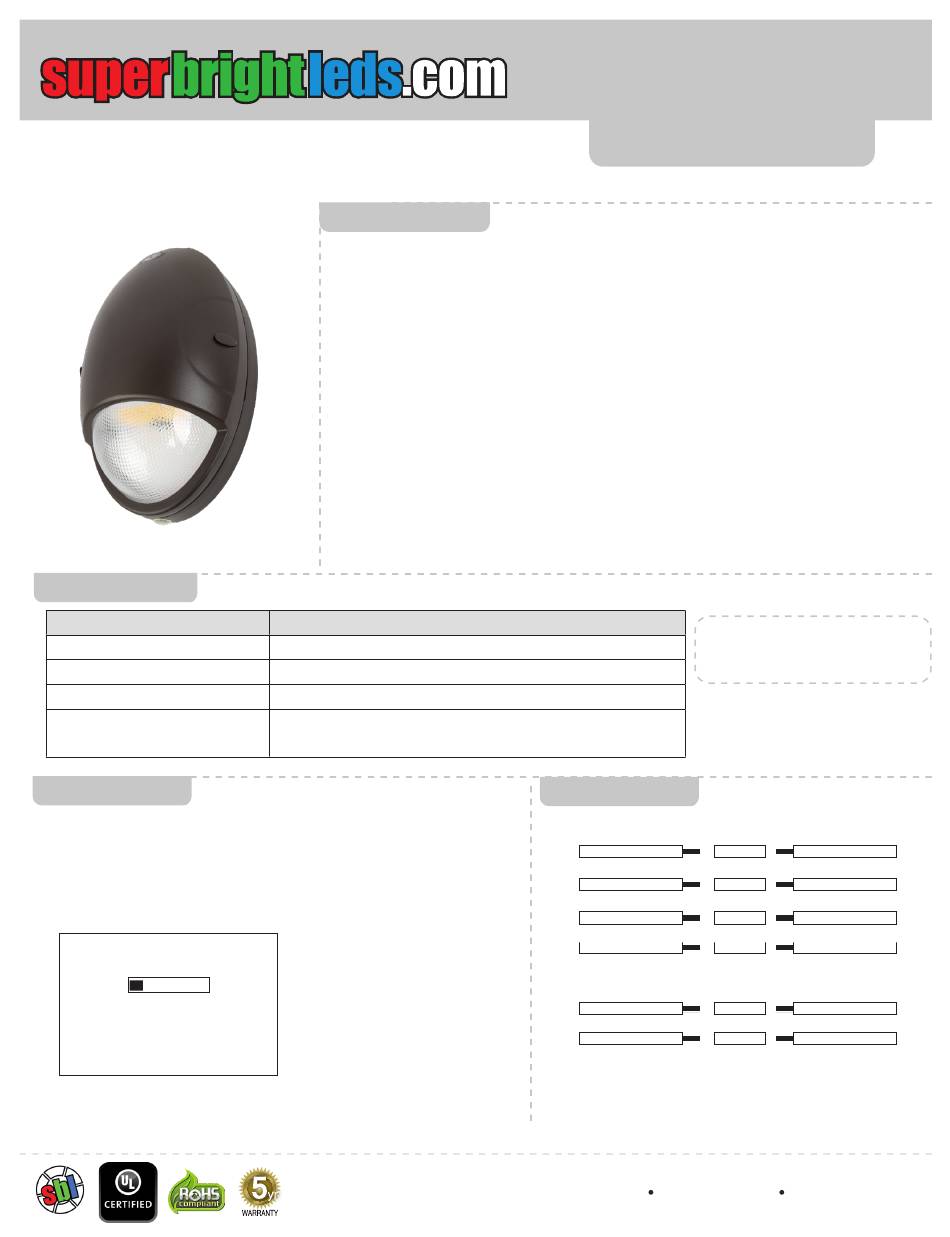

superbrightleds MWPE Series User Manual

Important: Read all instructions prior to installation.
LED Teardrop Mini Wall Pack with Emergency Backup

Specifications

Model
Ambient Operating Temperature
Environmental Rating
Dimming
Photocell Operation

CCT Selection

To select CCT, open the wall pack and use internal switch
to set the desired color temperature. This process should
be done prior during installation. If adjustment is needed
after installation, make certain to remove supply power
before opening the wall pack or making any changes.
3500K 4000K 5000K

Safety and Notes

• Product should be installed and serviced by in accordance with applicable
national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and
circuit breakers are switched off before performing any installation or wiring
procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the
fixture. Failure to properly support fixture may result in damage or injury, for
which the manufacturer does not assume responsibility.
• Photocell sensor can be disabled by unplugging it and capping the connector
that was attached to the sensor.
• Do not connect emergency battery until all other possible mounting and wiring
are complete. Make certain supply power is off when initially connecting the
emergency battery.
• Emergency battery requires at least 24 hours of charge time between uses
or before initial testing.
MWPE-SW15WD-BRP
32°–113° F (0°–45° C)
0–10 V
Light will turn on when the ambient light level falls below 30 lx
and will turn off when the ambient light level exceeds 130 lx.
Rev Date: V2 07/14/2022
4400 Earth City Expy, St. Louis, MO 63045
IP65

Wiring Diagram

Line
Line
Neutral
Ground
Dim (+)
Dim (-)
User Manual
MWPE Series
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
120–277 VAC Input
Black
L L
L L
White
N N
Yellow / Green
GND GND
0–10 V Dimming
Purple
+ +
Gray/Pink
- -
