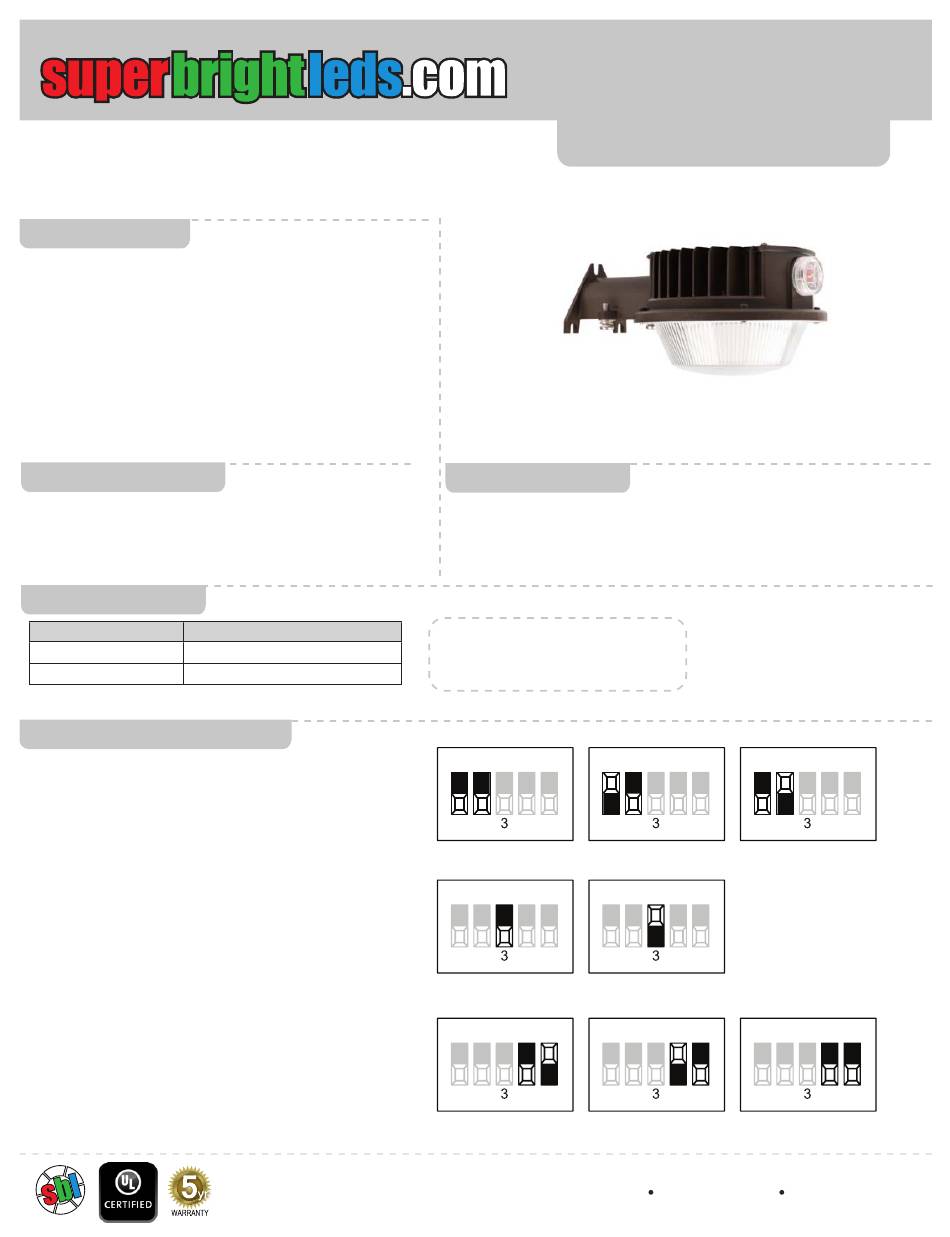

superbrightleds DDAL-SW3B Series User Manual

Important: Read all instructions prior to installation.
Field-Selectable Wattage and CCT LED
Dusk-to-Dawn Area Light

Safety and Notes

• Product should be installed by a certified electrician in
accordance with applicable national, state, and local
building and electrical codes.
• To reduce the risk of electric shock, ensure that the main
power source and circuit breakers are switched off before
performing any installation or wiring procedures.
• Avoid looking directly into the lamp when illuminated.
• Ensure all mounts are securely attached and will support
the weight of the fixture. Failure to properly support
the fixture may result in damage or injury, for which the
manufacturer does not assume responsibility.

Photocell Operation

Included photocell sensor switches light on when ambient
light goes below 40 lx, and off when ambient light goes back
above 125 lx.

Specifications

Model
Environmental Rating
Operating Temperature

CCT and Wattage Selection

CCT and wattage are selected using the DIP
switch on the front of the light.
.30in
7.62mm
DDAL-SW3Bx
IP65
-40°–113° F (-40°–45° C)
Wattage Selection
Photocell
CCT Selection

Parts Included

- area light
- pole mount bracket
- access plate (for wall installation)
- hardware kit
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
ON ON
1 2 4 5
100% 80%
ON ON
1 2 4 5
OFF ON
ON ON
1 2 4 5
5000K 4000K
Rev Date: V1 11/01/2021
4400 Earth City Expy, St. Louis, MO 63045
User Manual
DDAL-SW3Bx
DDAL-SW3B60
ON
1 2 4 5 1 2
60%
1 2 4 5
ON
1 2 4 5 1 2
3000K
866-590-3533
4 5
4 5
superbrightleds.com
