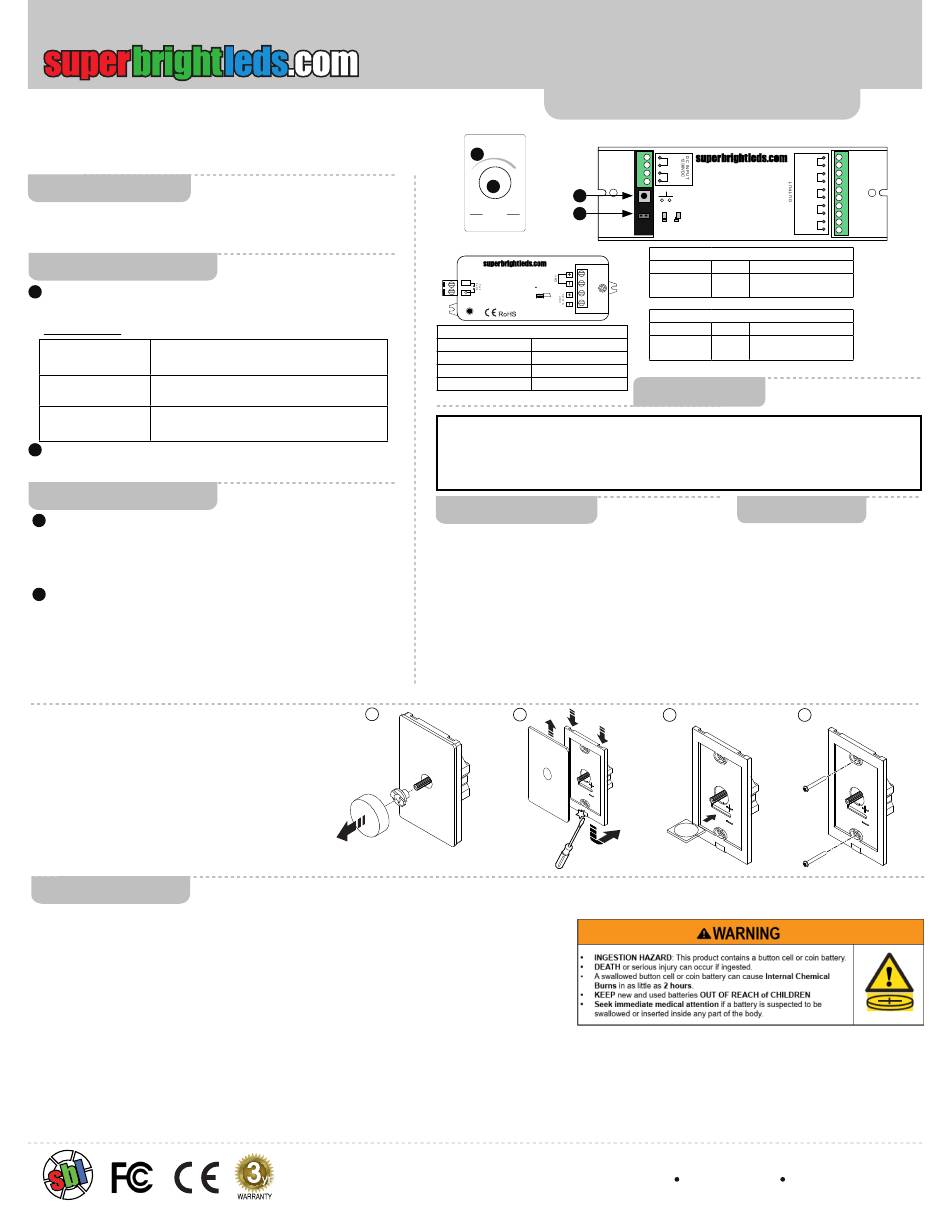

Important: Read all instructions prior to installation.
Wireless LED Dimmer Wall Switch
for EZ Dimmer Series Controllers
Parts Included
1 - 868MHz LED Dimmer Wall Switch
1 - 3V CR2032 Battery with Tray
2 - Mounting Screws
Wall Switch
1. On/Off/Brightness Push Dial
1
Press dial for remotely activating/controlling light strips.
Dial Actions:
Turns light on/off. If the Controller Pairing Switch has
Single Press
been depressed, a single dial press on the Wall Switch
pairs the Switch to the Controller
Left / Right Rotate
Dimming Mode: Controls LED intensity level.
Hold Press
Increases LEDs to maximum intensity
2. Dimming Level
2
Visual key representing the dial intensity level.
Controller
1. Pairing Switch
3
To pair Wall Switch to Controller, press the Controller pairing
switch once and then press Wall Switch dial. Lights will blink
once to indicate pairing. To unpair Wall Switch(es), press and
hold Controller Pairing Switch until lights blink twice.
2. Master/Slave Jumper
4
Set Jumper to Master for main Controller. Master emits
syncronization signal to Slave Controllers. Set Jumper to Slave
to receive syncronization signal from Master Controller. Use
Master for the first Controller in each zone. To acheive precise
syncronization between Controllers in one zone, set additional
Controllers to slave.
Wall Switch Installation Steps
1. Pull off dial and collar from front plate.
2. Using a flat head screwdriver, pry rear switch
housing away from front plate.
3. Insert battery with tray into slot, matching the
polarity on the battery with the slot labels.
4. Fasten wall switch using mounting screws.
5. Reinstall front plate, collar and dial.
Battery Safety
• Remove and immediately recycle or dispose of used batteries according to local regulations and keep
away from children. Do NOT dispose of batteries in household trash or incinerate.
• Even used batteries may cause severe injury or death.
• Call a local poison control center for treatment information.
• Non-rechargeable batteries are not to be recharged.
• Do not force discharge, recharge, disassemble, heat above (manufacturer's specified temperature rating)
or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.
• Ensure the batteries are installed correctly according to polarity (+ and -).
• Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or
rechargeable batteries.
• Remove and immediately recycle or dispose of batteries from equipment not used for an extended period
of time according to local regulations.
• Always completely secure the battery compartment. If the battery compartment does not close securely,
stop using the product, remove the batteries, and keep them away from children.
EZD-1C-WM
Wall Switch
2
1
Push ON/OFF
EZD-1C8A Controller
EZD-1C8A
Easy Dimmer Series
PRI:
Uin=12-36VDC
GND
lin=8.3A
SEC:
tc=75ºC
Uout=1x(12-36)VDC
0.5-2.5mm²
Iout=1x8A
Pout=1x(96-288)W
6-7mm
TEMP RANGE: -20ºC-+50ºC
Pairing Switch
EZD-1C-WM Wall Switch
Operating Voltage
Battery Size
Operating Frequency
FCC ID#
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation. Any changes
or modifications in construction of this device which are not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Set-Up Instructions
Wall Switch
1. Follow illustrated steps below to remove the Battery Tray.
Insert the 3V battery included with the Wall Switch.
Controller
1. Make sure power to the Controller is disconnected.
2. Using a small flathead screwdriver, loosen the labeled
terminal screws visible on the top of the Controller.
3. Matching light strip wires with labeled slots on the
Controller, insert wires and tighten terminal screws. Be sure
wire conductor, not wire insulation, is secured
in terminal.
4. Turn power on and wait until light strip illuminates. If it does
not come on, check light strips and wiring connections.
1
2
Rev Date: V2 02/14/2025
4400 Earth City Expy, St. Louis, MO 63045
TEMP RANGE: -20ºC-+50ºC
MASTER
SLAVE
Instructional Sheet
Part Number:
EZD-1C-WM
Controller: EZD-4C8A or EZD-1C8A
EZD-4C8A Controller
V+
EZD-4C8A
V-
PRI:
Uin=12-36VDC
lin=8.3A
3
SEC:
Pairing
Uout=1x(12-36)VDC
Switch
Iout=4x8A
4
Pout=1x(96-288)W
TEMP RANGE: -20ºC-+50ºC
MASTER
SLAVE
EZD-4C8A Controller
Input Voltage Current
12~36 VDC
4 X 8A 384W(12V) 768W(24V)
EZD-1C8A Controller
Input Voltage Current
12~36VDC
1 X 8A
3 VDC
CR2032
868 MHz
2ACUQ2836
FCC Statement
3
866-590-3533
W
V+
Easy Dimmer Series
CH1
CH2
CH3
CH4
Output Wattage
1152W(36V)
Output Wattage
96W(12V) 192W(24V)
288(36V)
Safety
•
DO NOT install with
power applied to
Controller.
•
DO NOT expose
the Wall Switch or
Controller to moisture.
4
superbrightleds.com
Need help?
