Important: Read all instructions prior to installation.
LED Canopy Light
Summary
This LED canopy light is great for parking garage lighting, gas station
lighting, drive-thru lighting, tunnel lighting, train stations, and covered
walkways. Using 90 LEDs (3 groups of 30), the canopy light emits
17,000 lumens of powerful natural white illumination in a square
configuration. The 150-watt LED light is a replacement for traditional
320-watt metal-halide. A die cast aluminum housing with white powder
coating and an impact-resistant PMMA lens with UV inhibitors protect
internal components and LEDs. The durable fixture can be easily surface
mounted with its removable bracket or flush mounted with an optional
frame, FLD-FM2 (sold separately).
Included Parts
Canopy Light (FLD-CNL-60005-150W)
1 - LED Canopy Light
1 - Mounting Bracket
4 - Mounting Bracket screws
Installation
WARNING:
• This product should be installed by a fully certified electrician in
accordance with local building and electrical codes.
• Due to risk of electric shock, ensure that the main power
source and circuit breakers are switched off before performing
any installation or wiring procedures.
• Do not install insulation within 2"(51mm) of any part of the
panel light fixture.
• Ensure the junction box is securely mounted and will support
the weight of the fixture. Failure to properly support the fixture
during installation may cause damage or injury, for which the
manufacturer is not responsible.
ASSEMBLY
1. Loosen Mounting Bracket Screws and Remove Mounting
Bracket from Canopy Light before proceeding.
2. Pull supply wires through Mounting Bracket. Attach the
mounting bracket to the junction box using Jbox provided
screws.
3. Make all power connections. Connect black to black (Line),
white to white (Neutral), and green to green (Ground).
4. Push connected wires through center hole of Mounting
Bracket.

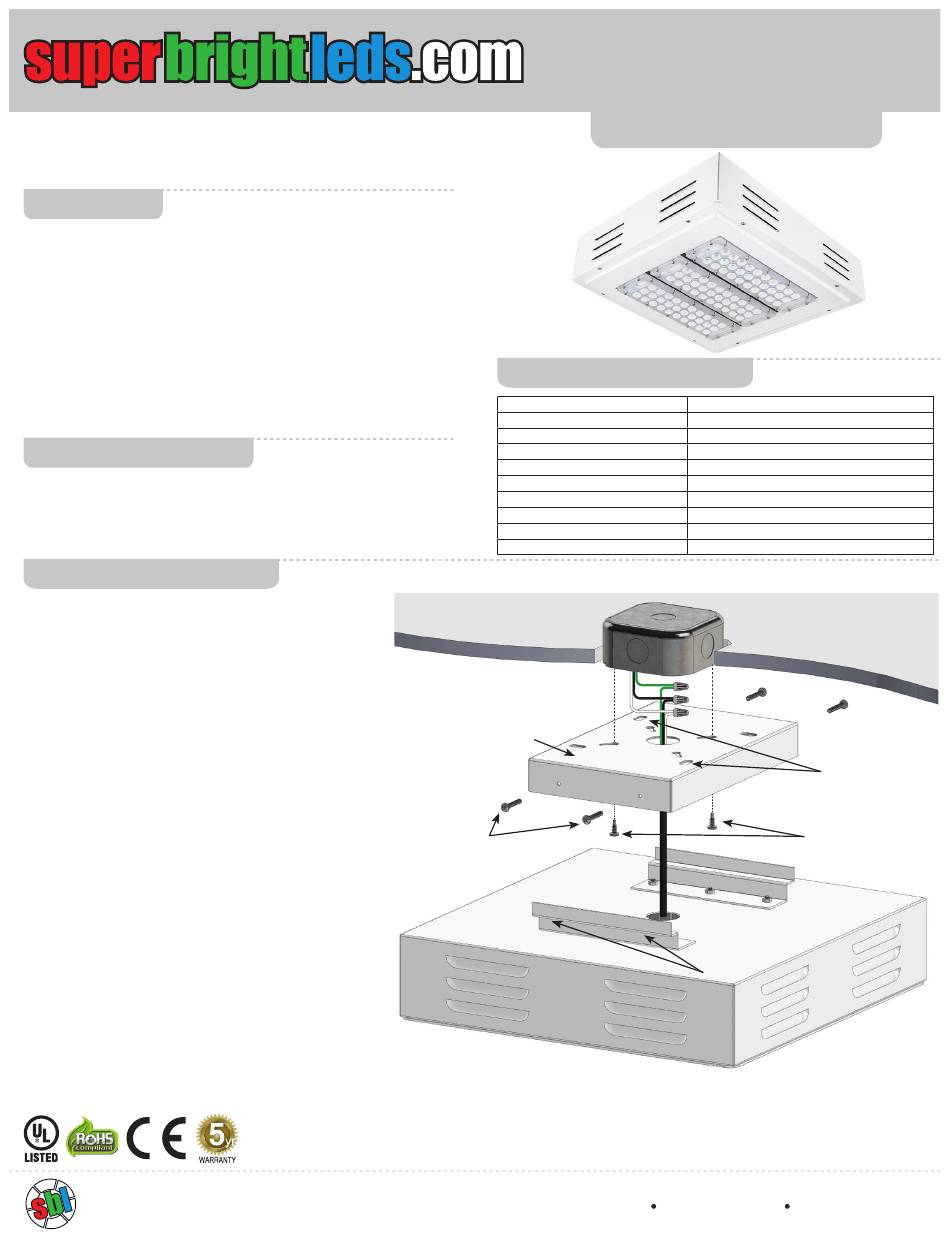

5. Align the light with the Mounting Bracket as shown
in Figure 1 and lift the light, insuring Step Bracket fits into the
Mounting Bracket. Make sure it is flush to the top of Canopy
Light. Tighten the 4 Mounting Bracket screws until snug. Screws
must go under the first level of the step bracket as shown in
Figure 1.
5yr
Specifications
Input Voltage
Total Power
Lumens
Color Temperature
CRI
Efficacy
Temperature Range
Dimensions
Weight
Warranty
Ceiling
Mounting Bracket
Mounting Bracket
Screws
Canopy Light
4400 Earth City Expy, St. Louis, MO 63045
User Manual
Part Number:
FLD-CNL-60005-150W
100~277 VAC
150 Watts
17000 lm
5000K
113 lm/w
-40° ~ 140° F (-40° ~ 60°C)
L15" x W13.94" x H5.24" (38 x 35.4 x 13.3cm)
19 lbs 8oz (8.85kg)
5 years
Jbox
Step Bracket (Mounting
Screw Contact Point)
Figure 1.
866-590-3533
75
Additional
Mounting Holes
Junction Box
Screws
