superbrightleds WPR Series User Manual

Important: Read all instructions prior to installation.

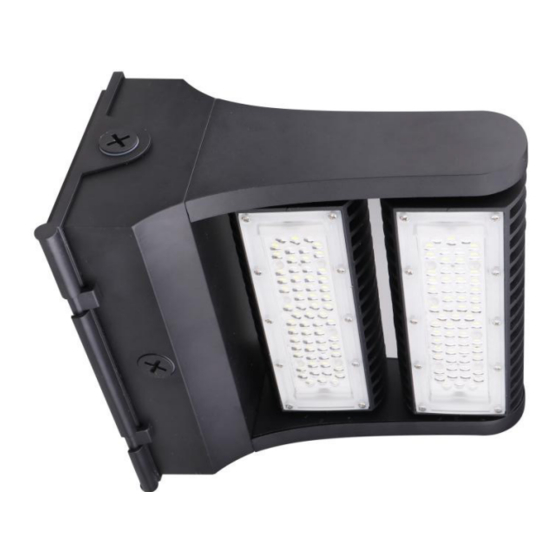

Rotatable LED Wall Pack
WPR2-50K120-FST1-BRP
Wiring Diagram
120–277 VAC Input
Line
Line L
Neutral
L
N
Neutral
Ground
N
Ground GND GND
GND GND
0–10 V Dimming
Dim (+)
Dim (+) +
Dim (-)
+
Dim (-) -
-
Opening Fixture
Safety and Notes
• Product should be installed and serviced by a certified electrician in accordance
with applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and circuit
breakers are switched off before performing any installation or wiring procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the fixture.
Failure to properly support fixture may result in damage or injury, for which the
manufacturer does not assume responsibility.
• Photocell sensor on 25 W and 40 W models can be disabled by unplugging it and
capping the connector that was attached to the sensor. 60 W, 80 W, and 120 W
models will require rewiring to bypass the sensor in order to disable it.
Black
L Black
White
L
N
White
Yellow / Green
N
Yellow / Green
Purple
+ Purple
Gray
+
- Gray
-
Specifications
Model
Operating Temperature -4°–113° F (-20°–45° C)
IP Rating
Dimming
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Rev Date: V1 10/19/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
WPR2 / WPRCCT
WPRx-x-xST1-BRP
IP65
0–10 V
866-590-3533
4.64 in
3.66 in
[118 mm]
[93 mm]
