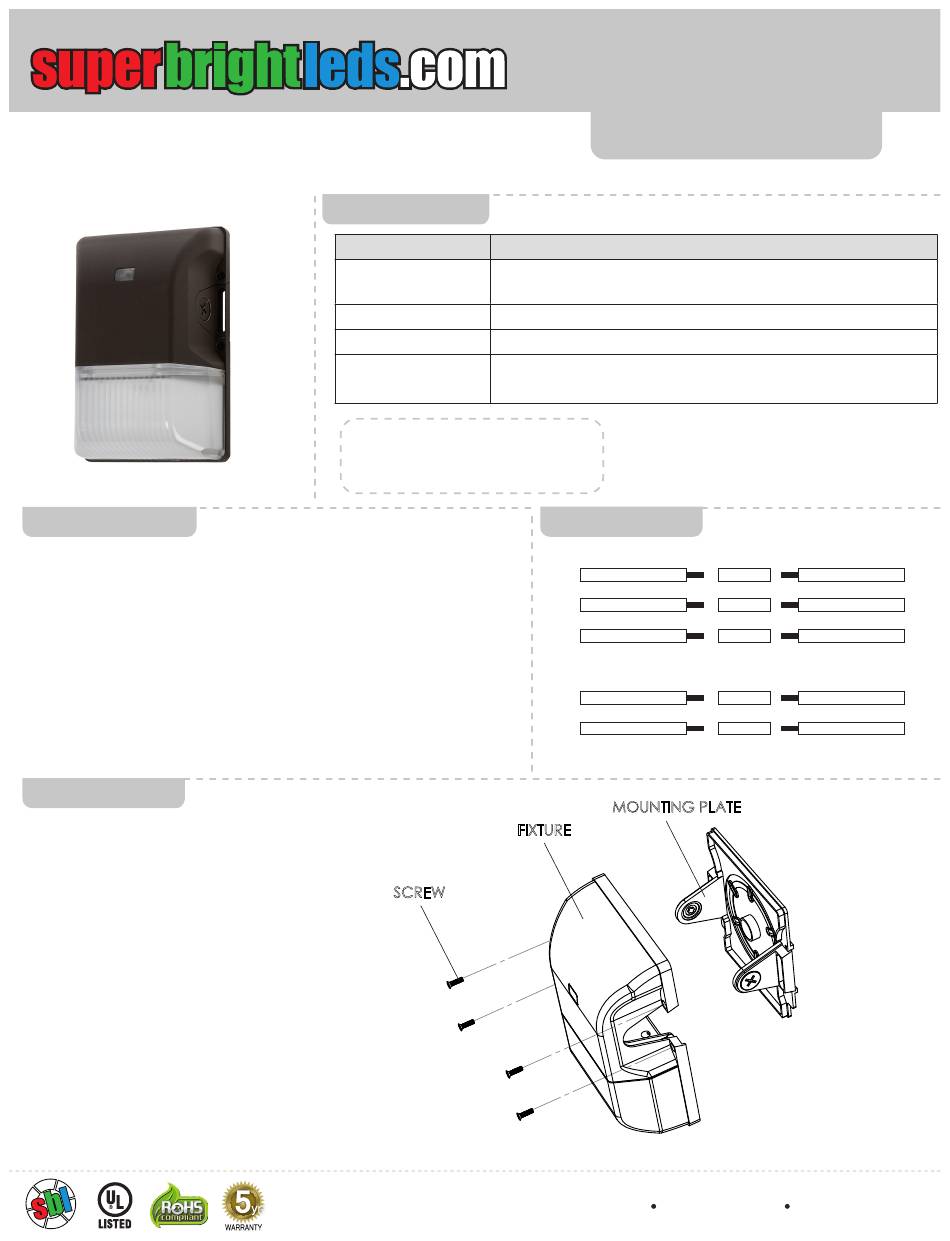

superbrightleds MWP2-SW Series User Manual

Important: Read all instructions prior to installation.
Field-Selectable CCT LED Wall Pack
Safety and Notes
• Product should be installed and serviced by in accordance with applicable
national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source and
circuit breakers are switched off before performing any installation or wiring
procedures.
• Avoid looking directly into lamp when illuminated.
• Ensure all mounts are securely attached and will support the weight of the
fixture. Failure to properly support fixture may result in damage or injury, for
which the manufacturer does not assume responsibility.
• Photocell sensor can be disabled by unplugging it and capping the connector
that was attached to the sensor.
CCT Selection
To set CCT, open the wall pack and use
internal switch to select the desired color
temperature. This process should be done
prior to installation. If adjustment is needed
after installation, make certain to remove
supply power before opening the wall pack
or making any changes.
Specifications
Model
Ambient Operating
Temperature
Environmental Rating
Dimming
Light will turn on when the ambient light level falls below 25 lx and
Photocell Operation
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
SCREW
Rev Date: V1.0 08/14/2020
4400 Earth City Expy, St. Louis, MO 63045
User Manual
MWP2-SW Series
MWP2-SW50Kx-SLFBR
-4°–113° F (-20°–45° C)
0–10 V
will turn off when the ambient light level exceeds 130 lx.
Wiring Diagram
Line
Neutral
Ground
Dim (+)
Dim (-)
MOUNTING PLATE
FIXTURE
866-590-3533
IP65
Black
L L
White
N N
Yellow / Green
GND GND
Purple
+ +
Gray
- -
superbrightleds.com
MOUNTING PLATE
SCREW
FOAM GA
