Eaton BiWire Ultra Quick Start Manual

www.acornfiresecurity.com
Technical data
BiWire Ultra range:
(Conventional compatible)
14
0359-CPR-00419
Compliance EN54-3; EN54-23:2010
Table 1. Specification
Feature
Supply voltage (BiWire alarm) 25.5~35 Vdc
Supply voltage (BiWire standby) 18~25.5 Vdc
Supply voltage (conventional) 18~35 Vdc
Cable size/type
Standby current
(BiWire mode)
Current (high volume)
Current (low volume)

1a. Mounting base (IP21C)

60

2. Connection details

OUT IN +VE -VE
SCREEN ZONE OUT
Screen must be continuous along entire length of loop.
www.acornfiresecurity.com
25-12766-E Effective September 2014

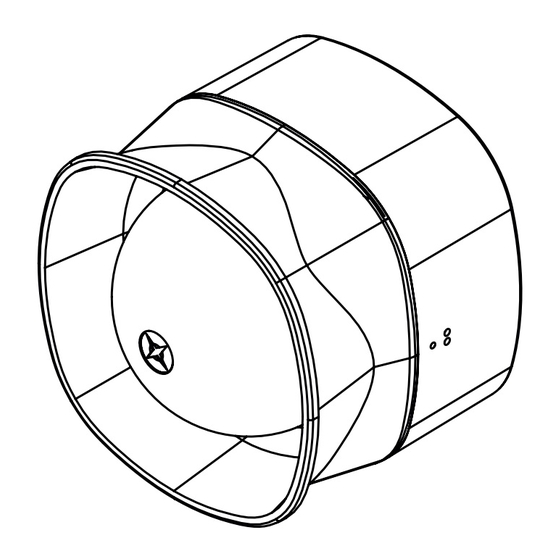

Wall sounder/beacon
Wall sounder
Value
2
0.5~2.5mm/FIRETUF, FP200
or MICC
<15μA
Sdr only = 4.7mA, AV = 11mA
Sdr only = 2.6mA, AV = 8.7mA
Drill position for rear
cable entry
(i) Drill required holes for
cable gland fixing.
(ii) Drill out the required
fixing holes.
(iii) Fix to mounting surface
using two suitable screws.
Drill position for
glands
+VE -VE
ZONE IN
FXN009SB/EF009SB
FXN009SBWP/EF009SBWP
FXN009/EF009
FXN009WP/EF009WP
Wall sounder/beacon IP66
Wall sounder IP66
Feature Value
Sound output (high volume) 99 +/- 3dB(A) : All tones
Sound output (low volume) 89 +/- 3dB(A) : All tones
Operating temperature -25 to +70ºC (93% ± 3%RH)
Material ABS FR plastic
Environmental category Type A= IP21C/ Type B= IP66
Tones 3, See section 3
Flash rate 0.5Hz (
Flash on period 60ms (

1b. Mounting base (IP66C)

97 (IP66)
62 (IP33)
(i) Drill required holes for cable gland fixing (top or bottom)
and ensure cables are correctly sealed for IP66 integrity.
(ii) Fix to mounting surface using four suitable screws.
Note
All products meet minimum requirements of IP33C in
accordance with EN54-3.

3. Switch position meaning

On
Off
1
1, Sounder on/off (AV version only)
2, Volume high (Off)/low (On)
{
3, Tones Continuous: 3=On, 4=On (984Hz)
Bell: 3=On, 4=Off (1440Hz)
4, Tones
Alternating: 3=Off, 4=On (644/984Hz)
5, Mode: On = BiWire, Off = Conventional
)
N/A to FXN009(WP), EF009(WP)
)
N/A to FXN009(WP), EF009(WP)
Drill position
for glands
1 2 3 4 5
