Eaton BiWire Ultra EF009SB Installation Instructions

EF009SB , EF009SBWP
1
BiWire Ultra Range (Conventional compatible)
Installation Instructions
Specification
Supply voltage (BiWire alarm)
Supply voltage (BiWire standby)
Supply voltage (conventional)
Cable size/type
Standby current (BiWire mode)
Current (high volume) Sdr only =
Current (low volume) Sdr only =
Sound output (high volume)*
Sound output (low volume)*
Operating temperature
Material
Environmental category
Tones
Flash rate
Flash on period
The devices have no serviceable component so no maintenance
is required. *For full tone and polar node SPL data please refer
to M14-002.
1a. Mounting base (IP21C)
60
2. Connection details
OUT IN
SCREEN ZONE OUT
Screen must be continuous along entire length of line.
, EF009 , EF009WP
2 3
25.5~35 Vdc
18~25.5 Vdc
18~35 Vdc
0.5~2.5mm /FIRETUF, FP200 or MICC
2
<15μA
4.7mA, AV = 11mAx
2.6mA, AV = 8.7mA
89 +/- 3dB(A) : All tones
99 +/- 3dB(A) : All tones
89 +/- 3dB(A) : All tones
-25 to +70ºC (93% ± 3%RH)
ABS FR plastic
Type A= IP21C/ Type B= IP66
3, See section 3
0.5Hz (N/A to EF009(WP))
60ms (N/A to EF009(WP))
Drill position for rear
cable entry
(i) Drill required holes for
cable gland fixing.
(ii) Drill out the required
fixing holes.
(iii) Fix to mounting surface
using two suitable screws.
Drill position for
glands
+VE -VE +VE -VE
ZONE IN
4

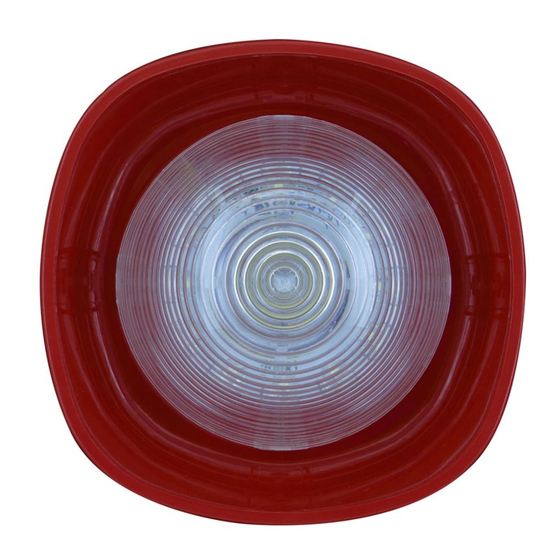

Wall sounder/beacon
Wall sounder
1b. Mounting base (IP66C)
97 (IP66)
62 (IP33)
(i) Drill required holes for cable gland fixing (top or bottom)
and ensure glands are suitable for required IP rating.
(ii) Fix to mounting surface using four suitable screws.
Note
All products meet minimum requirements of IP33C in
accordance with EN54-3.
3. Switch position meaning
On
Off
1, Sounder on/off (AV version only)
2, Volume high (Off)/low (On)
3, Tones
4, Tones
5, Mode: On = BiWire, Off = Conventional
INSTALLATION INSTRUCTIONS 25-12766-G October 2019
Effective October 2019
DoP0010
DoP0011
DoP0012
DoP0013
EN54-3:2001+A1:2002+A2:2006
EN54-23:2010
Wall sounder/beacon IP66
Wall sounder IP66
Drill position
for glands
1 2 3
1
{
Continuous: 3=On, 4=On (984Hz)
Bell: 3=On, 4=Off (1440Hz)
Alternating: 3=Off, 4=On (644/984Hz)
15
0905
4 5
