CyberData 011121 Installation Quick Reference page 2

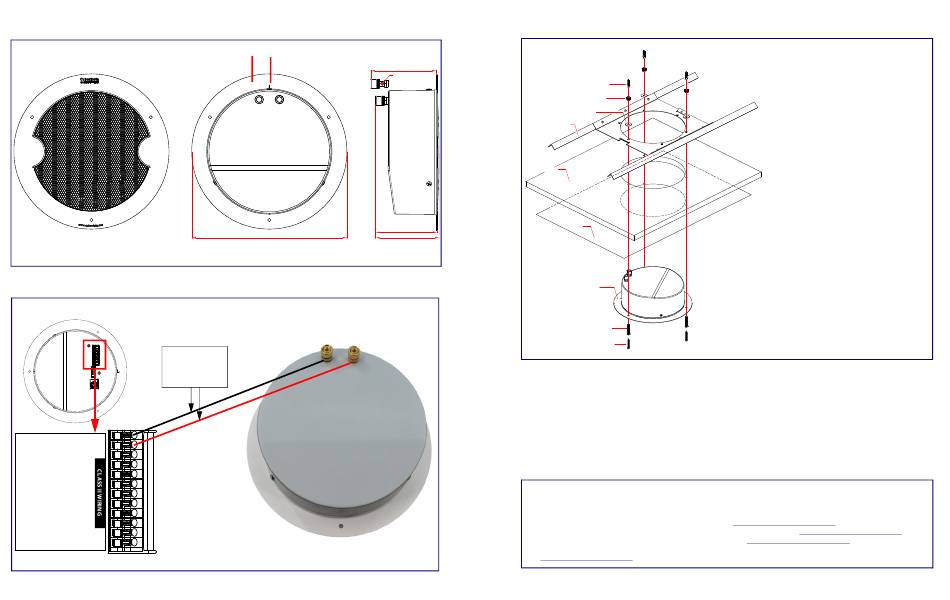

Dimensions
Connections
IP Speaker
High-purity copper
16-gauge wire and
a maximum length
of 20 feet
12 - AUX SPKR OUT (-)
11 - AUX SPKR OUT (+)
10 - RELAY - NO
9 - RELAY - COM
8 - NOT USED
7 - NOT USED
6 - LINE - OUT (-)
5 - LINE - OUT (+)
4 - BTN SENSE - (+)
3 - BTN SENSE - COM
2 - LED COM
1 - LED (+)
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
Binding Posts
Max. Height 3.819 [97.01]
9.055 [230.00]
Dimensions are in Inches [Millimeters]
Black (-) Red (+)
8 Ohm Auxiliary Analog Speaker
Part #011121
932012B
Mounting
Ø 5mm
*Optional Reinforcement Mount
P/N: 010991 (Sold Seperately)
*Ceiling Tile or Dry Wall
3.581 [90.96]
3.699 [93.96]
Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
https://www.cyberdata.net/
Quick Reference Quick Reference
Drywall Mounting Kit
Plastic Ribberd Anchor (3 Pieces)
Ceiling Mounting Kit
#8 Nylon Thumb Nut (3 Pieces)
Ceiling Mounting Kit
#8 Fender Washer (3x)
Template
Auxiliary Speaker
Ceiling Mounting Kit
#8-32x1 1/4" Pan Head Phillips
Machine Screw (3 Pieces)
Dry Wall Mounting Kit
#6 Self-Tapping Screw (3 Pieces)
Sales: 831-373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: https://support.cyberdata.net/
RMA Department Contact and Status:
Warranty Information:
932012B
To mount a speaker:
1. Use the TEMPLATE on the back of this
document to cut a hole in the wall or ceiling,
and prepare holes for the screws.
2. Connect the (+) and (-) speaker wire
terminal connectors to the binding posts of
the speaker assembly.
3. For drop ceiling mounting, position the
SPEAKER ASSEMBLY in the ceiling so
that its screw holes align with those you
prepared.
4. For drywall mounting, place the three
PLASTIC RIBBED ANCHORS in the holes
you prepared, and position the SPEAKER
ASSEMBLY over them, aligning the screw
holes in the assembly with the anchors.
5. For drop ceiling mounting*, use the three
8-32 x 1 1/4" MOUNTING SCREWS, #8
NYLON THUMB NUTS, and #8 FENDER
WASHERS to secure the speaker.
For drywall mounting, use the three #6
SHEET METAL SCREWS to secure the
speaker.
* For weak ceiling tile, CyberData offers a
reinforcing mount (CyberData part number
010991).
https://support.cyberdata.net/
https://support.cyberdata.net/
