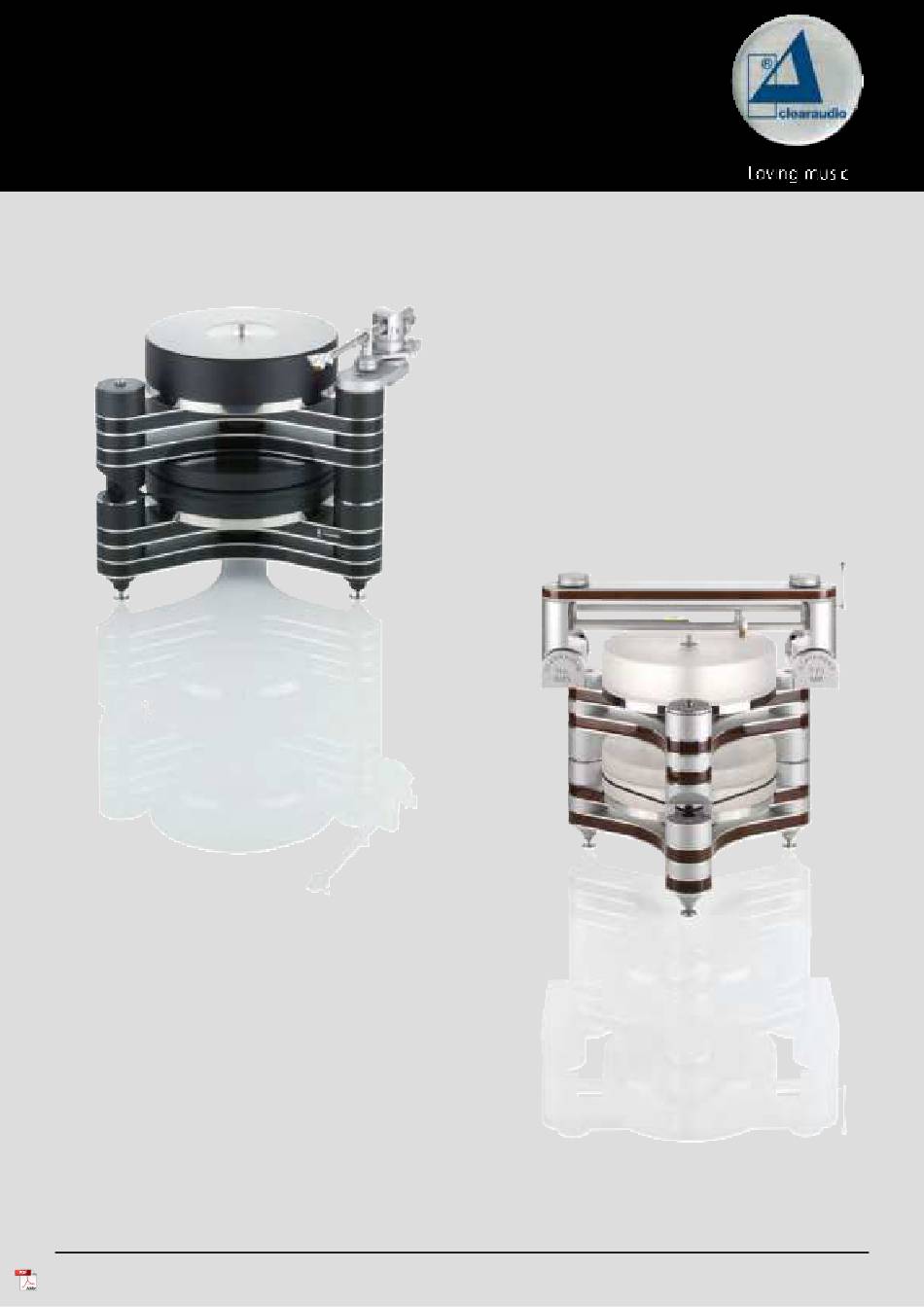

  • Page 1 Master I nnovation User manual Master I nnovation Black Picture w ith: Clearaudio tonearm „Universal“ and clearaudio cartridge „Goldfinger Statement“. Master I nnovation Wood Picutre w ith: Clearaudio tonearm „TT1 MI “ and Clearaudio cartridge „Goldfinge Statement“. Pic. similar © clearaudio...
  • Page 2 Please note that this instruction manual contains a brief overview to enable quick and easy setup. A fuller instruction manual will be sent out in due course. Clearaudio Master I nnovation We wish you a great deal of musical enjoyment with your new turntable.
  • Page 3 Therefore, as soon as the stylus has reached the run-out groove, engage the tonearm lift and switch the turntable off. Not suitable for children! Scope of delivery may contain small parts that can be swallowed. 2. Intended use Master I nnovation is a turntable for playing records. The intended use of the Master I nnovation in accordance with the information provided in the user manual only.
  • Page 4 6. Health information Permanently high volume can lead to various types of hearing damage. Use high volume responsibly! 7. Service Master I nnovation turntable should be repaired during the guarantee period by the manufacturer only, otherwise Clearaudio the warranty claim expires. All products should only be serviced by specialist retailers.
  • Page 5: Table Of Contents

    User manual Contents 1. Packing overview ..............6 2. List of components ..............7 - 8 3. Installation and setup ...............9 - 16 4. Fine adjustment of the motor ...........17 5. Troubleshooting ................18 - 19 6. Technical data ................20 Warranty information ..............21 - 22 Stroboscope test record user manual ...........23 - 24 Made in Germany Page 5...
  • Page 6: Packing Overview

    User manual 1. Packing overview Accessories, user manual, warranty card, Clearaudio quality card, Stroboscope Test Record Master I nnovation turntable chassis including mounted lower bearing part and integrated motor unit; optional tonearm Stainless steel subplatter with scale ring, Delrin or acrylic platter;...
  • Page 7: List Of Components

    Please keep this original packaging, in case you need to transport or ship the turntable at any point in the future. Clearaudio Master I nnovation components list: Pic. 2: List of Components...
  • Page 8 List of components 1 pair of white gloves 2x Bearing oil for occasional use Grounding wire (to connect to the Clearaudio Smart Stylus Gauge underside of the bearing part) Clearaudio Stroboscope Test Record Level gauge for turntable align- (Art. No. AC038) to adjust the exact speed ment 2 pcs.
  • Page 9: Installation And Setup

    User manual 3. Installation and setup Master I nnovation The setup of the turntable is easy as the turntable chassis is pre-assembled and has been tested at the factory. Please use the white gloves enclosed in order to avoid scratches or unwanted fingerprints (platter).
  • Page 10 Carton 1 of 3: First, take out the three black flat pads from the accessory bag. Place these flat pads on your hi-fi rack or another suitable base, where the final position of your Master I nnovation turntable will be.
  • Page 11 User manual Take the drive bearing out of the box. Please remove the bearing protection film carefully and apply 2-3 drops of the bearing oil (provided, and also available at www.analogshop.de Carefully place the bearing onto the bearing axis. Pic. 6: Pic.
  • Page 12 Placing the drive unit platter onto the bearing Place one of the two drive belts provided (the second is a spare) around the platter and around the motor pulley. Pic. 10: Placement of the drive belt © clearaudio Page electronic GmbH, 2022-11...
  • Page 13 User manual Carefully take the top unit from carton 2 of 3 and place it onto the drive unit. Make sure that the protective film of the top unit is still fixed between the platter and the chassis to avoid damage. Please note that the centring pins will easily slide into the threaded hole without jamming.
  • Page 14 Please avoid any sideways force to avoid any damage to the ceramic bearing. Pic. 11a: Setting up the stainless steel platter Pic. 11b: Setting up the platter Pic. 12: Setup finished You can find various turntable adjustment accessories at www.clearaudio.de www.analogshop.de. © clearaudio Page electronic GmbH, 2022-11...
  • Page 15 12.) To mount and adjust a cartridge, please follow the relevant manufacturer’s user manual for that cartridge. Clearaudio Master I nnovation I f you have purchased your turntable as a package with tonearm and cartridge, you will find a Smart Level Gauge...
  • Page 16 13.) The following final adjustment is very important. Please ensure that your turntable rack is in a level position. Master I nnovation Please use the level gauge provided to ensure that your turntable is in a level position. You can adjust each of the turntable’s feet to level the turntable. You will only get the best...
  • Page 17: Fine Adjustment Of The Motor

    User manual 4. Fine adjustment of the motor Master I nnovation’s motor adjustment is already pre-set at the factory. However, some small speed deviations can occur during transportation or due to dirt or dust on the sensor or the sensor ring.
  • Page 18: Troubleshooting

    User manual 5. Troubleshooting Master I nnovation turntable, first check the possible causes to rule I f you have a problem with your out incorrect operation. I f the error persists, please contact your dealer! Never try to open the device and/or repair it yourself, this will void the warranty!
  • Page 19 User manual I s the record or the stylus dirty Clean the record / or the cartridge. Clearaudio offers many helpful accessories for care and or damaged? cleaning. I n the event of damage, we recommend an assessment by a specialist and, if necessary, Needle bounces an exchange.
  • Page 20: Technical Data

    5 years* Clearaudio * Provided that the warranty card is correctly completed and returned to , or your product is registered online at https:/ / clearaudio.de/ en/ service/ registration.php, within 14 days of purchase. © clearaudio Page electronic GmbH, 2022-11...
  • Page 21: Warranty Information

    Clearaudio , or register your product online at https:/ / clearaudio. de/ en/ service/ registration.php, within 14 days of purchase. Otherwise only the legal warranty of 2 years can be considered.
  • Page 22 Clearaudio IMPORTANTE Cuando solicite el servicio otorgado por la garantia el usuario tiene la responsabilidad de demonstrar cuándo efectuó la compra. En este caso, su recibo de compra será la prueba apropiada. © clearaudio Page electronic GmbH, 2022-11...
  • Page 23: Stroboscope Test Record User Manual

    User manual Stroboscope Testrecord Clearaudio Stroboscope test record satisfies the highest demands for an exact speed adjustment for turntables. Dramatic sound improvements can be reached only with exact calibrated speeds. - Optimal adjustment for turntables - To adjust the exact speed, please choose the side for 50 / 60Hz, or the other side for the use with the speed light first.
  • Page 24 LED / 300Hz precision light source (calibrated) Battery: V 23GA – 12V – Alkaline (Technical changes are subject without notification) Date: 2022-11 Clearaudio electronic GmbH Spardorfer Str. 150 91054 Erlangen Germany Tel: + 49 9131 40300 100 Fax: + 49 9131 40300 119 www.clearaudio.de...
  • Page 25 User manual Made in Germany Page 25...
  • Page 26 User manual © clearaudio Page electronic GmbH, 2022-11...
  • Page 27 User manual Made in Germany Page 27...
  • Page 28 Technical specifications are subject to change or improvement without prior notice. Product availability is as long as astock lasts. Copies and reprints of this document, including extracts, require written consent from Clearaudio Electronic GmbH, Germany. 2022 © clearaudio electronic GmbH, 2022-11...
