User manual
Pic. similar
© clearaudio electronic GmbH, 2022-11

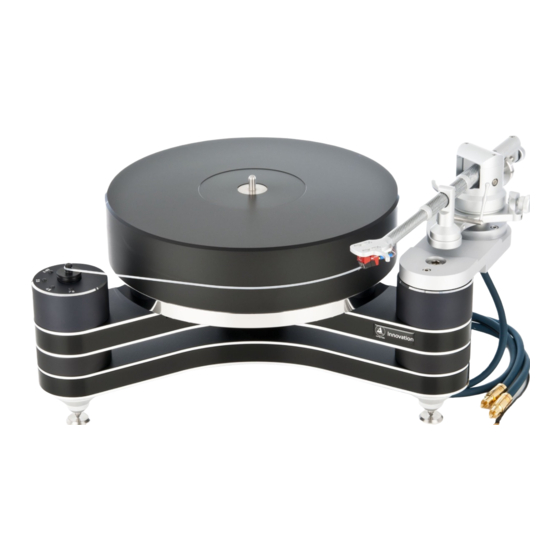

Master Innovation Wood
Picutre with:
Clearaudio tonearm „TT1 MI"
and Clearaudio cartridge
„Goldfinger Statement".
Master Innovation Black
Picture with:
Clearaudio tonearm „Universal"
and clearaudio cartridge
„Goldfinger Statement".
Made in Germany
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Clearaudio Innovation
Summary of Contents for Clearaudio Innovation
- Page 1 Master Innovation User manual Master Innovation Black Picture with: Clearaudio tonearm „Universal“ and clearaudio cartridge „Goldfinger Statement“. Master Innovation Wood Picutre with: Clearaudio tonearm „TT1 MI“ and Clearaudio cartridge „Goldfinger Statement“. Pic. similar © clearaudio electronic GmbH, 2022-11 Made in Germany...
- Page 2 For more information regarding the you will get a separate user manual. Master Innovation We wish you a lot of musical enjoyments with your new Clearaudio turntable. Clearaudio electronic GmbH This section must be read before any connection is made to the mains supply.
- Page 3 5. Maintenance Never use agressive cleaning detergent. Do not use dry cloths for cleaning as this generates static electricity. Suitable cleaning and care products from Clearaudio are available from www.analogshop.de or from specialist retailers. The bearing of the turntable platter can be lubricated every 2 years with the oil provided.
- Page 4 Master Innovation turntable should be repaired during the guarantee period by the manufacturer only, otherwise the warranty claim expires. All Clearaudio products should only be serviced by specialist retailers. Master Innovation If, despite the high production standard, a service is necessary, the turntable must be send to Clearaudio through your dealer.
-
Page 5: Table Of Contents
User manual Contents 1. Packing overview .............. 4 2. List of components ............5 3. Reconstruction Innovation to Master Innovation ..... 6 - 16 4. Fine adjustment of the motor..........16 5. Troubleshooting ..............17 6. Technical data ..............18 Warranty information ............ -
Page 6: Packing Overview
User manual 1. Packing overview Box 1 of 2: Drive unit, already pre-mounted at factory, accessories Box 2 of 2: Stainless steel platter, drive platter (38 mm) Pic. 1: Packing overview © clearaudio electronic GmbH, 2022-11 Page 6... -
Page 7: List Of Components
User manual 2. List of components Master Innovation Clearaudio’s special secure packaging for your turntable ensures safe transportation. Please keep this original packaging, in case you need to transport or ship the turntable at any point in the future. Clearaudio... -
Page 8: Reconstruction Innovation To Master Innovation
(in inch): 18.9 x 19.3. 19.29 inches / 490 mm 18.90 inch- es 480 mm Unify Pic. 3: Required setup space (with Clearaudio tonearm © clearaudio electronic GmbH, 2022-11 Page 8... - Page 9 User manual Innovation Master Innovation Before you can start to reconstruct the turntable to the please pay Innovation all bases of the turntable have the height of 40 mm! attention that If one of your bases has not the height of 40 mm, please contact the dealer, where you have...
- Page 10 Next please remove the bearing of your . For that unscrew carefully the screw on the lower side of the turntable and pull the bearing out of the chassis. Screw on the lower side Pic. 7: Removing the bearing © clearaudio electronic GmbH, 2022-11 Page 10...
- Page 11 User manual Master Innovation Take out the delivered drive bearing for the Please remove carefully any protective security tape from the bearing. Now you can put the new bearing into the chassis (see pic. 6) and arm the bearing with the delivered screw on the lower side of the turntable.
- Page 12 (Pic. 11 and 12). Please remove the lamination extreme carefully and avoid any soiling and scratches. Pic. 11: Setup of the sub platter Pic. 12: Setupf of the sub platter © clearaudio electronic GmbH, 2022-11 Page 12...
- Page 13 User manual Take the drive platter with both hands carefully out of the box and remove the protection sheet. Please pay attention that the magnets on the upper surface of the drive platter must be faced upwards. Magnets (face upwards) Pic.
- Page 14 Please pay attention that all center pins must be set very carefully into all threaded holes. Center pin to set into threaded hole Center pin to set into threaded hole Pic. 13: Setup of the turntable unit Pic. 14: Finished setup of the turntable unit © clearaudio electronic GmbH, 2022-11 Page 14...
- Page 15 User manual 11.) Take the stainless steel sub-platter out of the box 3 and remove only the protection sheet, but keep the protection film of the upper side of the sub-platter. Put the sub-platter very carefully onto the upper part of the bearing (Pic. 15a). Now take the main platter out of the box and set it up onto the upper part of the bearing.
- Page 16 12.) To install the tonearm, please follow the user manual of the respective manufacturer. Innovation If you purchased your Clearaudio turntable as a package with tonearm and cartridge, Smart Level Gauge you will find a in your accessory, which will help you to adjust the tracking force...
- Page 17 14.) The following final adjustment is very important: Please ensure that your turntable rack is in a levelled position. Master Innovation Please check with the bubble level gauge, if your turntable is in a levelled position. You can adjust each of the turntables feet to get the turntable levelled.
-
Page 18: Fine Adjustment Of The Motor
Clean the sensor and the scale ring with a little isopropyl alcohol and a cotton bud. Be careful and avoid any scratches on the sensor or the scale ring! If the motor has further more speed variations please contact your nearest authorized Clearaudio dealer or directly the Clearaudio factory. -
Page 19: Troubleshooting
Check the stylus and have the cartridge checked by a specialist if necessary. Is the record or the stylus dirty or Clean the record / or the cartridge. Clearaudio damaged? offers many helpful accessories for care and cleaning. In the event of damage, we recommend an assessment by a specialist and, if necessary, an exchange. - Page 20 User manual Clean the record / or the cartridge. Clearaudio Is the record or the stylus dirty or damaged? offers many helpful accessories for care and cleaning. In the event of damage, we recommend an assessment by a specialist and, if necessary, Needle bounces an exchange.
-
Page 21: Technical Data
(with tonearm base, without tonearm) Manufacturer’s warranty: 5 years* * Provided that the warranty card is correctly completed and returned to Clearaudio, or your product is registered online at https://clearaudio.de/en/service/registration.php, within 14 days of purchase. Made in Germany Page 21... - Page 22 The full, extended warranty period for the turntable is 5 years. To receive this full Clearaudio warranty, you must either complete and return the relevant section of the warranty registration card to Clearaudio, or register your product online at https://clearaudio.de/en/service/ registration.php, within 14 days of purchase.
- Page 23 ESPAÑOL GARANTIA Para obtener información acerca de la garantia póngase en contacto con su distribuidor Clearaudio. GUARDE SU RECIBO DE COMPRA Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá guardarlo en un lugar seguro y utilizarlo como referencia cuando tenga que hacer uso del seguro o se ponga en contacto con Clearaudio.
- Page 24 Handmade in Germany Clearaudio Electronic accepts no liability for any misprints. Technical specifications are subject to change or improvement without prior notice. Product availability is as long as astock lasts. Copies and reprints of this document, including extracts, require written consent from Clearaudio Electronic GmbH, Germany.
