Hi-Fi Components

Spardorfer Str. 150  D-91054 Erlangen  Tel. +49(0) 9131/40300100  FAX +49(0) 09131/51683

www.clearaudio.de 

clearaudio electronic

www.analogshop.de

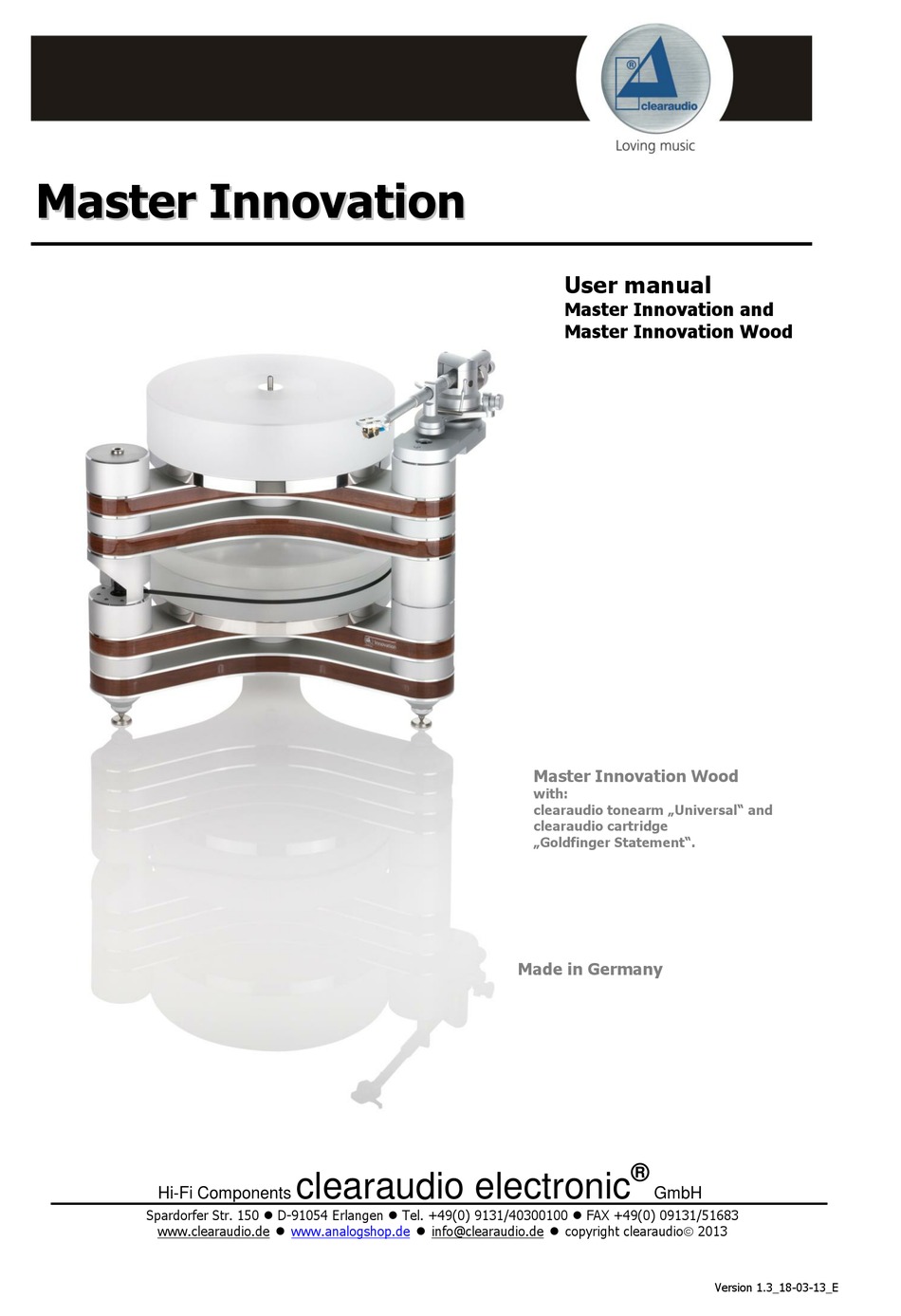

Master Innovation Wood

with:

clearaudio tonearm „Universal" and

clearaudio cartridge

„Goldfinger Statement".

Made in Germany

 info@clearaudio.de  copyright clearaudio 2013

User manual

Master Innovation and

Master Innovation Wood

GmbH

Version 1.3_18-03-13_E

Table of Contents

Need help?

Do you have a question about the Master Innovation and is the answer not in the manual?

Questions and answers

Summary of Contents for Clearaudio Master Innovation

Page 1: User Manual
„Universal“ and clearaudio cartridge „Goldfinger Statement“. Made in Germany ® clearaudio electronic Hi-Fi Components GmbH Spardorfer Str. 150  D-91054 Erlangen  Tel. +49(0) 9131/40300100  FAX +49(0) 09131/51683 www.clearaudio.de  www.analogshop.de  info@clearaudio.de  copyright clearaudio 2013 Version 1.3_18-03-13_E...
Page 2 (EMC) and low-voltage appliances. EQUIPMENT MAINS WORKING SETTING Your clearaudio product has been prepared to comply with the household power and safety requirements that exist in your area. This product can be connected to 230 V or 110 V AC (50 Hz and 60 Hz).
Page 3: Table Of Contents
Master Innovation Wood User manual Contents 1. Packing overview 2. Part list 3. Installation and set up 4. Fine adjustment of the motor 5. Service and special instructions 6. Technical data Warranty – information Page 2  clearaudio electronic GmbH 2013...
Page 4: Packing Overview
Delrin or Acrylic; Power supply unit Optional: cartridge, Drive bearing Box 2 of 3: Turntable unit pre - mounted Box 3 of 3 (not shown): Content: Stainless stell sub-platter and drive platter Page 3  clearaudio electronic GmbH 2013...
Page 5 Master Innovation / Master Innovation Wood User manual 2. Packing list Clearaudio has developed a special and secure packing for your Master Innovation turntable that ensures a safe transportation. Please keep this original packing, if you need to ship the turntable.
Page 6: Part List
Not shown: user manual, warranty (Art. No. AC038) to adjust the exact card, clearaudio Quality certificate speed card, sales return card 18. Not shown: Stainless steel sub – platter and drive platter (in box 3 of 3) Page 5  clearaudio electronic GmbH 2013...
Page 7: Installation And Set Up
(in inch): 18.9 x 19.3. 49 cm / 19.3 48 cm / 18.9 Pic. 1: Required set - up space (with clearaudio tonearm Unify) Page 6  clearaudio electronic GmbH 2013...
Page 8 Master Innovation Pic. 2: drive unit Remove the protective security tape from the bearing housing. Place two drops of the synthetic bearing oil on the ceramic bearing shaft (also available at www.analogshop.de). Page 7  clearaudio electronic GmbH 2013...
Page 9 (pic. 5 and 6). Please remove the lamination extreme carefully and avoid any soiling and scratches. Pic. 5: Set – up of the sub - platter Pic. 6: Set – up of the sub - platter Page 8  clearaudio electronic GmbH 2013...
Page 10 Throw one of the delivered drive belt at the drive – platter and the pulley. Please pay attention that the drive belt is not twisted. Pic.7: Set – up of the drive belt Page 9  clearaudio electronic GmbH 2013...
Page 11 Center pin to set into threaded hole Center pin to set into threaded hole Pic. 8: Set – up of the turntable unit Pic 9.: Finished set – up of the turntable unit Page 10  clearaudio electronic GmbH 2013...
Page 12 Avoid major side forces to avoid any damages to the ceramic bearing! Pic. 10a: Set – up of the stainlees steel sub - platter Pic. 10b: Set – up of the main platter Pic. 11: Finished set - up Page 11  clearaudio electronic GmbH 2013...
Page 13 To install the tonearm, please follow the user manual of the respective manufacturer. Innovation If you purchased your clearaudio turntable as a package with tonearm and cartridge, you will find a Smart Level Gauge in your accessory, which will help you to adjust...
Page 14 After the initial set-up we recommend to let the turntable spin for at least 15 to 30 minutes. This ensures a smoother break in. Pic. 14: Connection power supply and motor Page 13  clearaudio electronic GmbH 2013...
Page 15: Fine Adjustment Of The Motor
Please check the speed before using the turntable for the first time. For the correct adjustment of the speed please put the recommended clearaudio Stroboscope Testrecord on the platter. Follow hereby the instruction of the Stroboscope Testrecord user manual.
Page 16: Service And Special Instructions
Master Innovation / Master Innovation Wood User manual 5. Service and special instruction In case of any necessary, service for all clearaudio products should be done by authorized personal only. Innovation In case of any repair, the clearaudio -turntable needs to be send to your nearest authorized clearaudio distributor, dealer or directly to the clearaudio factory.
Page 17: Technical Data
Warranty: 5 years* (see page 17) * Only if the warranty card is filled out correctly and sent back to clearaudio within 14 days. clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice. Availability as long as stock lasts.
Page 18 RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.
