Master Innovation
User manual
© clearaudio electronic GmbH, 2019-03

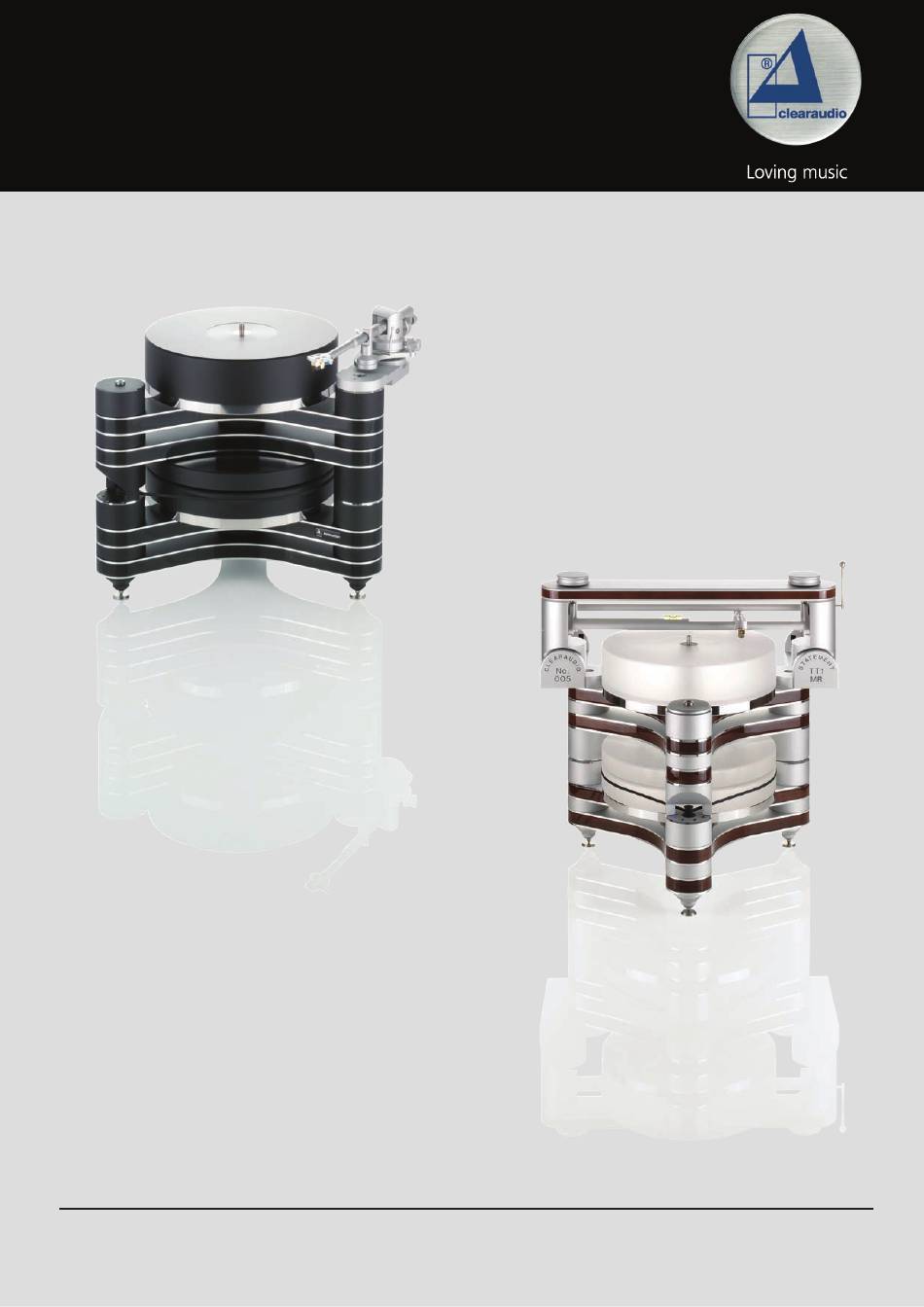

Master Innovation Wood
Picutre with:
Clearaudio tonearm „TT1 MI"
and Clearaudio cartridge
„Goldfinge Statement".
Master Innovation Black
Picture with:
Clearaudio tonearm „Universal"
and clearaudio cartridge
„Goldfinger Statement".
Made in Germany
Advertisement
Related Manuals for Clearaudio Master Innovation Series
Summary of Contents for Clearaudio Master Innovation Series
- Page 1 Master Innovation User manual Master Innovation Black Picture with: Clearaudio tonearm „Universal“ and clearaudio cartridge „Goldfinger Statement“. Master Innovation Wood Picutre with: Clearaudio tonearm „TT1 MI“ and Clearaudio cartridge „Goldfinge Statement“. © clearaudio electronic GmbH, 2019-03 Made in Germany...
- Page 2 (EMC) and low-voltage appliances. EQUIPMENT MAINS POWER SETTING Your Clearaudio product has been prepared to comply with the household power and safety requirements that exist in your area. This product can be connected from 110V to 230V AC (50Hz and 60Hz).
-
Page 3: Table Of Contents
User manual Contents 1. Packing overview ..........4 2. List of components ..........5 3. Installation and setup ......... 7 4. Fine adjustment of the motor ......15 5. Special instructions ..........16 6. Technical data ............. 17 Warranty information ..........18 - 19 Stroboscope test record user manual ..... -
Page 4: Packing Overview
Delrin or acrylic platter; optional power supply; cartridge; drive bearing Carton 2 of 3: pre-mounted drive unit Carton 3 of 3 (not pictured): stainless steel sub-platter and platter Pic. 1: Packing overview © clearaudio electronic GmbH, 2019-03... -
Page 5: List Of Components
User manual 2. List of components Master Innovation Clearaudio’s special secure packaging for your turntable ensures safe transportation. Please keep this original packaging, in case you need to transport or ship the turntable at any point in the future. Master Innovation... - Page 6 (Art. No. AC038) to adjust the exact speed 2 pcs. Flat belts Not shown: User manual, warranty card, Clearaudio quality certificate card, sales return paper 4 hex keys; sizes: #2.5 / 3 / 7 / 8 Not shown: stainless steel sub-platter and...
-
Page 7: Installation And Setup
User manual 3. Installation and setup Master Innovation The setup of the turntable is easy as the turntable chassis is pre-assembled and has been tested at the factory. Please use the white gloves enclosed in order to avoid scratches or unwanted fingerprints (platter). Master Innovation turntable requires a setup space of at least 18.90 x 19.29 inches. - Page 8 To avoid humming noises it may be necessary to ground the bearing. To do so, plug the ground cable provided into the hole in the bearing fixing bolt on the underside of the turntable. Pic. 5: Grounding the bearing Remove the protective security tape from the bearing housing. © clearaudio electronic GmbH, 2019-03...
- Page 9 User manual Take the drive bearing out of the box. Please remove the bearing protection film carefully and apply 2-3 drops of the bearing oil (provided, and also available at www.analogshop.de). Carefully place the bearing onto the bearing axis. Pic. 6: Setup of the bearing Pic.
- Page 10 Pic. 9: Placing the drive unit platter onto the bearing Place one of the two drive belts provided (the second is a spare) around the platter and around the motor pulley. Pic. 10: Placement of the drive belt © clearaudio electronic GmbH, 2019-03...
- Page 11 User manual Carefully take the top unit from carton 2 of 3 and place it onto the drive unit. Make sure that the protective film of the top unit is still fixed between the platter and the chassis to avoid damage. Please note that the centring pins will easily slide into the threaded hole without jamming.
- Page 12 Please avoid any sideways force to avoid any damage to the ceramic bearing. Pic. 11a: Setting up the stainless steel platter Pic. 11b: Setting up the platter Pic. 12: Setup finished You can find various turntable adjustment accessories at www.clearaudio.de www.analogshop.de. © clearaudio electronic GmbH, 2019-03...
- Page 13 12.) To mount and adjust a cartridge, please follow the relevant manufacturer’s user manual for that cartridge. Master Innovation If you have purchased your Clearaudio turntable as a package with tonearm Smart Level Gauge and cartridge, you will find a...
- Page 14 After the initial setup, we recommend a running in period to ensure the perfect performance. To do this let the turntable spin at 33 1/3rpm for 15 to 30 minutes. Pic. 15: Connection of power supply and motor © clearaudio electronic GmbH, 2019-03...
-
Page 15: Fine Adjustment Of The Motor
Stroboscope Test Record platter and refer to the instructions provided in the user manual. To check the speed with highest accuracy, you may wish to use the Clearaudio Speed Light (Art. No.: AC039, available at www.analogshop.de). On the right front side of your turntable there are three fine speed adjusters (see Picture 16 below). -
Page 16: Special Instructions
When repackaging the turntable, please follow in reverse the steps indicated in this manual for installation and setup (from section 1). 5.3 Service Any required servicing of Clearaudio products should be carried out by authorized personnel only. Master Innovation In the case of repairs, the... -
Page 17: Technical Data
18.11 x 19.09 x 15.59 inches Warranty: 5 years* * Provided that the warranty card is correctly completed and returned to Clearaudio, or your product is registered online at https://clearaudio.de/en/service/registration.php, within 14 days of purchase. Clearaudio electronic is not responsible for typographical errors in descriptions. -
Page 18: Warranty Information
Le reçu ou la facture constituent des preuves suffisantes. DEUTSCH GARANTIE Bei Garantiefragen wenden Sie sich bitte zunächst an Ihren Clearaudio Händler. Heben Sie Ihren Kaufbeleg gut auf. WICHTIG! Die Angaben auf Ihrer Quittung erlauben uns die Identifizierung Ihres Gerätes und belegen mit dem Kaufdatum die Dauer Ihrer Garantie-Ansprüche. - Page 19 ESPAÑOL GARANTIA Para obtener información acerca de la garantia póngase en contacto con su distribuidor Clearaudio. GUARDE SU RECIBO DE COMPRA Su recibo de compra es su prueba permanente de haber adquirido un aparato de valor, Este recibo deberá guardarlo en un lugar seguro y utilizarlo como referencia cuando tenga que hacer uso del seguro o se ponga en contacto con Clearaudio.
-
Page 20: Stroboscope Test Record User Manual
Please place the stroboscope disc on your turntable platter and start the engine of your turntable. The big advantage of the Clearaudio strobe disc is, that you can place your cartridge onto the strobe record, while measuring the speed, as there are grooves provided on the disc. This means, for the first time a real time speed analysis is possible under realistic circumstances. - Page 21 With the outside scale you can detect the speed of 33.3rpm, with the middle scale 45rpm and with the inside scale you can detect the speed of 78rpm. Again, the big advantage of the Clearaudio strobe disc is, that you can place your cartridge onto the strobe record, while measuring the speed, as there are grooves provided on the disc.
- Page 22 User manual © clearaudio electronic GmbH, 2019-03...
- Page 23 User manual Made in Germany...
