- Page 1 Quick Start Guide QG000156 TMD2755 TMD2755 EVM ALS and Proximity Sensor Module v1-00 • 2020-May-12...
- Page 2 TMD2755 ● TMD2755 EVM Document Feedback Content Guide Content Guide Out of the Box ........ 3 Software Installation ...... 4 Connect Hardware ......6 Start the Application ...... 7 Uninstall Application ..... 8 Quick Start Guide • PUBLIC QG000156 • v1-00 • 2020-May-12...

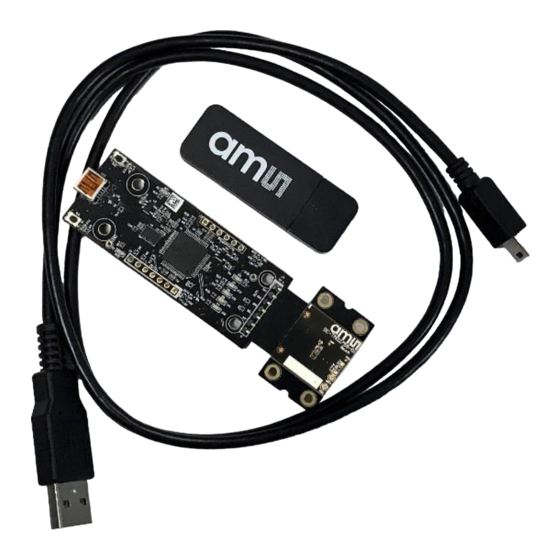

- Page 3 TMD2755 ● TMD2755 EVM Document Feedback Out of the Box Out of the Box For a detailed description of the TMD2755 ALS and Proximity Sensor Module Evaluation Kit, please refer to User Guide: ● UG000481 Each TMD2755 Evaluation Kit comes with the following components:...
- Page 4 Flash Drive will commonly be assigned the next available drive letter for example C: hard drive, D: CD-ROM, E: flash drive The Setup Wizard will open and guide you through the installation of the TMD2755 host software, (Figure 2 through Figure 8) At the end of the installation, click Finish to exit the setup.
- Page 5 TMD2755 ● TMD2755 EVM Document Feedback Software Installation Figure 6: Figure 7: Installation in Progress Information Screen Figure 8: Installation Completed Successfully Quick Start Guide • PUBLIC QG000156 • v1-00 • 2020-May-12 │ 5...
- Page 6 Document Feedback Connect Hardware Connect Hardware Plug the TMD2755 Daughterboard into the Controller board (Figure 1). Always use ESD procedures when handling the EVM. Using the enclosed USB cable, plug the mini-B connector into the EVM module. Using the other end of the cable, plug the USB A-connector into a USB port on the computer.
- Page 7 Start the Application Start the Application To start the application select ams > TMD2755 EVM > TMD2755 EVM on the All Programs menu. The default installation directory depending on the device and the operating system you are using is: C:\Program Files\ams\TMD2755_EVM (Windows 32 bit operating systems) C:\Program Files (x86)\ams\TMD2755_EVM (Windows 64 bit operating systems) A different install path may be selected by the user during the install (Figure 4).
- Page 8 AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein.
