- Page 1 Quick Start Guide QG001010 TSL2585 TSL2585 EVM Miniature Ambient Light Sensor with UV and Light Flicker Detection v2-00 • 2021-Sep-13...
-
Page 2: Table Of Contents
TSL2585 ● TSL2585 EVM Document Feedback Content Guide Content Guide Out of the Box ........ 3 Software Installation ..... 4 Connect Hardware ......7 Start the Application ..... 8 Uninstall Application ..... 9 Quick Start Guide • PUBLIC QG001010 • v2-00 • 2021-Sep-13... -
Page 3: Out Of The Box
TSL2585 ● TSL2585 EVM Document Feedback Out of the Box Out of the Box For a detailed description of the TSL2585 EVM, please refer to User Guide: ● UG001017 Each TSL2585 Evaluation Kit comes with the following components: Figure 1 :... -

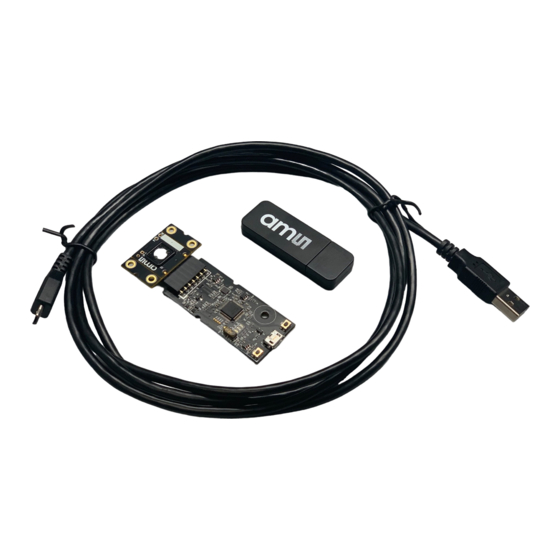

Page 4: Software Installation
Flash Drive will commonly be assigned the next available drive letter for example C: hard drive, D: CD-ROM, E: flash drive The Setup Wizard will open and guide you through the installation of the TSL2585 host software, (Figure 2 through Figure 8) The EVM Controller board requires the installation of FTDI CDM drivers. - Page 5 TSL2585 ● TSL2585 EVM Document Feedback Software Installation Figure 4: Figure 5: Select Installation Folder Select Start Menu Folder Figure 6: Figure 7: Installation in Progress Information Screen Quick Start Guide • PUBLIC QG001010 • v2-00 • 2021-Sep-13 │ 5...
- Page 6 TSL2585 ● TSL2585 EVM Document Feedback Software Installation Figure 8: Installation Completed Successfully Quick Start Guide • PUBLIC QG001010 • v2-00 • 2021-Sep-13 │ 6...
-
Page 7: Connect Hardware
Document Feedback Connect Hardware Connect Hardware Plug the TSL2585 Daughterboard into the Controller board (Figure 1). Always use ESD procedures when handling the EVM. Using the enclosed USB cable, plug the micro-B connector into the EVM module. Using the other end of the cable, plug the USB A-connector into a USB port on the computer. -
Page 8: Start The Application
Document Feedback Start the Application Start the Application To start the application select ams-OSRAM > TSL2585 EVM > TSL2585 EVM on the All Programs menu. The default installation directory depending on the device and the operating system you are using is:... -
Page 9: Uninstall Application
