INSTALLATION AND OPERATING INSTRUCTIONS
ADDITIONAL SENSOR CO
with sensor for
Carbon monoxide (CO)
1. GENERAL OVERVIEW

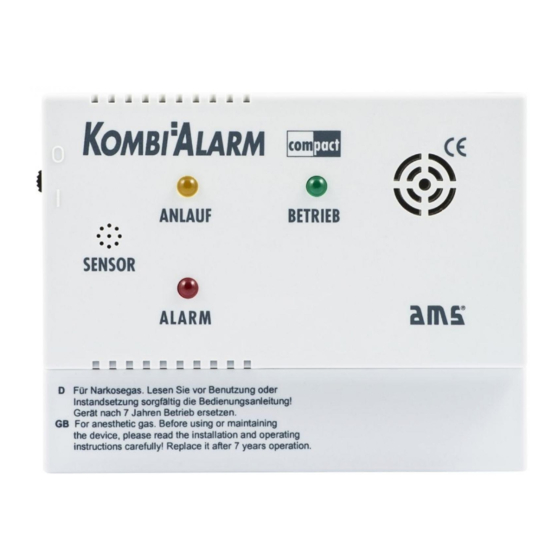

As a standard the ams KOMBIALARM offers the possibility to connect up to two additional
sensors.
The additional sensors are available in different designs:
€ Additional sensor for liquid gas (propane/butane), natural gas (methane) and KO-gas
(anaesthetic gas)
€ Additional sensor for carbon monoxide (CO)
The additional sensors can be connected to either one of the two additional inputs
(SENSOR 2 / SENSOR 3) irrespective of the type of sensor used.
2. CARBON MONOXIDE
Carbon monoxide (CO) is an invisible, odourless and extremely toxic gas. It can be found
where gas, oil, wood, coal etc are burned. Toxic amounts of carbon monoxide can develop,
if ovens or cookers are not connected properly or not serviced regularly, if ventilation is
inadequate or if the flue is blocked. Inhaling even small amounts of CO can lead to
permanent damage of cardiovascular and neural functions or can even be fatal.
Symptoms: Tiredness, headaches, dizziness, nausea, chest or stomach pains.
Indications of faulty heating appliances: Stains, soot deposits, yellow/orange coloured
fumes, smell of fumes, the fire goes out easily.
3. PLACEMENT
Carbon monoxide is a little lighter than air and as a result always rises upwards. Therefore,
the additional carbon monoxide sensor should be fitted just under the ceiling and as near as
possible to the potential safety hazard.
INSTALLATION
4.
The sensor can be fitted either by gluing or by using the enclosed screws.
Please strictly observe the installation height!
5. ELECTRICAL CONNECTION
The add-on sensor comes complete with a 3-wire cable of about 3 m in length.
The sensor is connected to the main unit at either of the two inputs labelled ‚SENSOR 2' or
‚SENSOR 3':
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AMS Kombi Alarm
Summary of Contents for AMS Kombi Alarm
- Page 1 Carbon monoxide (CO) 1. GENERAL OVERVIEW As a standard the ams KOMBIALARM offers the possibility to connect up to two additional sensors. The additional sensors are available in different designs: € Additional sensor for liquid gas (propane/butane), natural gas (methane) and KO-gas (anaesthetic gas) €...
- Page 2 Attention must be paid to connecting the wires to the correct terminals. If necessary the cable length can be extended by 5 m at the most. Recommended extension cable: Liyy 3x0.25 mm Do not use a cable with a smaller cross section! 6.
- Page 3 consumption of a glass of beer, wine, liquor etc. The test can also be carried out by using a gas lighter or tobacco smoke. Carry out the function test by following these step-by-step instructions: € Make sure that the entire system is ready-to-run (green LED on the main unit lights up). €...
- Page 4 Dimensions in mm Subject to changes in construction and design! 11. IMPORTANT ADVICE The function test must be repeated from time to time, particularly in case of frequent and also long periods of non-operation. That way the function of the siren and the sensor is being tested.
