Summary of Contents for AMS TCS3720
- Page 1 Quick Start Guide QG001011 TCS3720 TCS3720 EVM ALS/Color and Proximity Sensor for Behind OLED Applications v1-00 • 2021-Aug-16...
-
Page 2: Table Of Contents
TCS3720 ● TCS3720 EVM Document Feedback Content Guide Content Guide Out of the Box ........ 3 Software Installation ..... 4 Connect Hardware ......7 Start the Application ..... 8 Uninstall Application ..... 9 Quick Start Guide • PUBLIC QG001011 • v1-00 • 2021-Aug-16... -
Page 3: Out Of The Box

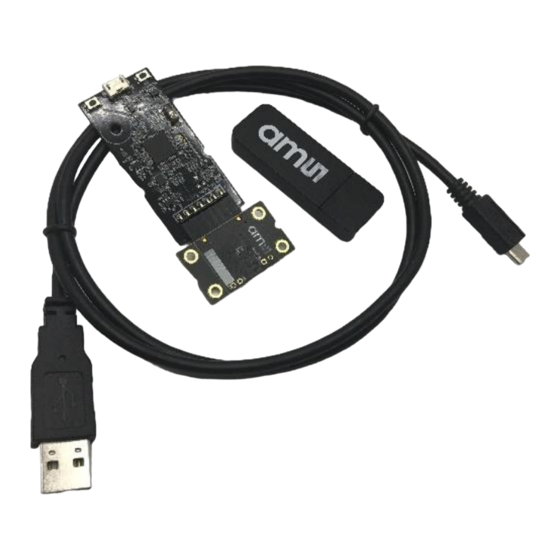

TCS3720 ● TCS3720 EVM Document Feedback Out of the Box Out of the Box For a detailed description of the TCS3720 EVM, please refer to User Guide: ● UG001018 Each TCS3720 Evaluation Kit comes with the following components: Figure 1:... -
Page 4: Software Installation
Flash Drive will commonly be assigned the next available drive letter for example C: hard drive, D: CD-ROM, E: flash drive The Setup Wizard will open and guide you through the installation of the TCS3720 host software, (Figure 2 through Figure 8) The EVM Controller board requires the installation of FTDI CDM drivers. - Page 5 TCS3720 ● TCS3720 EVM Document Feedback Software Installation Figure 4: Figure 5: Select Installation Location Select Start Menu Folder Figure 6: Figure 7: Installation in Progress Information Screen Quick Start Guide • PUBLIC QG001011 • v1-00 • 2021-Aug-16 │ 5...
- Page 6 TCS3720 ● TCS3720 EVM Document Feedback Software Installation Figure 8: Installation Completed Successfully Quick Start Guide • PUBLIC QG001011 • v1-00 • 2021-Aug-16 │ 6...
-
Page 7: Connect Hardware
Document Feedback Connect Hardware Connect Hardware Plug the TCS3720 Daughterboard into the Controller board (Figure 1). Always use ESD procedures when handling the EVM. Using the enclosed USB cable, plug the micro-B connector into the EVM module. Using the other end of the cable, plug the USB A-connector into a USB port on the computer. -
Page 8: Start The Application
Document Feedback Start the Application Start the Application To start the application select ams-OSRAM > TCS3720 EVM > TCS3720 EVM on the All Programs menu. The default installation directory depending on the device and the operating system you are using is:... -
Page 9: Uninstall Application
AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein.
