- Page 1 Quick Start Guide QG000141 TCS3408 ALS/Color Sensor with Selective Flicker Detection TCS3408 EVM v1-00 • 2019-Aug-22...
- Page 2 TCS3408 ● ALS/Color Sensor with Selective Document Feedback Flicker Detection Content Guide Content Guide Out of the Box ........ 3 Software Installation ...... 4 Connect Hardware ......6 Start the Application ...... 7 Uninstall Application ..... 8 Quick Start Guide • PUBLIC QG000141 •...

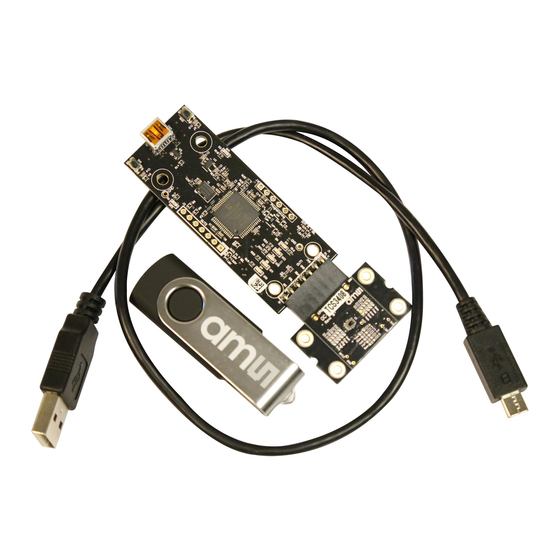

- Page 3 Out of the Box For a detailed description of the TCS33408 ALS/Color Sensor with Selective Flicker Detection Evaluation Kit, please refer to User Guide: ● UG000450 Each TCS3408 Evaluation Kit comes with the following components: Figure 1 : Evaluation Kit Contents Item Description...
- Page 4 Flash Drive will commonly be assigned the next available drive letter for example C: hard drive, D: CD-ROM, E: flash drive The Setup Wizard will open and guide you through the installation of the TCS3408 host software, (Figure 2 through Figure 8) At the end of the installation, click Finish to exit the setup.
- Page 5 TCS3408 ● ALS/Color Sensor with Selective Document Feedback Flicker Detection Software Installation Figure 6: Figure 7: Installation in Progress Information Screen Figure 8: Installation Completed Successfully Quick Start Guide • PUBLIC QG000141 • v1-00 • 2019-Aug-22 │ 5...
- Page 6 Flicker Detection Connect Hardware Connect Hardware Plug the TCS3408 Daughterboard into the Controller board (Figure 1). Always use ESD procedures when handling the EVM. Using the enclosed USB cable, plug the mini-B connector into the EVM module. Using the other end of the cable, plug the USB A-connector into a USB port on the computer.
- Page 7 Start the Application Start the Application To start the application select ams > TCS3408 EVM > TCS3408 EVM on the All Programs menu. The default installation directory depending on the device and the operating system you are using is: C:\Program Files\ams\TCS3408_EVM (Windows 32 bit operating systems) C:\Program Files (x86)\ams\TCS3408_EVM (Windows 64 bit operating systems) A different install path may be selected by the user during the install (Figure 4).
- Page 8 AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein.
