MotionProtect Fibra User Manual

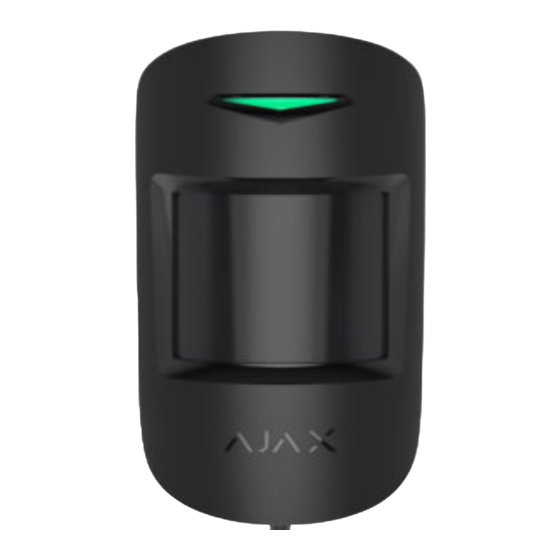

MotionProtect Fibra is a wired motion detector. It can recognize movement at a
distance of up to 12 meters. It does not react to animals up to 50 centimeters
tall and weighing up to 20 kilograms when properly installed and con gured. It is
intended for indoor installation.
The detector is compatible with
other
hubs radio signal range extenders ocBridge Plus
Integration with other security systems is also not provided
MotionProtect Fibra only works as a part of the Ajax security system,
communicating with the hub via the secure Fibra protocol. The wired connection
range is up to 2000 meters when connected via twisted pair U/UTP cat.5.
MotionProtect Fibra is the device of the new Fibra wired product line. Such
devices can only be purchased, installed and administered by accredited Ajax
partners.
Updated March 11, 2022
Hub Hybrid (2G)
,
and
Hub Hybrid (4G)
,
, and
uartBridge
. Connection to
is not provided.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionProtect Fibra and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX MotionProtect Fibra

Summary of Contents for AJAX MotionProtect Fibra

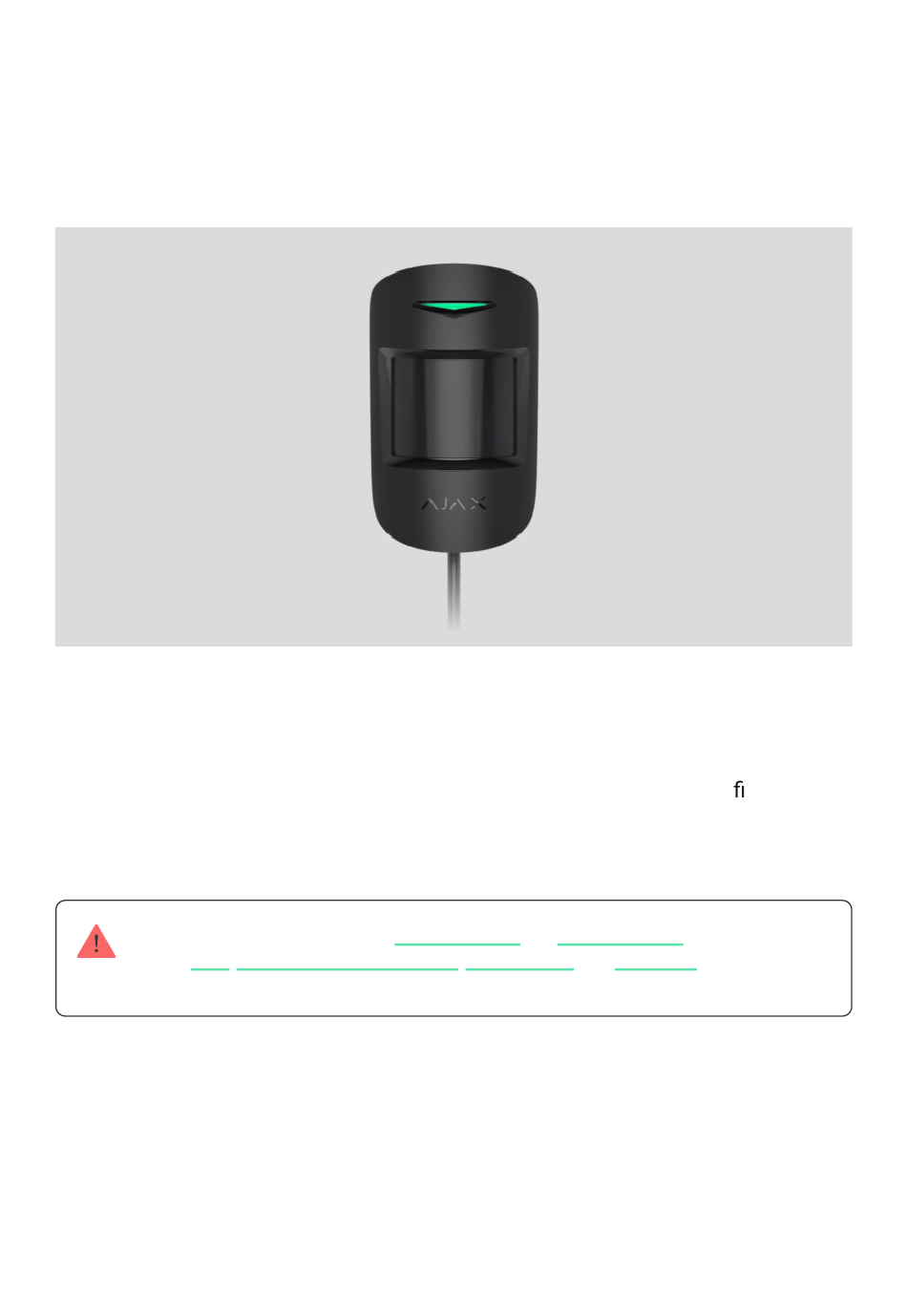

  • Page 1 MotionProtect Fibra User Manual Updated March 11, 2022 MotionProtect Fibra is a wired motion detector. It can recognize movement at a distance of up to 12 meters. It does not react to animals up to 50 centimeters tall and weighing up to 20 kilograms when properly installed and con gured. It is intended for indoor installation.

  • Page 2: Functional Elements

    . Triggers when an attempt is made to detach the detector from the surface or remove the mounting panel. 8. QR code. Used to connect the detector to the Ajax security system. 9. Terminal block connection socket. 10. Terminal block for detector connection.
  • Page 3 MotionProtect Fibra is a wired motion detector. Using IR sensors, the detector can identify intrusions by detecting moving objects with temperatures close to the human body. When an armed detector identi es motion, it instantly sends an alarm to the...

  • Page 4: Pet Immunity

    More about Fibra protocol (in progress) Pet immunity When properly installed and con gured, MotionProtect Fibra does not react to animals up to 50 centimeters tall and weighing up to 20 kilograms. The detector must be installed at a height of 2.4 meters without any obstruction to its view —...
  • Page 5 Addressability of each Ajax device allows you to send not only events to the PRO Desktop or to the CMS but also the type of the device, the name of the device, and the virtual room to which the detector is assigned.

  • Page 6: Detector Placement

    Consider the placement recommendations when designing your facility’s security system. Design and installation of the security system should be carried out by professionals. A list of authorized o cial Ajax partners is available here Design and preparation For the system to work correctly, it is important to properly design the project and install all devices correctly.
  • Page 7 For facilities that are under construction or renovation, cables are laid after the main wiring of the facility. Use protective tubes to organize and secure the wires; ties, clips, and staples can be used to anchor them. When laying wires externally (without mounting them inside the walls), use an electric channel raceway.

  • Page 8: Detection Zone

    The signal strength is in uenced by the following factors: the number of devices connected to one bus, the length and type of cable, and the proper connection of the wires to terminals. Check the Fibra signal strength before nal installation of the detector. With a signal strength of one or zero bars, we do not guarantee stable operation of the device.
  • Page 9 Horizontal detector viewing angle Vertical detector viewing angle Do not install the detector 1. Outdoors. This can lead to false alarms and detector failure. 2. Facing the window to avoid direct sun rays hitting the detector lens. This can lead to false alarms. 3.

  • Page 10: Installation And Connection

    This could damage the detector. Installation and connection Before installing MotionProtect Fibra, make sure that you have selected the optimal location and that it meets the conditions of this manual. Wires must be hidden from view and located in a place that is di cult for intruders to access to reduce the likelihood of sabotage.
  • Page 11 +24V — power supply input А, B — signal terminals GND — ground 3. Remove the SmartBracket mounting panel from the detector and carefully break out the perforated part to lead the cable out. If you want to lead the wire out from the bottom or the side of the detector, drill a suitable hole in the SmartBracket panel.
  • Page 12 6. If the detector is not the last in the connection line, prepare and wire the cable for the next detector to the MotionProtect Fibra terminals in advance. 7. If the detector is the last in the line, install a termination resistor at the end of the connecting line in case the Star connection method is in place.
  • Page 13 Adding to the system The detector is only compatible with Hub Hybrid (2G) and Hub Hybrid (4G). Adding and con guring Fibra devices is only possible through the Ajax PRO app by a user with administrator rights. Types of accounts and their rights Before adding a device 1.
  • Page 14 How to add MotionProtect Fibra There are two ways to add devices: manually and automatically. To add a detector manually: 1. Open the  PRO version of the app . Select the hub you want to add MotionProtect Fibra to. 2. Go to the Devices tab and click Add device.
  • Page 15 detector you’re adding, how to name it, and which room and group it should be assigned to. To add a detector: 1. Click on the device in the list. 2. Create a name. 3. Specify the room and the security group (if enabled). 4.
  • Page 16 MotionProtect Fibra only works with one hub. When connected to a new hub, the detector stops exchanging commands with the old one. Once added to a new hub, MotionProtect Fibra is not removed from the list of devices of the old hub. This must be done through the Ajax app.
  • Page 17 Entry and/or exit delay is enabled. Learn more MotionProtect Fibra will work when the Night Mode is enabled. Learn more MotionProtect Fibra has detected motion. The detector identi es motion only in the armed mode. MotionProtect Fibra is temporarily disabled. Learn more MotionProtect Fibra has been deactivated due to exceeding the number of alarms.
  • Page 18 The value is updated as soon as the detector identi es a temperature change of at least 1°C. Signal strength between the hub and MotionProtect Fibra. Recommended values — 2 —3 bars. Fibra signal strength Fibra — protocol for transmitting MotionProtect...
  • Page 19 system after entering the secured area. Learn more Delay time when leaving (5 to 120 seconds). Delay when leaving (arming delay) is the time the user has to leave the secured area after Delay When Leaving, sec arming. Learn more Delay time when entering in the Night mode.
  • Page 20 The number of the hub bus the detector is Bus № physically connected to. Settings To change the detector settings in the Ajax app: 1. Go to the Devices tab 2. Choose MotionProtect Fibra from the list. 3. Go to Settings by clicking on the gear icon.
  • Page 21 The name can contain up to 12 Cyrillic characters or up to 24 Latin characters. Selecting the virtual room to which MotionProtect Fibra is assigned. Room The room name is displayed in the text of SMS and noti cations iin the event feed.
  • Page 22 What Is Delay When Leaving When off, the detector’s LED will not alert you Alarm LED indication about an alarm and a tamper triggering. Sensitivity level of the motion detector. The choice depends on the type of the object, the presence of probable sources of false alarms, and the type of the protected area: Low —...

  • Page 23: Functionality Testing

    Learn more Opens MotionProtect Fibra User Manual in the User Manual Ajax app. Allows to disablet the device without removing it from the system. Two options are available: Entirely — the device will not execute commands or participate in automation scenarios.

  • Page 24: Maintenance

    The Ajax security system provides several types of tests that help you make sure that installation points of devices are selected correctly. MotionProtect Fibra tests do not start straight away but begin no later than a single hub- detector ping period (36 seconds under default settings of the hub). You can change the ping period of devices in the Fibra menu of the hub settings.

  • Page 25: Technical Speci Cations

    Warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
