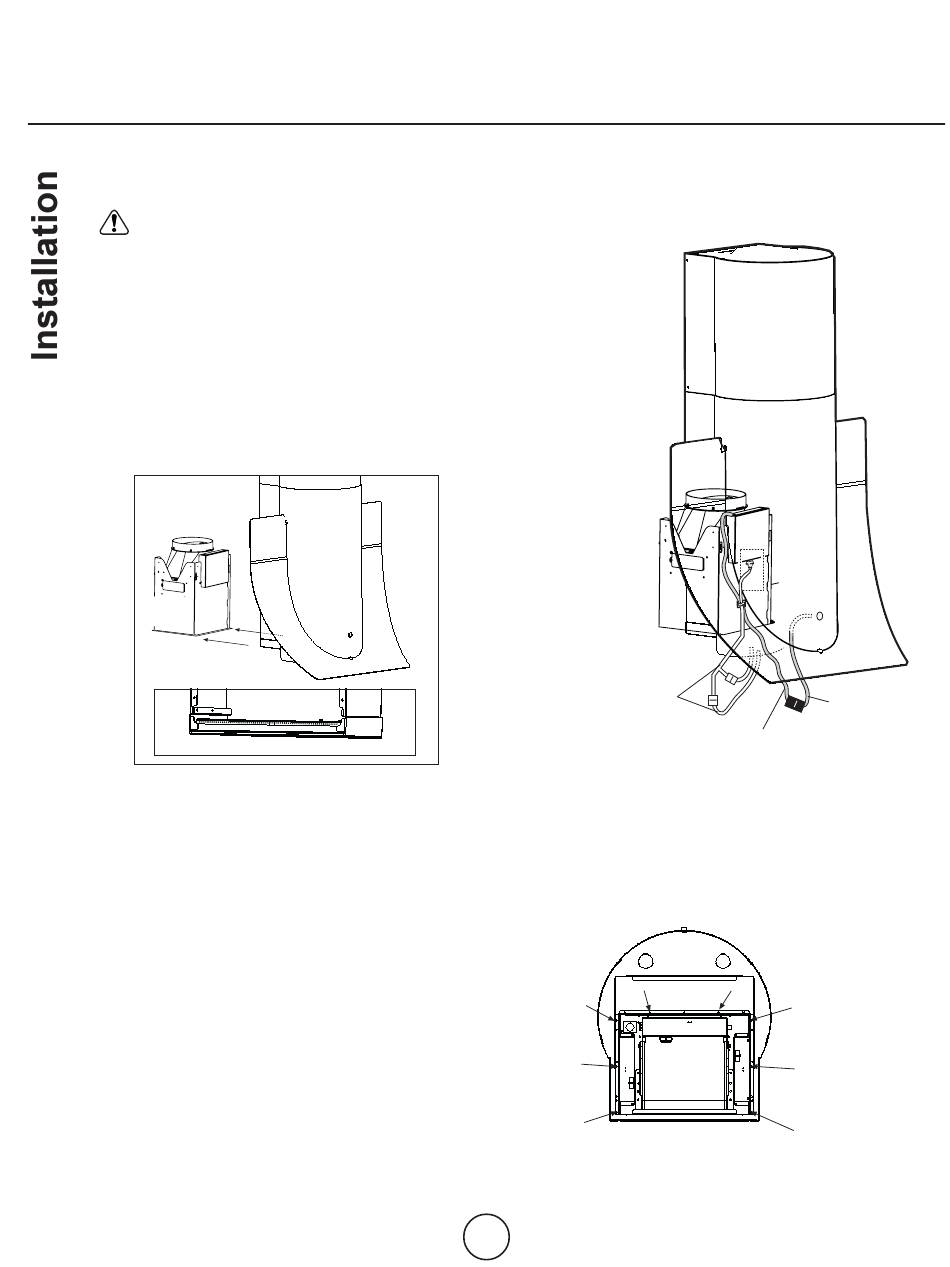

22. Assemble the duct covers (canopy) with the integral
ventilator housing.
WARNING
Excessive Weight Hazard
Use two or more people to move and install range
hood.
Failure to do so can result in back or other injury.
a. Partially thread the duct covers onto the integral
ventilator housing, so that from the grease filter
housing electronic box and cables are acces-
sible.
Note: temporarily fix the duct covers to inte-
gral ventilator housing with two screws.
Integral
motor
housing
FRONT VIEW
Rails
location
REAR VIEW
Duct
covers
1 4
b. Make all cable connections:
Lamps
connections
Connection
Plate from
electronic box
c. Fold all cables inside and fasten the hood to the
motor unit using 8 screws from the bottom
(check that cables doesn't interfere with blower
unit housing and/or hood canopy).
BOTTOM VIEW
Control Ball
Molex plug
Fastener
locations
