Installing the
RoboSHOT 30E-M PTZ Camera
This guide contains only the information required to install this product. Refer to the Complete Manual
for the RoboSHOT 30E-M PTZ Camera for information on configuring and using this product.
Overview
This guide covers the RoboSHOT
n
North America – 999-21132-000 (black), 999-21132-000W (white)
Europe and UK – 999-21132-001 (black), 999-21132-001W (white)
n
Australia and New Zealand – 999-21132-009 (black), 999-21132-
n
009W (white)
What's in this guide
This guide covers:
n
Tips for a successful installation
Instructions for installing the camera mount
n
Camera power-on
n
If you are responsible for configuring the equipment after installing it,
please use the Complete Manual. It includes all the information in this guide, plus information on
configuring, operating, and troubleshooting the camera.
Features
30x zoom – ideal for larger conference rooms, boardrooms, and training rooms
n
n
Certified for Microsoft Teams
1/2.5 type Exmor R™ high-speed, low-noise image sensor
n
n
Smooth, silent direct-drive motors for precise pan and tilt movements at up to 120° per second
Tri-Synchronous Motion™ simultaneous-arrival pan/tilt/zoom movement between presets
n
Universal Video Class (UVC) drivers supported in Windows
n
systems, compatible with most UC conferencing applications
Command Line Interface SHell (CLISH) and VISCA control for ease of integration
n
Enterprise-class IT administrative capabilities with full web controls for remote management
n
Presenter-friendly IR remote control
n
Document Number 411-0064-31 Rev A – April 2023
®
30E-M PTZ camera:
®
®
®
, macOS
, and Linux operating
Advertisement
Table of Contents
Related Manuals for LEGRAND VADDIO RoboSHOT 30E-M
Summary of Contents for LEGRAND VADDIO RoboSHOT 30E-M

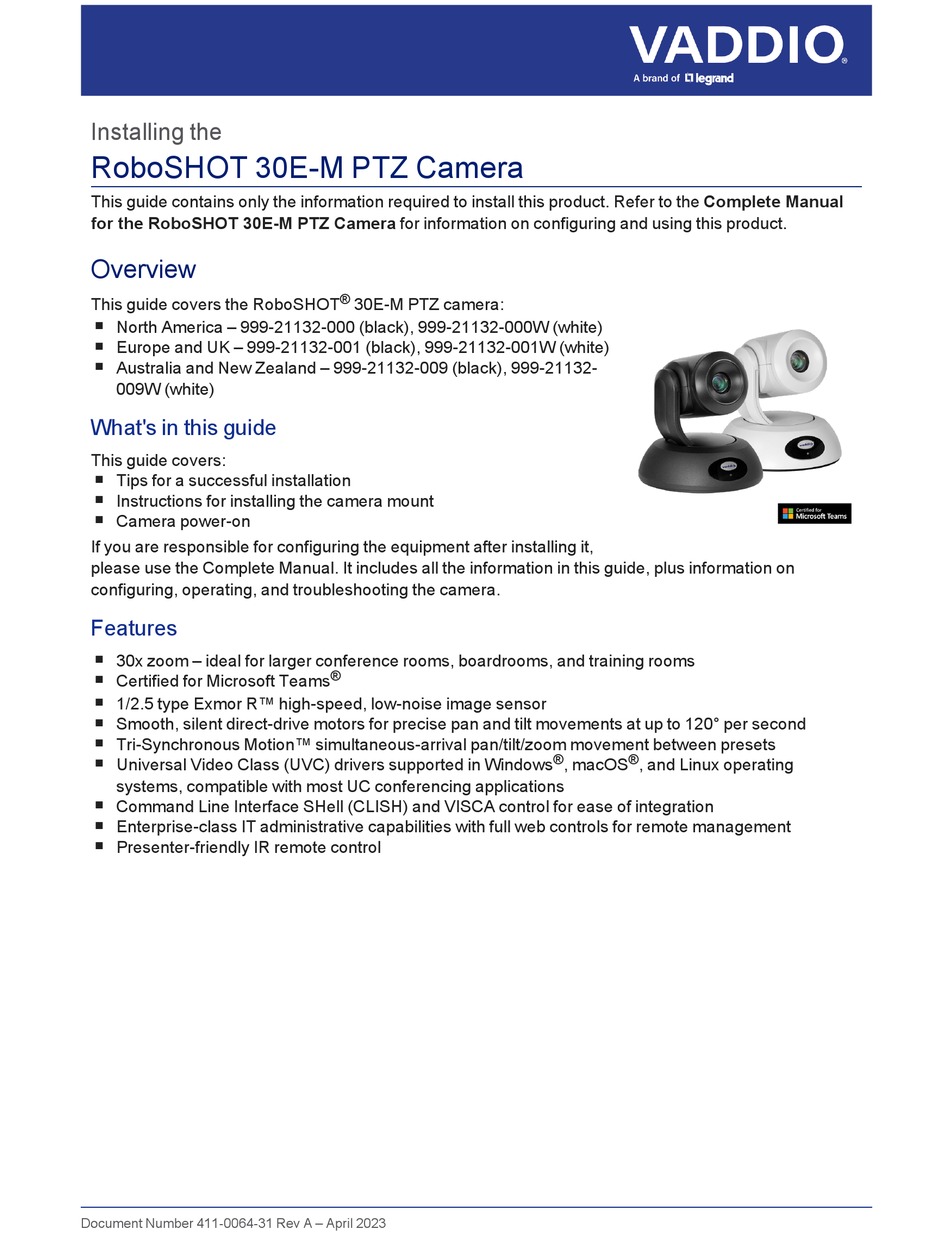

- Page 1 Installing the RoboSHOT 30E-M PTZ Camera This guide contains only the information required to install this product. Refer to the Complete Manual for the RoboSHOT 30E-M PTZ Camera for information on configuring and using this product. Overview ® This guide covers the RoboSHOT 30E-M PTZ camera: North America –...
-
Page 2: A Quick Look At The Camera
Installation Guide for the RoboSHOT 30E-M PTZ Camera A quick look at the camera This section covers the physical features of the camera. Front of the camera The camera is available in black or white. Camera and zoom lens – 30x zoom; ideal for larger rooms. IR sensor –... -
Page 3: Back Of The Camera
Installation Guide for the RoboSHOT 30E-M PTZ Camera Back of the camera Network PoE+ – RJ-45 connector. Connect to the network and to power via a PoE+ switch or the Power and Data Out port of the mid-span PoE+ power injector. Provides power and network access for camera control. -
Page 4: Don't Void Your Warranty
Installation Guide for the RoboSHOT 30E-M PTZ Camera Connections This section covers: Selecting the location for the camera Cabling notes Connection diagrams Don’t void your warranty! Caution This product is for indoor use. Do not install it outdoors or in a humid environment without the appropriate protective enclosure. -
Page 5: Pre-Installation Functional Check
Installation Guide for the RoboSHOT 30E-M PTZ Camera Basic connections for conferencing This diagram shows a basic conferencing configuration. The PoE+ switch is not required. You can connect the camera to the network and to power using the mid- span power injector included with the camera. Pre-installation functional check If you're installing the camera where it's hard to reach, you may want to verify functionality before you install it. -
Page 6: Installing The Wall Mount
Installation Guide for the RoboSHOT 30E-M PTZ Camera Installing the wall mount The camera is shipped with a wall mount. Other mounting options are available as well. Contact us if you don’t have the camera mount you need. You can install the camera wall mount to a 2-gang wall box or directly to the drywall. If you mount it to drywall, use the wall anchors provided with the wall mount. -
Page 7: Installing The Camera
Installation Guide for the RoboSHOT 30E-M PTZ Camera Installing the camera 1. Route the cables through the opening in the mounting shelf and connect them to the camera. 2. Place the camera on the mount. 3. Attach the camera to the mount using the mounting screw supplied with the camera. Image for illustration only;... -
Page 8: Powering Up The Camera
