Page 1: User Manual
CM7000 Outdoor Camera User Manual 1308235 Rev.B 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page... - Page 2 Keep the device away from excessive heat and humidity and keep the device free from vibration and dust. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us...
-
Page 3: Table Of Contents
ABLE OF ONTENTS CM7000 User Manual ........................4 QUIPMENT ACKAGE ONTENTS INSTALL CM7000 ..........................4 ING THE CM7000 S ..........................5 PECIFICATIONS ................6 INIMUM ECOMMENDED OMPUTER YSTEM EQUIREMENT DHCP ) ........... 6 ONNECT THE AMERA TO NETWORK WITH SERVER... -
Page 4: Equipment Package Contents

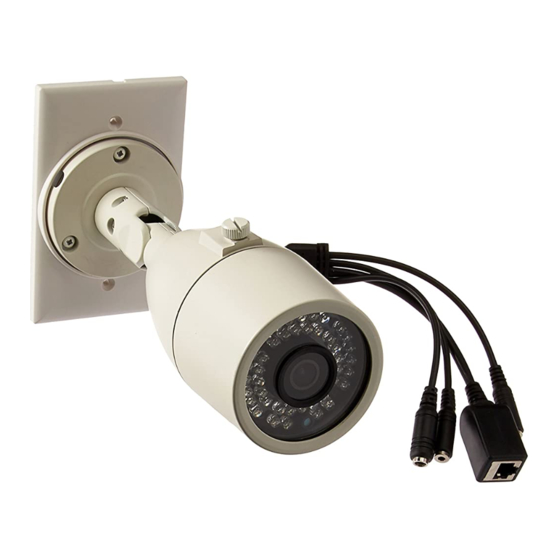

Run Cat 5 cable from enclosure mounted device supplying power over Ethernet (PoE) to single gang box at intended camera location. The Legrand DA2400 and DA1458 are suitable PoE products. Attach Cat 5 cable with Ethernet PoE to Camera cable RJ45 jack and feed Camera cables through hole in supplied Wallplate, and mount Wallplate to single gang box using rubber gasket. -
Page 5: Cm7000 Specifications
FCC Part 15,Subpart B Class B; EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 60950-1; C-tick AS/NZS CISPR 22, CISPR 24; IP66 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 6: Minimum Recommended Computer System Requirement
Support for DirectX 8.0 and above. Connect the Camera to network with DHCP server (Recommended) The CM7000 by default is enabled as a DHCP client, it will automatically get an IP address from the network (router) with DHCP server running. -
Page 7: Cm7000 Home Web Page
Firefox, Chrome & Safari will give you an image similar to mjpeg files. above 1. Click the “CM7000 Setup” icon (lower left) and the browser 1. If using Internet Explorer change the address to ((Camera IP Address)/index.html) will ask for credentials to authorize configuration. - Page 8 Internet Explorer: CM7000 Home Web Page (IP Address/index.html) Figure 1: Home Page of the CM7000 Control Console (and other buttons): Not Applicable for this camera. Real Size/Window Size: Click to change from real image size to window image size. BRIGHTNESS: Slide to adjust the image or video brightness.
-
Page 9: Connect To The Camera Using Static Ip
The default IP, if no DHCP server; or DHCP offer time out (3 minutes), is 192.168.1.168 1. Connect the computer via an Ethernet cable directly to the IP camera CM7000. 2. Configure the computer using Static IP: 192.168.1.XXX (1<XXX<255, but NOT 168) and configure the “Subnet mask”... -
Page 10: System Settings Page
Pull down to select date format displayed on video screen NOTE: button has to be clicked to save all the changes made to the device. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 11: Video & Audio Settings Page
Video & Audio Settings Page Figure 3: Video & Audio Settings Page 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page... - Page 12 H.264 is the high resolution Codec, while MJPEG is the Codec used automatically for remote smartphone viewing. If MJPEG selected, reduce max. frame rate to min. value to save bandwidth and get better image 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us...
-
Page 13: Cmos Settings Page
Camera Color Mode: Color, Black/White, Auto (Default). NOTE: Auto option recommended for Shutter Speed, IR LED Setting, IR CUT Setting and Color Mode. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 14: Networking Settings Page
For example, the HTTP port changed to 8088, the RTSP port should be 10088, both 8088 and 10088 should be configured for port forwarding in order for remote camera video access. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 15: Ddns Settings Page
Stun server FQDN or IP. If the DDNS device is behind a non-symmetric router, the STUN server can help to penetrate & resolve NAT issue. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 16: Sip Settings Page
SIP Settings Page The CM7000 be configured as SIP endpoint to call out when alarm triggered; or allow permitted numbers to call in to check the video. Figure 7: SIP Setting Page 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. - Page 17 Caller or call receiver number when alarm call triggered. White List/Phone Number: Phone numbers allowed to call into the camera. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page...
-
Page 18: Status Page
When SIP account registered, the status will display “Online” in Green. When SIP account unregistered, the status will display “Offline” in Red, as shown. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. -
Page 19: Advanced Settings Explanation
When checked, no security is used. Any person can view the camera if they know the IP or FQDN of the camera, but can NOT change anything, view ONLY. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 20: Maintenance Page
Time interval for automatic upgrade, default 10080 Automatic Upgrade: Check to enable automatic firmware upgrade and Provisioning (XML based only). 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page... -
Page 21: Smtp Settings Page (Email Alarm)
Click “Test” after configuration, if setting is correct, a test email will send out and “Test successful!” yellow bar will display 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 22: Ftp Settings Page (Upload Alarm)
Click “Test” after configuration, if setting is correct, a test FTP operation will be performed and “Test successful!” yellow bar will display if the operation is successful. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us... -
Page 23: Alarm Server Settings Page (Upload Alarm To Supported Vms Or Http Server)
URL: URL of the Server User Name: User ID from that Server Password: Password for that User ID 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page... -
Page 24: Periodic Snapshot
FTP Upload: If checked, enables FTP upload for periodic snapshot SMTP Upload: If checked, enables SMTP upload for periodic snapshot 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page... -
Page 25: Motion Detection Configuration Page (Set Alarm)
Motion Detection Configuration Page (Set Alarm) Figure 15-1: Motion Detection Configuration Page 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page... - Page 26 As shown in Figure 15-2, user can configure the Motion Detection Region with related Start and Stop time to control the motion detection operation. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved.
-
Page 27: Syslog Settings Page (Troubleshooting)
Syslog server IP or Domain Name Syslog Level: Level of syslog message sent to the syslog server: None, Debug, Info, Warning, Error. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us Page... -
Page 28: Ip Camera Faq
7. Why is audio missing from the recorded video when an alarm triggered? To confirm to outdoor standard of IP66, the CM7000 does NOT have a microphone installed although it has the interface in its PCB board. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand... - Page 29 If the web port is 80, then the RTSP port is 554. If the web port is not 80, then the RTSP port equals the web port +2000. For example, if the web port is 88, then the RTSP port will be 2088. 301 Fulling Mill Road, Suite G ©Copyright 2014 by Legrand Middletown, PA 17057 All Rights Reserved. (800)-321-2343 www.legrand.us...
