IP Modular camera 1,3 MP
4 306 60
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 306 60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND 4 306 60

Summary of Contents for LEGRAND 4 306 60

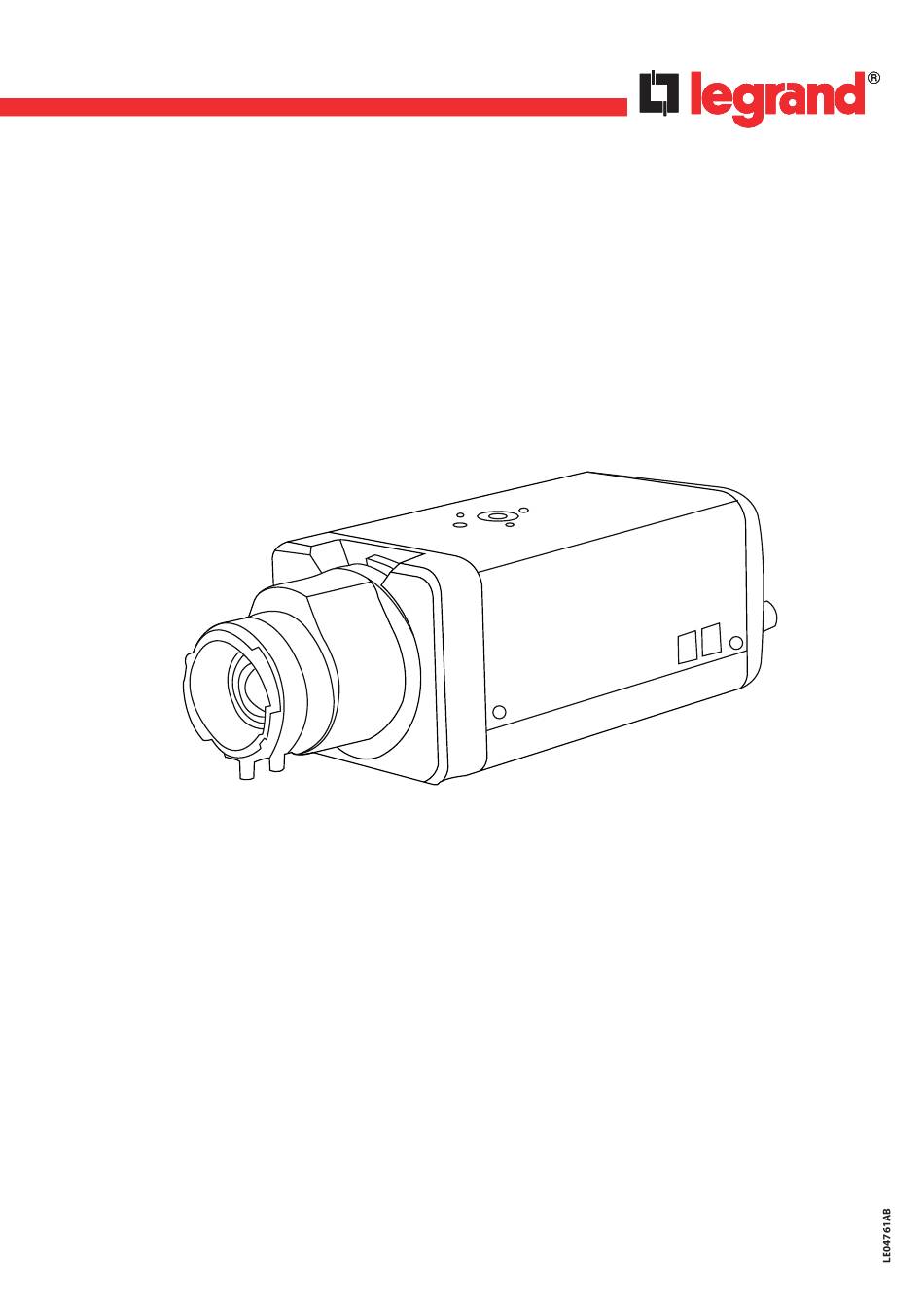

  • Page 1 • IP Modular camera 1,3 MP 4 306 60 USER MANUAL...

  • Page 2: Table Of Contents

    Indice 1 Accessories ........................... 3 2 General Introduction ........................ 4 2.1 Feature..................................4 2.2 Specifications ................................5 3 Framework ........................... 7 3.1 Rear Panel ................................7 3.2 Side Panel ................................9 3.3 Front Panel ................................9 4 Installation ........................... 10 4.1 Install Auto iris Lens...............................10 4.2 Install Manual Lens..............................10 4.3 Remove Lens ................................11 4.4 SD Card Installation ...............................11...

  • Page 3: Accessories

    1 Accessories Name IP Camera C/CS adapter Quick Start Guide 12V power adapter...

  • Page 4: General Introduction

    2 General Introduction 2.1 Features Different user rights for each group, one user belongs to one group. User Management The user right can not exceed the group right. Data Transmission Support cable network data transmission via Ethernet. Support central server backup function in accordance with configuration and setup in alarm or schedule setting.

  • Page 5: Specifications

    2.2 Specifications Please refer to the following sheet for IPC performance specification. Model Ref. 4 360 61 Parameter Main Processor TI Da vinci high performance DSP Embedded LINUX Support real-time network, local record, and remote operation at the same System resources time.
  • Page 6 Model Ref. 4 360 61 Parameter Alarm Input 2-channel input 1-channel output (NO-NC). Record Priority Manual>Alarm >Motion detect>Schedule. Support local data search via time/date, event type (alarm, motion detect, Record Search Mode external alarm) and file type (record/image). Local Storage Support local SD card hot swap.

  • Page 7: Framework

    3 Framework 3.1 Rear Panel The rear panel is shown as below. Refer to the following sheet for detailed information. Interface Name Connector Function VIDEO OUT Video output port Output analog video signal. Power port. AC 24V/ DC 12V Power port Input 12V DC or 24V AC.
  • Page 8 Interface Name Connector Function RS232 port RS232 RX port (receive). RS232 TX port (send). RS232 Ground port. Connect this port to manage ICR D/N Switch Port switch external input. Restore factory default setup. When system is running normally (power indication light is red), press RESET RESET button the RESET button for at least 5 s,...

  • Page 9: Side Panel

    3.2 Side Panel The side panel is shown as below. 3.3 Front panel The front panel is shown as below.

  • Page 10: Installation

    4 Installation 4.1 Install Auto iris Lens Follow the steps listed below for auto iris lens installation. 1- Remove the sensor protection cap of the device, and then line up the lens to the proper installation position. Turn clockwise until the lens is fixed firmly. 2- Insert the lens cable socket to the auto lens connector in the side panel.

  • Page 11: Remove Lens

    4.3 Remove Lens Follow the steps listed below to remove lens. 1- Turn the lens counter clockwise and then remove it from the camera. 2- Unplug the auto lens cable socket from the auto lens connector. 3- If there is no lens, put the sensor protection cap back to protect the sensor. 4.4 SD Card Installation Follow the steps listed below to install SD card.

  • Page 12: Remove Sd Card

    4.5 Remove SD card Follow the steps listed below to remove SD card. 1- Use the screwdriver to loosen the screw of SD card protection cap in the rear panel. Remove the cap from the camera. 2- Follow the SD card direction to remove the SD card. 3- Insert the SD card protection cap.

  • Page 13: Factory Default Setup

    5 Factory Default Setup Please refer to the following sheet for factory default setup information. Function configuration type Item Name Default setup Date format Y-M-D Disable by default Date separator ‘ _ ’ Time format General Setup Language English When HDD is full Overwrite Record duration 8 min...
  • Page 14 Function configuration type Item Name Default setup Period 1 : Enable motion detection/ Snapshot alarm Record setup Time Setup Week Sunday Option COM01 Function Console Data bit COM Setup Stop bit Baud rate 115200 Parity None Ethernet Port 01 DHCP Disable IP address 192.168.1.108...
  • Page 15 Function configuration type Item Name Default setup Event type Motion detection Channel Ch01, Disable Sensitivity Period: Start time 0:00:00 Time period setup End time:23:59:59 Period 1:enable Week: Sunday Anti-dither 5 seconds Video detection Alarm output Disable Alarm latch 10 seconds Record channel Disable Record latch...
  • Page 16 Function configuration type Item Name Default setup Snapshot mode Snapshot_Timing Frame rate 1f/s Snapshot Resolution 1080P Advanced Quality Auto reboot 2.00 each day Auto maintain Auto delete old Never files Channel Exposure Mode Auto Night Vision Auto Backlight Compensation Camera config Auto Iris Scene Mode Auto...

  • Page 17: Connecting To A Device And Opening The Web Application

    6 Connecting to a device and opening the web application 6.1 IE options configuration for config tool and and IE This device supports web access and management via PC. System pops up warning information to ask you whether install control “webrec.cab” or not. Click “OK” button, system can automatically install the control.

  • Page 18: Connection With Mozilla Firefox Or Google Chrome

    6.1.1 Connection with the Search Tool Refer to chapter “5.2.1 Connecting to the device’s web interface” 6.1.2 Connection with Internet Explorer IP camera factory default setup: : - IP address: 192.168.1.108 - User name: admin - Password: admin Open Internet Explorer and input IP camera address in the address bar. For example, if your camera IP is 192.168.1.108, input http://192.168.1.108 in IE address bar.

  • Page 19: Quick Configuration Tool

    7 Quick Configuration Tool 7.1 Introduction Quick configuration tool is used to search for current IP address, modify IP address. It can also be used to perform a software upgrade or to modify settings. This tool only applies to the IP addresses in the same network segment. Before using the Quick Configuration Tool, please check that this software is in updated version.
  • Page 20 2- Select “Open Device Web” item to go to the web interface: If you can’t connect, ckeck you internet explorer security settings as described in chapter 4.

  • Page 21: Connecting With The Configuration Tool

    7.3 Connecting with the configuration tool (to change the IP address or upgrade the device software. To find devices connected to the network, click the “Refresh” button. The tool will search for devices connected to the network and display them in the form of the list % "...
  • Page 22 (8) “Upgrade” button opens the interface to upgrade the device firmware: Description Select a check box of a device or several devices with same commercial references into this list. Click “Open” button and select the new firmware in the PC directory. Click “Upgrade”...

  • Page 23: Main Interface Of The Tool

    7.4 Main interface of the tool 7.4.1 Network settings Functions Description DHCP Enable Enables or disables the DHCP function. IPv4/IPv6 Select IPv4 or IPv6 in the com- bo list. The IP addresses can be changed. IP Address IP address of the device. Subnet Mask Subnet mask of the device.

  • Page 24: Resetting The Camera

    7.4.3 System Upgrade Before using the Camera, please install its updated software version. Functions Description Upgrade File/Open Click here to select the file to be upgraded Current Progress/Upgrade Click here to start the upgra- ding procedure Return Return to the search inter- face Steps to upgrade the intertnal software - Click the “Open”...
