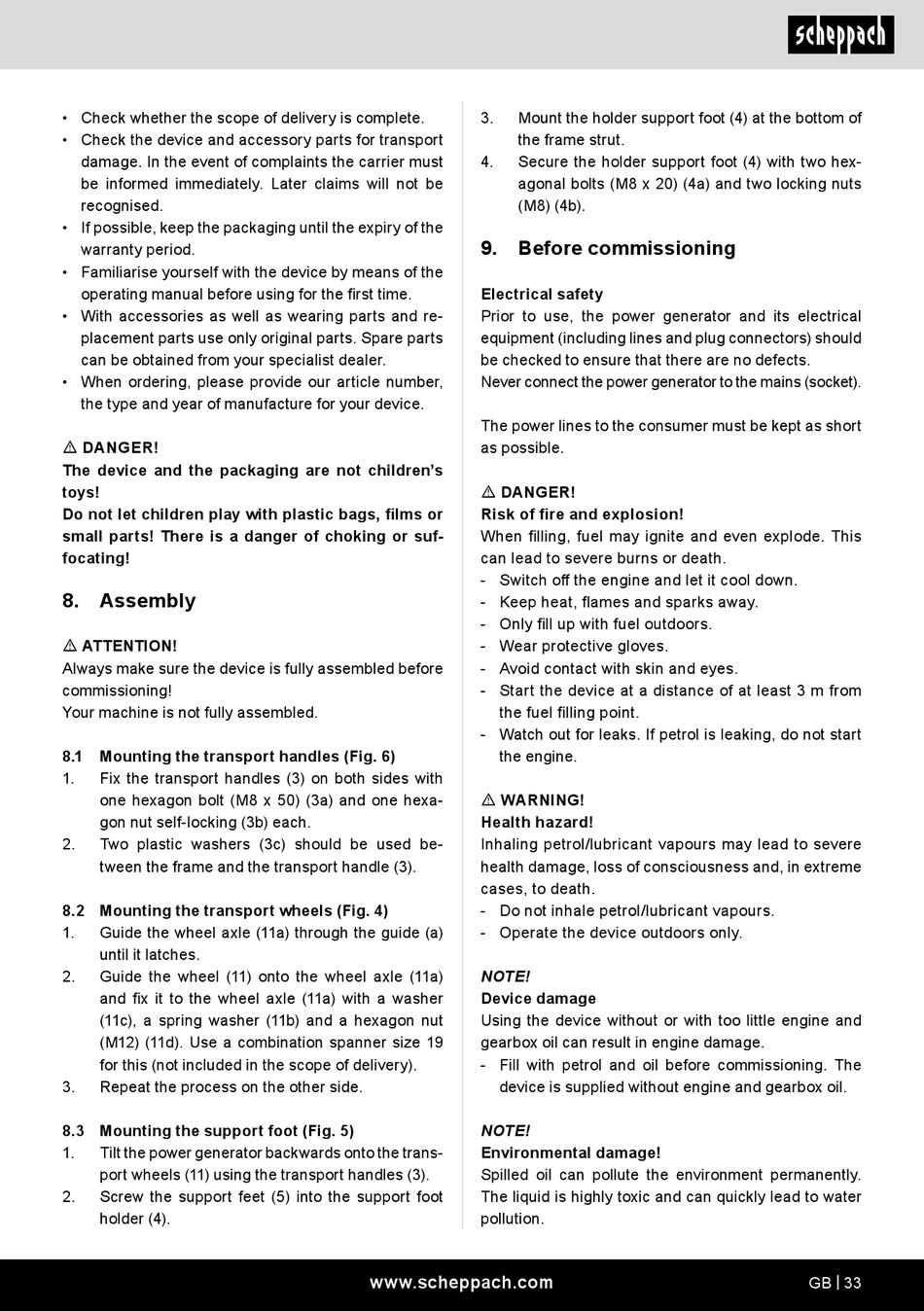

• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering, please provide our article number,
the type and year of manufacture for your device.
m DANGER!
The device and the packaging are not children's
toys!
Do not let children play with plastic bags, films or
small parts! There is a danger of choking or suf-
focating!

8. Assembly

m ATTENTION!
Always make sure the device is fully assembled before
commissioning!
Your machine is not fully assembled.
8.1 Mounting the transport handles (Fig. 6)
1. Fix the transport handles (3) on both sides with
one hexagon bolt (M8 x 50) (3a) and one hexa-
gon nut self­locking (3b) each.
2. Two plastic washers (3c) should be used be-
tween the frame and the transport handle (3).
8.2 Mounting the transport wheels (Fig. 4)
1. Guide the wheel axle (11a) through the guide (a)
until it latches.
2. Guide the wheel (11) onto the wheel axle (11a)
and fix it to the wheel axle (11a) with a washer
(11c), a spring washer (11b) and a hexagon nut
(M12) (11d). Use a combination spanner size 19
for this (not included in the scope of delivery).
3. Repeat the process on the other side.
8.3 Mounting the support foot (Fig. 5)
1. Tilt the power generator backwards onto the trans-
port wheels (11) using the transport handles (3).
2. Screw the support feet (5) into the support foot
holder (4).
3. Mount the holder support foot (4) at the bottom of
the frame strut.
4. Secure the holder support foot (4) with two hex-
agonal bolts (M8 x 20) (4a) and two locking nuts
(M8) (4b).
9.

Before commissioning

Electrical safety
Prior to use, the power generator and its electrical
equipment (including lines and plug connectors) should
be checked to ensure that there are no defects.
Never connect the power generator to the mains (socket).
The power lines to the consumer must be kept as short
as possible.
m DANGER!
Risk of fire and explosion!
When filling, fuel may ignite and even explode. This
can lead to severe burns or death.
- Switch off the engine and let it cool down.
- Keep heat, flames and sparks away.
- Only fill up with fuel outdoors.
- Wear protective gloves.
- Avoid contact with skin and eyes.
- Start the device at a distance of at least 3 m from
the fuel filling point.
- Watch out for leaks. If petrol is leaking, do not start
the engine.
m WARNING!
Health hazard!
Inhaling petrol/lubricant vapours may lead to severe
health damage, loss of consciousness and, in extreme
cases, to death.
- Do not inhale petrol/lubricant vapours.
- Operate the device outdoors only.
NOTE!
Device damage
Using the device without or with too little engine and
gearbox oil can result in engine damage.
- Fill with petrol and oil before commissioning. The
device is supplied without engine and gearbox oil.
NOTE!
Environmental damage!
Spilled oil can pollute the environment permanently.
The liquid is highly toxic and can quickly lead to water
pollution.
